MP 38 (UT-05078) - Homelite 12" Multi Purpose Saw Carburetor - Fuel Tank Parts Diagram

12" Multi Purpose Saw

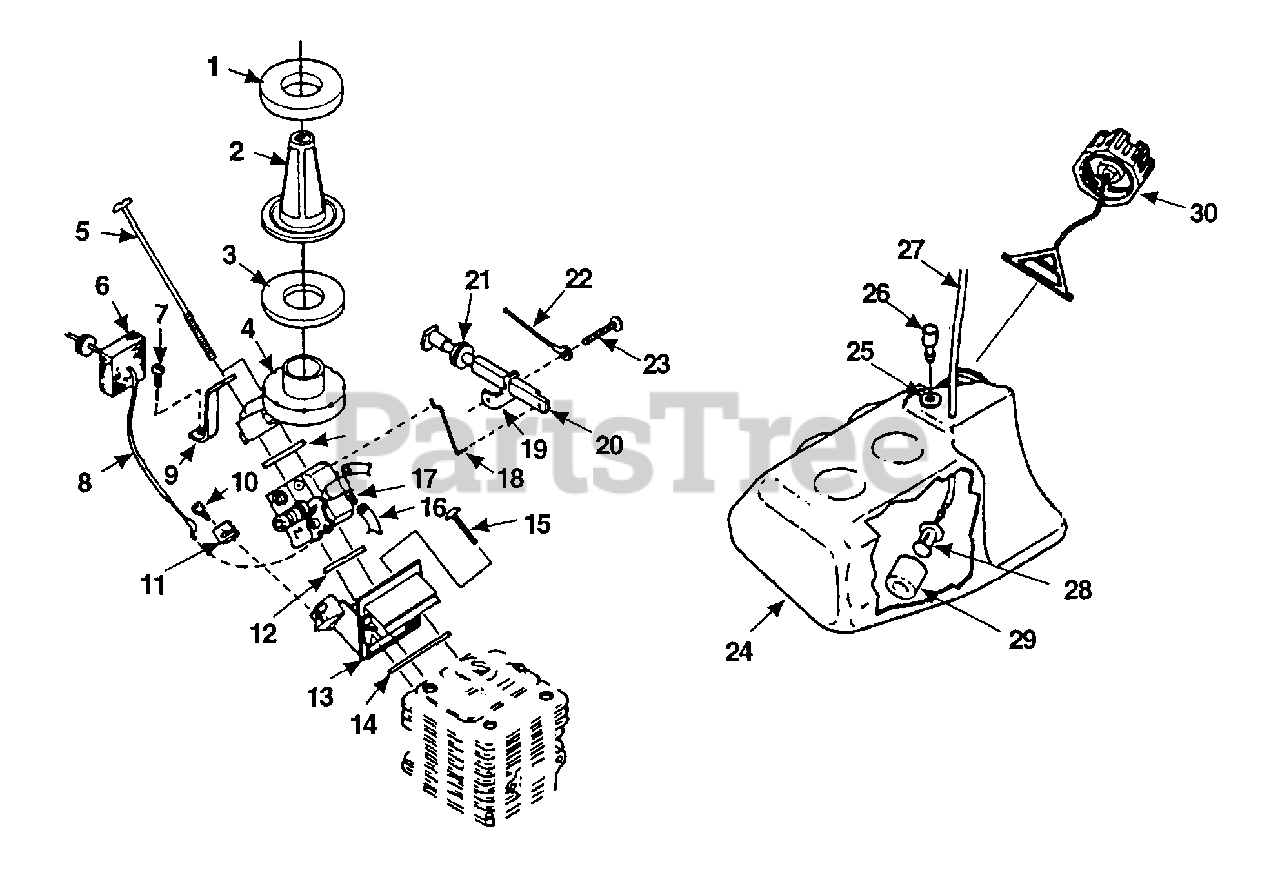

Carburetor - Fuel Tank Parts Diagram

  • Title
1

Homelite 02300

GASKET-Foam (1/4")
(Superseded to UP05621)

$

$

Not available

2

Homelite 02301

FILTER-Screen
(Superseded to UP05622)

$23.99

$

Usually ships in 3-7 days

0

3

Homelite 02302

GASKET Foam

$

$

Not available

4

Homelite A03272

ADAPTOR-Intake

$

$

Currently unavailable

5

Homelite 82582

SCREW-Truss Hd. (8-16 X 3 1/4")

Note: (Torque Specs 45 In/Lbs, [5 Nm])

$

$

Not available

6

Homelite 03758

PAD-Foam

$

$

Not available

7

Homelite 966201

SCREW-Torx (10-24 X 1/2")
(Superseded to UP07201)

Note: (Torque Specs 65 In/Lbs, [7.3 Nm])

$4.99

$

Usually ships in 3-7 days

0

8

Homelite A02315

CABLE-Throttle
(Superseded to UP07155)

$

$

Not available

9

Homelite 02313A

BRACKET-Air Intake
(Superseded to UP07100)

$

$

Not available

10

Homelite 82513

SCREW-Thread Form. (6-19 X 1/2")

Note: (Torque Specs 15 In/Lbs, [1.7 Nm])

$2.49

$

In Stock, Qty 5

0

11

Homelite 03455

BRACKET-Cable End

$

$

Not available

12

Homelite 02295

GASKET-Carburetor

$

$

Not available

13

Homelite 022961

ADAPTOR-Intake

$

$

Not available

14

Homelite 02297

GASKET-Adaptor

$

$

Not available

15

Homelite 82571

SCREW-Pan Hd. (10-24 X 1")
(Superseded to UP05543)

Note: (Torque Specs 45 In/Lbs, [5 Nm], Loctite Required RED 262)

$

$

Not available

16

Homelite 9315719

TUBING,Pulse line (4 3/4")

$

$

Not available

17

Homelite PA00032

CARBURETOR-Walbro
(Superseded to UP05844)

$

$

Not available

18

Homelite A06369

CHOKE LINK & RETAINER
(Superseded to UP07212)

$

$

Not available

19

Homelite 03333

BRACKET-Cable

$

$

Not available

20

Homelite 02314

ROD-Choke
(Superseded to UP05626)

$

$

Not available

21

Homelite 64862

GROMMET
(Superseded to 570219001)

$

$

Not available

22

Homelite A03556

GROUND WIRE

$

$

Not available

23

Homelite 82556

SCREW-Truss Hd. (10-24 X 1 1/4")

Note: (Torque Specs 55 In/Lbs, [6.2 Nm])

$2.49

$

Usually ships in 3-7 days

0

24

Homelite A03402A

TANK-Fuel
(Superseded to UP07139)

Note: (Includes 25-30)

$

$

Not available

25

Homelite 64862

GROMMET
(Superseded to 570219001)

$

$

Not available

26

Homelite A02294

FILTER SLEEVE
(Superseded to UP07070)

Note: (Complete)

$

$

Not available

27

Homelite 9477240

TUBING-Rubber (10")
(Superseded to UP05860)

$51.99

$

Usually ships in 3-7 days

0

28

Homelite A97700

FILTER-Fuel
(Superseded to UP06516)

Note: (Includes 29)

$

$

Not available

29

Homelite 592531A

FILTER-Fuel

$11.99

$

Usually ships in 3-7 days

0

30

Homelite A00904A

CAP-Tank (w/Retainer)
(Superseded to DA00904A)

$

$

Not available
