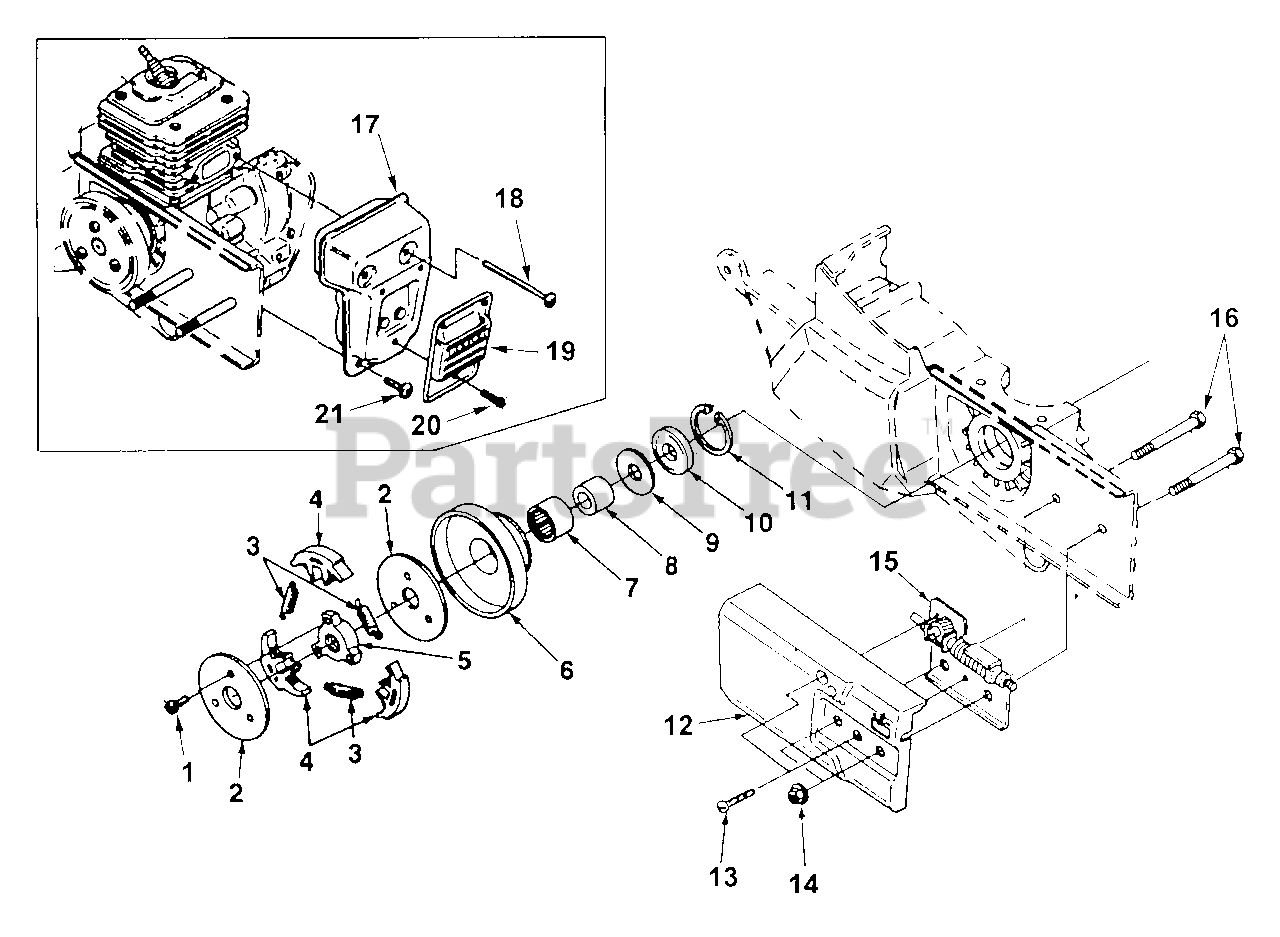

MP 38 (UT-05072) - Homelite 14" Multi Purpose Saw Clutch - Exhaust System Parts Diagram

14" Multi Purpose Saw

Clutch - Exhaust System Parts Diagram

  • Title

1

Homelite 82253

SCREW - Machine Hex Hd (8-32 x 3/8")

Note: Torque Specs: 55 In/Lbs; 6.2 Nm; BLUE 242 Locktite Required

$

$

Not available

2

Homelite 93628

COVER - Clutch

$

$

Not available

3

Homelite 93638A

SPRING - Clutch
(Superseded to UP06462)

$

$

Not available

4

Homelite 79239

SHOE - Clutch

$

$

Not available

5

Homelite 02334

CLUTCH - Spider

Note: Torque Specs: 400 In/Lbs; 45.2 Nm; RED 262 Locktite Required

$

$

Not available

6

Homelite A49543

PULLEY - Drum & Bearing
(Superseded to UP07077)

$

$

Not available

7

Homelite 46071

BEARING - Needle

$

$

Not available

8

Homelite 46070

RACE - Inner

$

$

Not available

9

Homelite 46135

WASHER - Thrust

$

$

Not available

10

Homelite 98197A

SEAL - Main
(Superseded to UP06470)

$

$

Not available

11

Homelite 289221

RETAINER - Bearing

$

$

Not available

12

Homelite A02329A

CLUTCH - Cover
(Superseded to UP07156)

$

$

Not available

13

Homelite 82575

SCREW - Taptite (8-32 x 5/8")
(Superseded to 660639001)

Note: Torque Specs: 20 In/Lbs; 2.2 Nm

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 81282

NUT - Hex Flange (5/16-18)
(Superseded to UP03492)

Note: Torque Specs: 140 In/Lbs; 15.8 Nm

$4.99

$

Usually ships in 3-7 days

0

15

Homelite A03879A

GEAR KIT
(Superseded to UP07101)

$

$

Not available

16

Homelite 02327

BOLT - Wheel Arm

$

$

Not available

17

Homelite A02287

MUFFLER
(Superseded to UP06363)

$

$

Not available

18

Homelite 82574

SCREW - Truss Hd (10-24 x 2 1/2")

Note: Torque Specs: 55 In/Lbs; 6.2 Nm

$

$

Not available

19

Homelite A98747

CAP - Muffler

$

$

Not available

20

Homelite 80983

SCREW - Machine Hex Hd (8-32 x 1/2")
(Superseded to 80560)

$

$

Not available

21

Homelite 966201

SCREW - Torx (10-24 x 1/2")
(Superseded to UP07201)

Note: Torque Specs: 55 In/Lbs; 6.2 Nm

$4.99

$

Usually ships in 3-7 days

0
