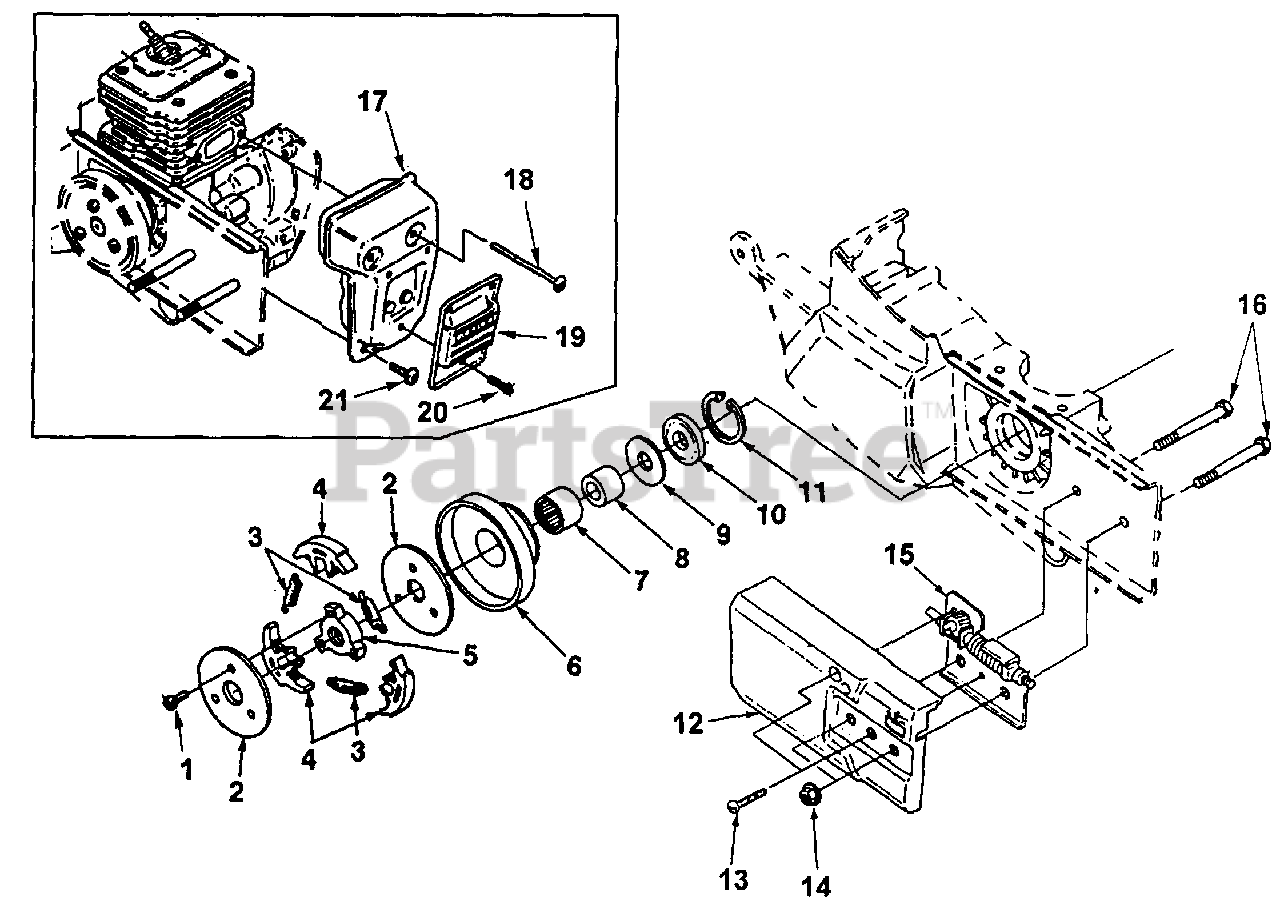

MP 38 (UT-05072-A) - Homelite 14" Multi Purpose Saw Clutch-Exhaust System Parts Diagram

14" Multi Purpose Saw

Clutch-Exhaust System Parts Diagram

  • Title

1

Homelite 82253

SCREW-Machine Hex Hd. (8-32 X 3/8")

Note: Torque Specs: 55 In/Lbs; 6.2 Nm; Blue 242 Required Loctite

$

$

Not available

2

Homelite 93628

COVER-Clutch

$

$

Not available

3

Homelite 93638A

SPRING-Clutch
(Superseded to UP06462)

$

$

Not available

4

Homelite 79239

SHOE-Clutch

$

$

Not available

5

Homelite 02334

CLUTCH-Spider

Note: Torque Specs: 400 In/Lbs; 45.2 Nm; Red 242 Required Loctite

$

$

Not available

6

Homelite A49543

PULLEY-Drum & Bearing
(Superseded to UP07077)

$

$

Not available

7

Homelite 46071

BEARING-Needle

$

$

Not available

8

Homelite 46070

RACE-Inner

$

$

Not available

9

Homelite 46135

WASHER-Thrust

$

$

Not available

10

Homelite 98197A

SEAL-Main
(Superseded to UP06470)

$

$

Not available

11

Homelite 289221

RETAINER-Bearing

$

$

Not available

12

Homelite A02329A

CLUTCH-Cover
(Superseded to UP07156)

$

$

Not available

13

Homelite 82575

SCREW-Taptite (8-32 x 5/8")
(Superseded to 660639001)

Note: Torque Specs: 20 In/Lbs; 2.2 Nm

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 81282

NUT-Hex Flange (5/16-18)
(Superseded to UP03492)

Note: Torque Specs: 140 In/Lbs; 15.8 Nm

$4.99

$

Usually ships in 3-7 days

0

15

Homelite A03879A

GEAR KIT
(Superseded to UP07101)

$

$

Not available

16

Homelite 02327

BOLT-Wheel Arm

$

$

Not available

17

Homelite A02287

MUFFLER
(Superseded to UP06363)

$

$

Not available

18

Homelite 82574

SCREW-Truss Hd. (10-24 x 2 1/2")

Note: Torque Specs: 55 In/Lbs; 6.2 Nm

$

$

Not available

19

Homelite A98747

CAP-Muffler

$

$

Not available

20

Homelite 80983

SCREW-Machine Hex Hd. (8-32 x 1/2")
(Superseded to 80560)

$

$

Not available

21

Homelite 966201

SCREW-Torx (10-24 x 1/2")
(Superseded to UP07201)

Note: Torque Specs: 55 In/Lbs; 6.2 Nm

$4.99

$

Usually ships in 3-7 days

0
