MP 38 (UT-05072-A) - Homelite 14" Multi Purpose Saw Air Cleaner Parts Diagram

14" Multi Purpose Saw

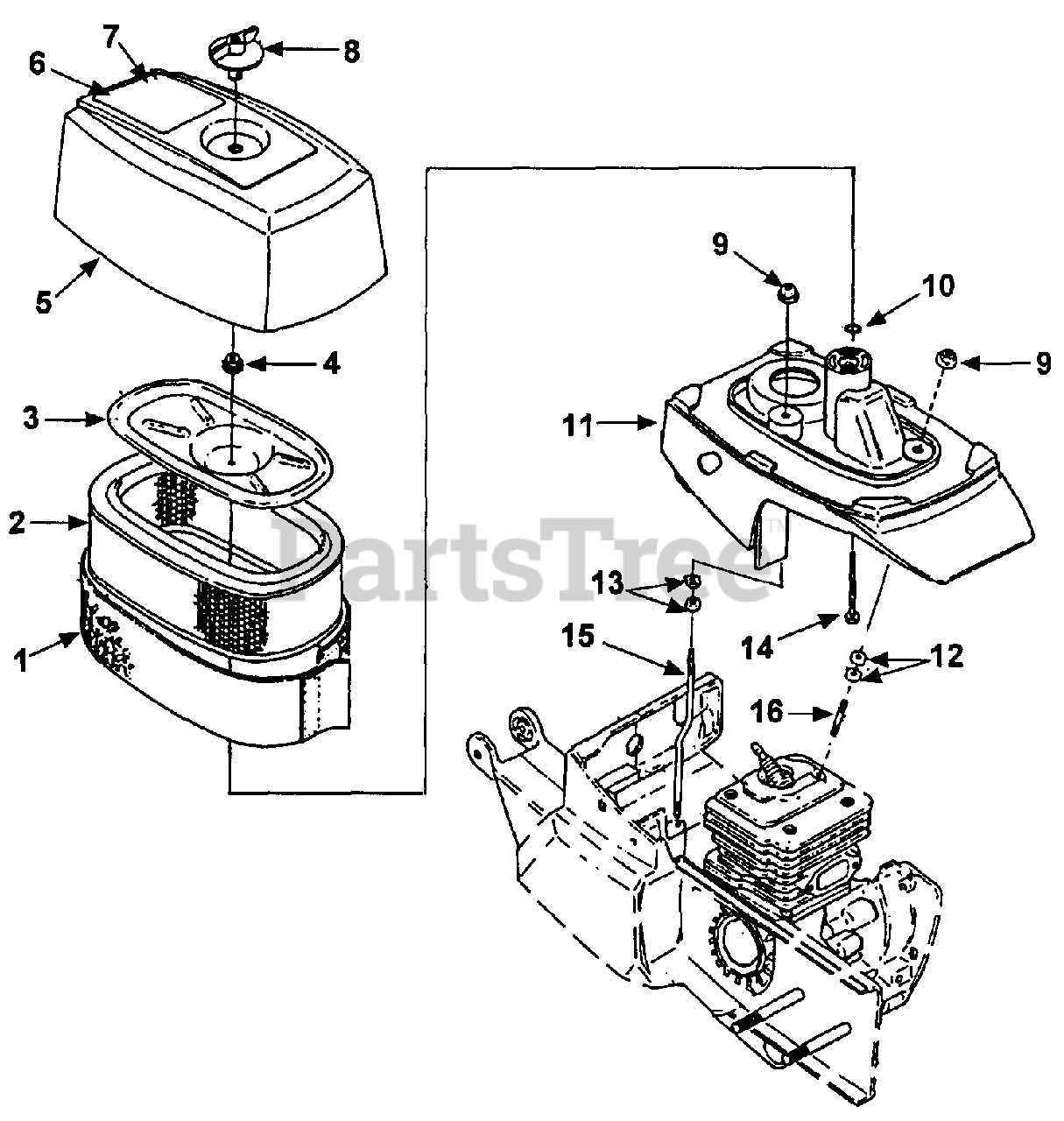

Air Cleaner Parts Diagram

  • Title

1

Homelite 02307

PREFILTER-Felt

$

$

Not available

2

Homelite 02308

ELEMENT-Air Filter
(Superseded to UP05631)

$24.99

$

Usually ships in 3-7 days

0

3

Homelite 023091

COVER-Air Filter Element

$

$

Not available

4

Homelite 02330

NUT-Hex Conical
(Superseded to UP06527)

Note: Torque Specs: 40 In/Lbs; 4.5 Nm

$

$

Not available

5

Homelite A03880A

COVER-Air Filter

$

$

Not available

6

Homelite 03621

DECAL-Warning (French)

$17.99

$

Usually ships in 3-7 days

0

7

Homelite 03620

DECAL-Warning (Eng.)

$3.99

$

Usually ships in 3-7 days

0

Homelite 04644

DECAL-Warning (Int.)

$4.49

$

Usually ships in 3-7 days

0

8

Homelite A03024

KNOB & INSERT

$

$

Not available

9

Homelite 02330

NUT-Hex
(Superseded to UP06527)

Note: Torque Specs: 40 In/Lbs; 4.5 Nm

$

$

Not available

10

Homelite 03383

O-Ring

$

$

Not available

11

Homelite 02303B

COVER-Cylinder

$

$

Not available

12

Homelite 02425

SPACER-Insulating

$

$

Not available

13

Homelite 81092

NUT-Hex

$

$

Not available

14

Homelite 82584

SCREW-Hex Cap (10-24 X 1 3/4")
(Superseded to UP08099)

$

$

Not available

15

Homelite 02347

STUD-Offset (10-24)

Note: Torque Specs: Hand Tight; Blue 242 Required Locktite

$

$

Not available

16

Homelite 02346

STUD (10-24 x 1")

Note: Torque Specs: 15 In/Lbs; 1.6 Nm

$

$

Not available
