MP 38 (UT-05071) - Homelite 12" Multi Purpose Saw Carburetor - Fuel Tank Parts Diagram

12" Multi Purpose Saw

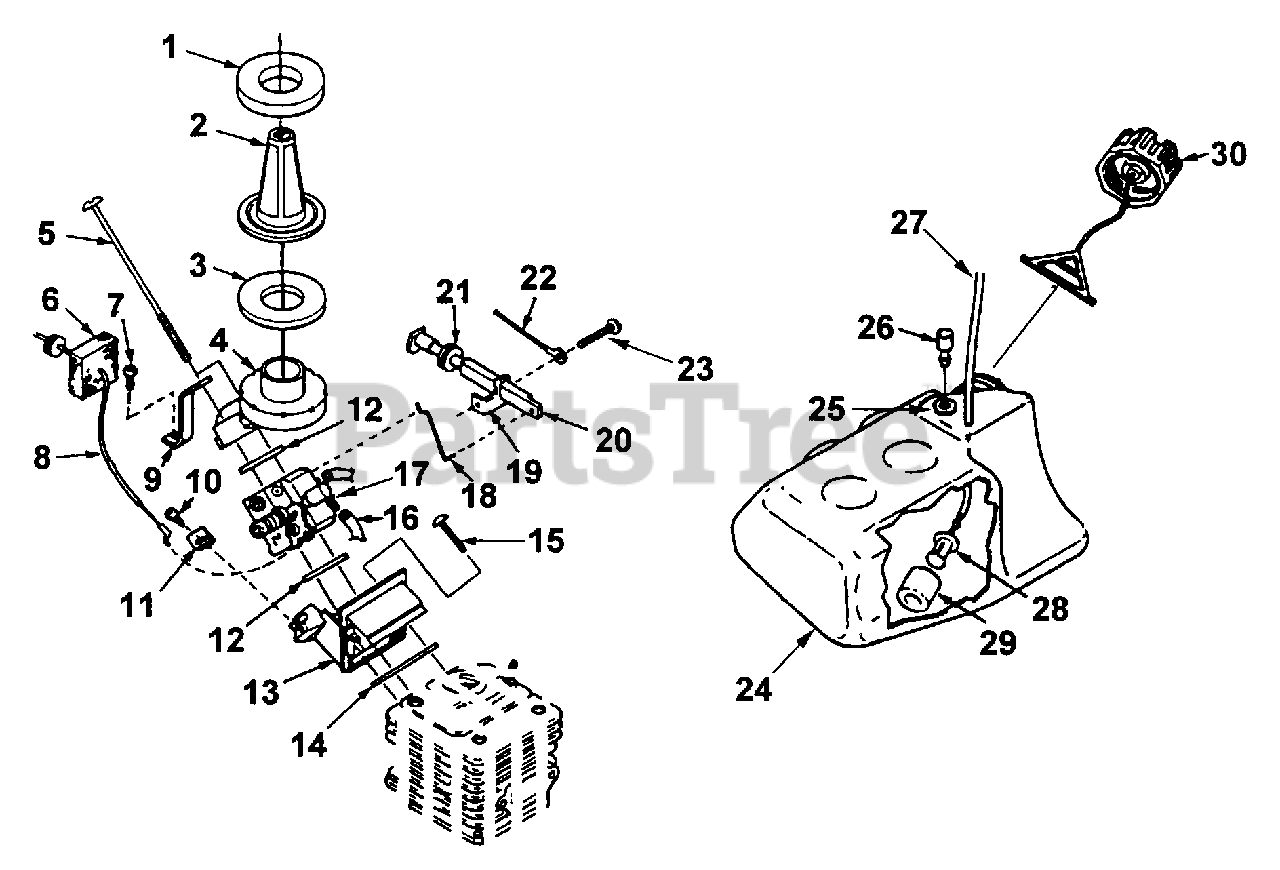

Carburetor - Fuel Tank Parts Diagram

  • Title

1

Homelite 02300

GASKET - Foam (1/4")
(Superseded to UP05621)

$

$

Not available

2

Homelite 02301

FILTER - Screen
(Superseded to UP05622)

$23.99

$

Usually ships in 3-7 days

0

3

Homelite 02302

GASKET - Foam

$

$

Not available

4

Homelite A03272

ADAPTOR - Intake

$

$

Currently unavailable

5

Homelite 82582

SCREW - Truss Hd (8-16 x 3-1/4")

Note: Torque Specs: 45 In/Lbs; 5 Nm

$

$

Not available

6

Homelite 03758

PAD - Foam

$

$

Not available

7

Homelite 966201

SCREW - Torx (10-24 x 1/2")
(Superseded to UP07201)

Note: Torque Specs: 65 In/Lbs; 7.3 Nm

$4.99

$

Usually ships in 3-7 days

0

8

Homelite A02315

CABLE - Throttle
(Superseded to UP07155)

$

$

Not available

9

Homelite 02313A

BRACKET - Air Intake
(Superseded to UP07100)

$

$

Not available

10

Homelite 82513

SCREW - Thread Form (6-19 x 1/2")

Note: Torque Specs: 15 In/Lbs; 1.7 Nm

$2.49

$

In Stock, Qty 5

0

11

Homelite 03455

BRACKET - Cable End

$

$

Not available

12

Homelite 02295

GASKET - Carburetor

$

$

Not available

13

Homelite 022961

ADAPTOR - Intake

$

$

Not available

14

Homelite 02297

GASKET - Adaptor

$

$

Not available

15

Homelite 82571

SCREW - Pan Hd (10-24 x 1")
(Superseded to UP05543)

Note: Torque Specs: 45 In/Lbs; 5 Nm; RED 262 Locktite Required

$

$

Not available

16

Homelite 9315719

TUBING, Pulse line (4-3/4")

$

$

Not available

17

Homelite A02298B

CARBURETOR - Walbro
(Superseded to UP06365)

$

$

Not available

Homelite 03757

GROMMET - Hi-Lo

Note: Not Shown

$

$

Not available

18

Homelite A06369

CHOKE LINK & RETAINER
(Superseded to UP07212)

$

$

Not available

19

Homelite 03333

BRACKET - Cable

$

$

Not available

20

Homelite 02314

ROD - Choke
(Superseded to UP05626)

$

$

Not available

21

Homelite 64862

GROMMET
(Superseded to 570219001)

$

$

Not available

22

Homelite A03556

GROUND WIRE

$

$

Not available

23

Homelite 825561

SCREW - Truss Hd (10-24 x 1-1/4")
(Superseded to UP04113)

Note: Torque Specs: 55 In/Lbs; 6.2 Nm

$2.49

$

Usually ships in 3-7 days

0

24

Homelite A03402A

TANK - Fuel
(Superseded to UP07139)

$

$

Not available

25

Homelite 64862

GROMMET
(Superseded to 570219001)

$

$

Not available

26

Homelite A02294

FILTER SLEEVE
(Superseded to UP07070)

Note: (Complete)

$

$

Not available

27

Homelite 9477240

TUBING - Rubber (10")
(Superseded to UP05860)

$51.99

$

Usually ships in 3-7 days

0

28

Homelite A97700

FILTER - Fuel
(Superseded to UP06516)

$

$

Not available

29

Homelite 592531A

FILTER - Fuel

$11.99

$

Usually ships in 3-7 days

0

30

Homelite A00904A

CAP - Tank (w/Retainer)
(Superseded to DA00904A)

$

$

Not available
