MP 38 (UT-05071-A) - Homelite 12" Multi Purpose Saw Engine Internal Parts Diagram

12" Multi Purpose Saw

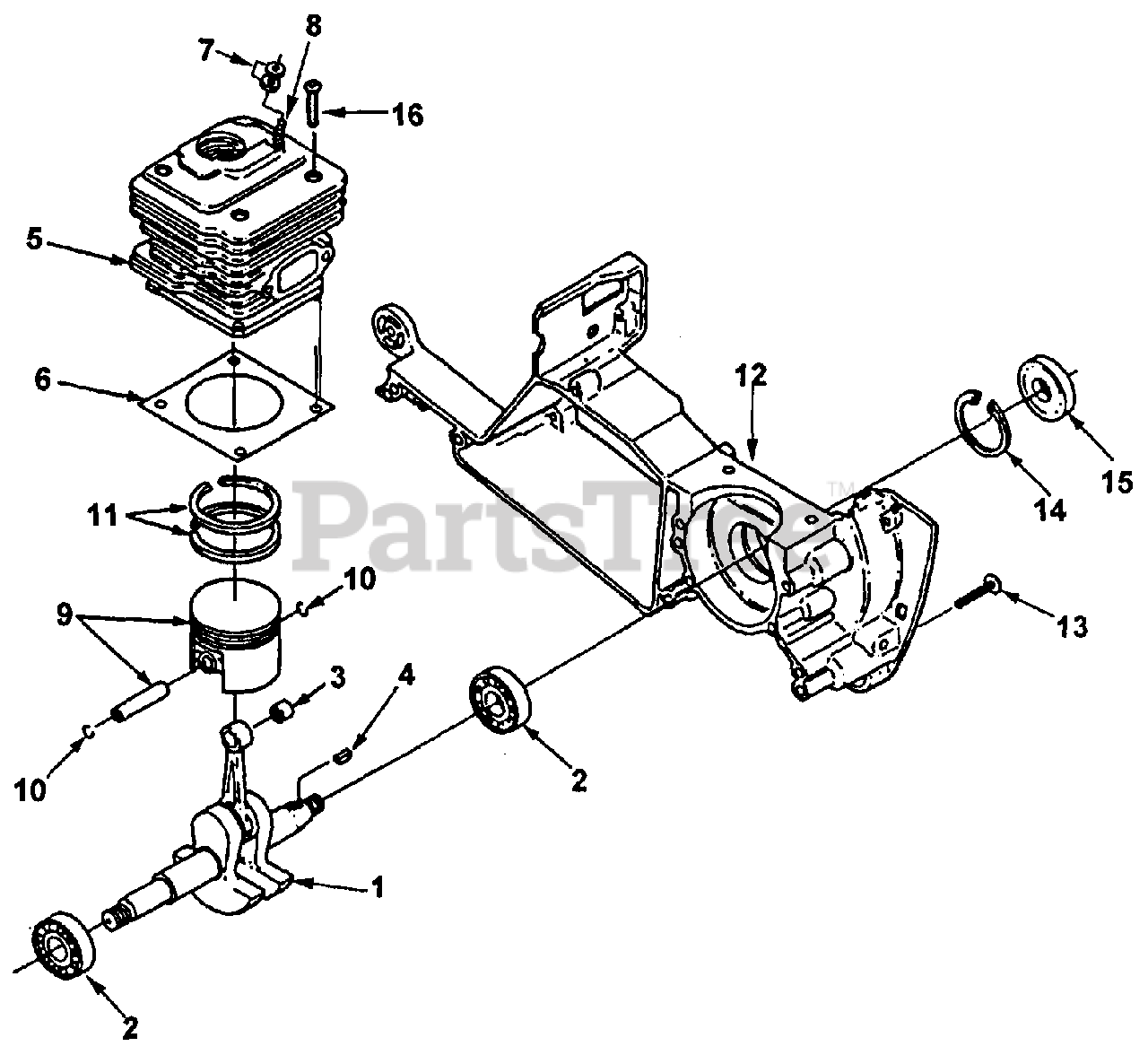

Engine Internal Parts Diagram

  • Title

1

Homelite A03883

CRANKSHAFT
(Superseded to UP07132)

$

$

Not available

2

Homelite 987971

BEARING-Ball
(Superseded to 98797)

$

$

Not available

3

Homelite 02151A

BEARING-Piston Pin
(Superseded to UP07200)

$

$

Not available

4

Homelite 75078

KEY-Woodruff
(Superseded to UP07068)

$

$

Not available

5

Homelite A03881

CYLINDER & PISTON ASSEMBLY

$

$

Not available

6

Homelite 01568

GASKET-Cylinder

$

$

Not available

7

Homelite 02425

SPACER

$

$

Not available

8

Homelite 02346

STUD-(10-24 X 1 1/4")

$

$

Not available

9

Homelite A01273

PISTON (1.890 Dia.)

$

$

Currently unavailable

10

Homelite 02161

RING-Retaining

$

$

Not available

11

Homelite 02162

RING-Piston
(Superseded to UP06653)

$

$

Not available

12

Homelite A02272B

CRANKCASE
(Superseded to UP07150)

$

$

Not available

13

Homelite 825561

SCREW-Truss Hd. (10-24 X 1 1/4")
(Superseded to UP04113)

Note: Torque Specs: 55 In/Lbs; 6.2 Nm; RED 262 Required Loctite

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 289221

RETAINER-Bearing

$

$

Not available

15

Homelite 98197A

SEAL-Main
(Superseded to UP06470)

$

$

Not available

16

Homelite 82580

SCREW-Pan Hd (12-24 x 3/4")
(Superseded to 825801)

Note: Torque Specs: 85 In/Lbs; 9.6 Nm; RED 262 Required Loctite

$

$

Not available
