MP 38 (UT-05057) - Homelite Multi Purpose Saw Handles Parts Diagram

Multi Purpose Saw

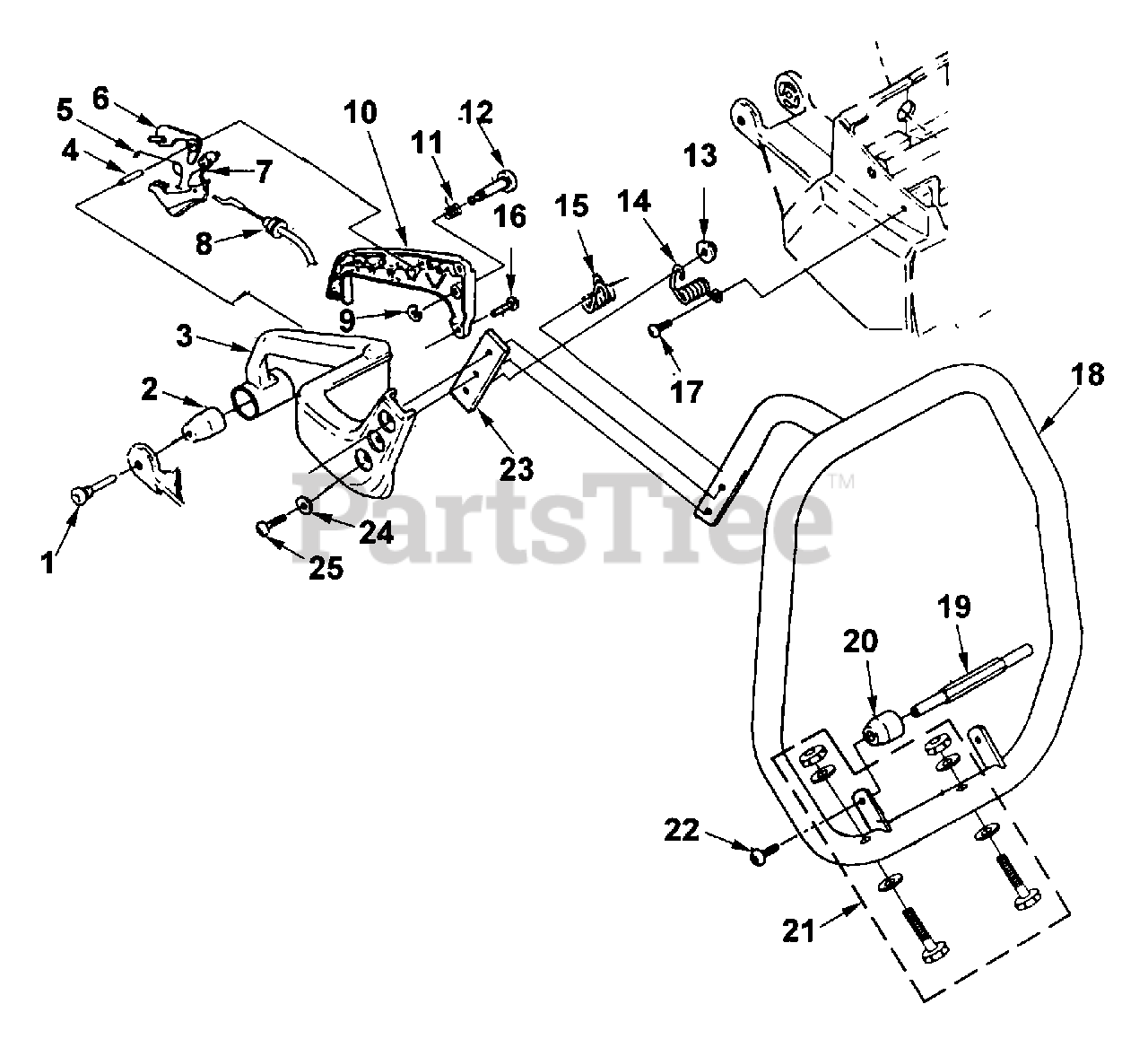

Handles Parts Diagram

  • Title
1

Homelite 93367

ISOLATOR PIN

Note: Torque Specs: 60 In/Lbs; 6.8 Nm; Anti Seize Locktite Required

$

$

Not available

2

Homelite 93368A

ISOLATOR - Vibration
(Superseded to UP06458)

$

$

Not available

3

Homelite 02318

HANDLE - Rear
(Superseded to UP06369)

$

$

Not available

4

Homelite 68548

PIN - Trigger

$

$

Not available

5

Homelite 02316

SPRING - Throttle

$

$

Not available

6

Homelite 93385A

LOCK - Trigger

$

$

Not available

7

Homelite A03806A

TRIGGER & SWIVEL

$

$

Currently unavailable

8

Homelite A02315

CABLE - Throttle
(Superseded to UP07155)

$

$

Not available

9

Homelite 58409

RING - Retaining

$4.49

$

Usually ships in 3-7 days

0

10

Homelite 02319

COVER - Handle

$

$

Not available

11

Homelite 95020

SPRING - Compression
(Superseded to UP04716)

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 95671

PIN - Throttle Lock
(Superseded to UP05997)

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 02330

NUT - Hex (10-24)
(Superseded to UP06527)

Note: Torque Specs: 40 In/Lbs; 4.5 Nm

$

$

Not available

14

Homelite PS03535

SPRING - Isolation (Large)
(Superseded to UP06375)

$

$

Not available

15

Homelite PS03536

SPRING - Isolation (Small)
(Superseded to UP06376)

$

$

Not available

16

Homelite 82536

SCREW - Plastite (8-16 x 5/8")

Note: Torque Specs: 35 In/Lbs; 3.9 Nm

$

$

Not available

17

Homelite 966201

SCREW - Torx Hd. (10-24 x 1/2")
(Superseded to UP07201)

Note: Torque Specs: 55 In/Lbs; 6.2 Nm

$4.99

$

Usually ships in 3-7 days

0

18

Homelite A08326

HANDLE BAR

$

$

Not available

19

Homelite 02277A

SPACER
(Superseded to UP06362)

$

$

Not available

20

Homelite 973051A

ISOLATOR - Vibration
(Superseded to UP06468)

$

$

Not available

21

Homelite A03633

KIT - Wear Pad
(Superseded to UP07634)

$

$

Not available

22

Homelite 966201

SCREW - Torx Hd. (10-24 x 1/2")
(Superseded to UP07201)

Note: Torque Specs: 55 In/Lbs; 6.2 Nm

$4.99

$

Usually ships in 3-7 days

0

23

Homelite 03078

STRAP, Reinforcing

$

$

Not available

24

Homelite 95935

WASHER (#12-11/16)

$

$

Not available

25

Homelite 825551

SCREW - Truss Hd. (10-24 x 3/4")
(Superseded to UP03899)

$2.99

$

Usually ships in 3-7 days

0
