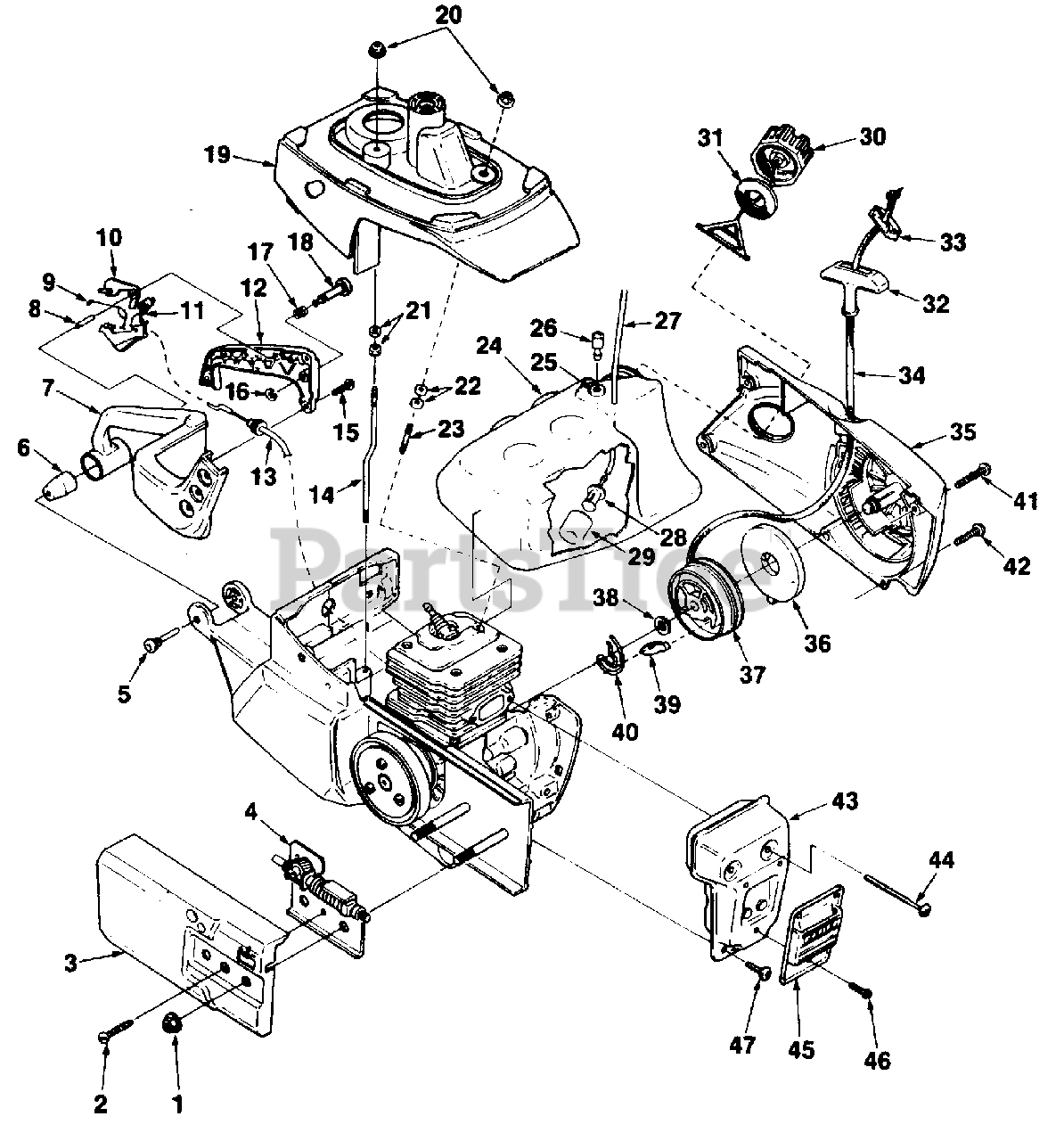

MP 38 (UT-05055) - Homelite Multi Purpose Saw Starter, Muffler & Tank Parts Diagram

Multi Purpose Saw

Starter, Muffler & Tank Parts Diagram

  • Title

1

Homelite 81282

NUT- Hex flange (5/1-18)
(Superseded to UP03492)

$4.99

$

Usually ships in 3-7 days

0

2

Homelite 82575

SCREW- Taptite (8-32 x 5/8")
(Superseded to 660639001)

$1.99

$

Usually ships in 3-7 days

0

3

Homelite A02329

COVER- Clutch
(Superseded to UP07156)

$

$

Not available

4

Homelite A03879

GEAR KIT
(Superseded to UP07101)

$

$

Not available

5

Homelite 93367

PIN- Isolator

$

$

Not available

6

Homelite 93368A

ISOLATOR- Vibration
(Superseded to UP06458)

$

$

Not available

7

Homelite 02318

HANDLE- Rear
(Superseded to UP06369)

$

$

Not available

8

Homelite 68548

PIN- Trigger

$

$

Not available

9

Homelite 02316

SPRING- Throttle

$

$

Not available

10

Homelite 93385A

LOCK- Trigger

$

$

Not available

11

Homelite A03806

TRIGGER

$

$

Currently unavailable

12

Homelite 02319

COVER- Handle

$

$

Not available

13

Homelite A02315

CABLE- Throttle
(Superseded to UP07155)

$

$

Not available

14

Homelite 02347

STUD- Offset (10-24)

$

$

Not available

15

Homelite 82536

SCREW- Plastite (8-16 x 5/8")

$

$

Not available

16

Homelite 58409

RING- Retaining

$4.49

$

Usually ships in 3-7 days

0

17

Homelite 95020

SPRING- Compression
(Superseded to UP04716)

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 95671

PIN- Throttle lock
(Superseded to UP05997)

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 02303

COVER- Cylinder
(Superseded to 02303B)

$

$

Not available

20

Homelite 02330

NUT- Hex concical
(Superseded to UP06527)

$

$

Not available

21

Homelite 81092

NUT- Hex

$

$

Not available

22

Homelite 02425

SPACER

$

$

Not available

23

Homelite 02346

STUD (10-24 x 1.06")

$

$

Not available

24

Homelite A03402

TANK- Fuel
(Superseded to UP07139)

$

$

Not available

25

Homelite 64862

GROMMET
(Superseded to 570219001)

$

$

Not available

26

Homelite A02294

FILTER SLEEVE (Complete)
(Superseded to UP07070)

$

$

Not available

27

Homelite 9477240

TUBING- Rubber
(Superseded to UP05860)

$51.99

$

Usually ships in 3-7 days

0

28

Homelite A97700

FILTER- Fuel
(Superseded to UP06516)

$

$

Not available

29

Homelite 592531A

FILTER- Fuel

$11.99

$

Usually ships in 3-7 days

0

30

Homelite A00904

CAP- Tank (w/retainer)

$

$

Currently unavailable

31

Homelite 02762

GASKET- Tank cap
(Superseded to UP07434)

$

$

Not available

Homelite A03884

STARTER HOUSING (Complete)
(Superseded to UP07071)

$125.99

$

Usually ships in 3-7 days

0

32

Homelite A69962B

GRIP- Starter (w/insert)

$19.99

$

Usually ships in 3-7 days

0

33

Homelite 70018A

INSERT- Rope ret.

$

$

Not available

34

Homelite A00518

ROPE- Starter
(Superseded to 93418)

$

$

Currently unavailable

35

Homelite A03885

HOUSING- Starter (w/bushing)
(Superseded to A03885A)

$

$

Not available

36

Homelite A97908

SPRING & CONTAINER
(Superseded to 300982011)

$

$

Not available

37

Homelite A03882

PULLEY ASSEMBLY
(Superseded to UP05972)

$39.99

$

Usually ships in 3-7 days

0

38

Homelite 01274

WASHER

$

$

Not available

39

Homelite 98332A

PAWL

$

$

Not available

40

Homelite 03750A

CLIP
(Superseded to 03750B)

$

$

Not available

41

Homelite 825561

SCREW- Truss hd. (10-24 x 1 1/4")
(Superseded to UP04113)

$2.49

$

Usually ships in 3-7 days

0

42

Homelite 825551

SCREW- Truss hd. (10-24 x 3/4")
(Superseded to UP03899)

$2.99

$

Usually ships in 3-7 days

0

43

Homelite A02287

MUFFLER
(Superseded to UP06363)

$

$

Not available

44

Homelite 82574

SCREW- Truss hd. (10-24 x 21/2")

$

$

Not available

45

Homelite A98747

CAP- Muffler

$

$

Not available

46

Homelite 80983

SCREW- Mach. hex hd. (8-32 x 1/2")
(Superseded to 80560)

$

$

Not available

47

Homelite 966201

SCREW- Torx (10-24 x 3/4"
(Superseded to UP07201)

$4.99

$

Usually ships in 3-7 days

0
