MP 38 (UT-05055) - Homelite Multi Purpose Saw Air Cleaner, Handles & Carburetor Parts Diagram

Multi Purpose Saw

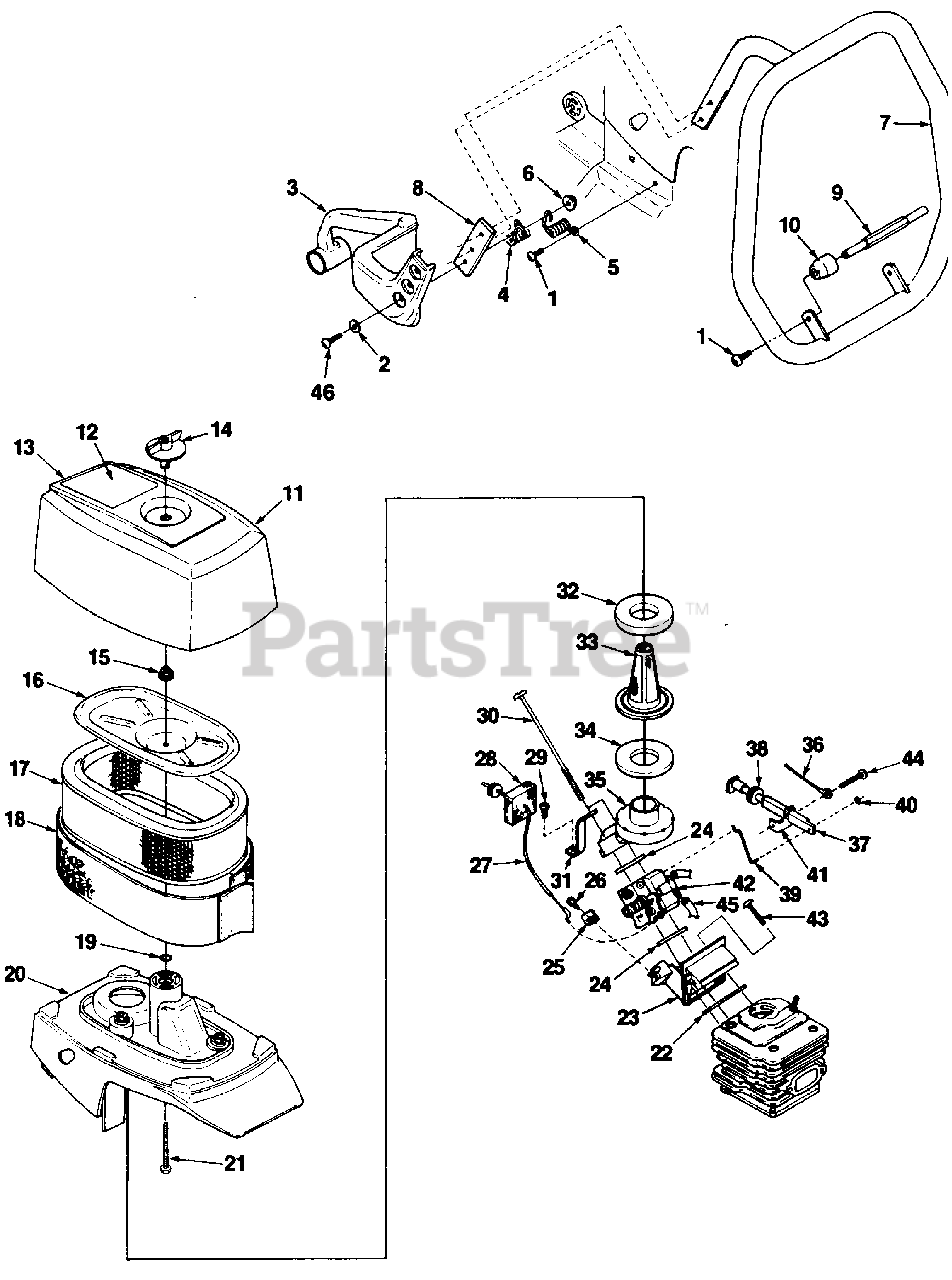

Air Cleaner, Handles & Carburetor Parts Diagram

  • Title

1

Homelite 966201

SCREW- Truss hd. (10-24 x 1/2")
(Superseded to UP07201)

$4.99

$

Usually ships in 3-7 days

0

2

Homelite 95935

WASHER

$

$

Not available

3

Homelite 02318

HANDLE- Rear
(Superseded to UP06369)

$

$

Not available

4

Homelite 03536

SPRING- Isolation (small)
(Superseded to UP06376)

$

$

Not available

5

Homelite 03535

SPRING- Isolation (large)
(Superseded to UP06375)

$

$

Not available

6

Homelite 02330

NUT- Hex
(Superseded to UP06527)

$

$

Not available

7

Homelite A02320

HANDLE BAR
(Superseded to UP07074)

$

$

Not available

8

Homelite 02323

BRACKET- Handle mounting
(Superseded to 03078)

$

$

Not available

9

Homelite 02277

SPACER
(Superseded to UP06362)

$

$

Not available

10

Homelite 97305A

ISOLATOR- Vibration
(Superseded to 973052)

$

$

Not available

11

Homelite A03880

COVER- Air filter
(Superseded to A03880A)

$

$

Not available

12

Homelite 03620

DECAL- Warning (Eng.)

$3.99

$

Usually ships in 3-7 days

0

13

Homelite 03621

DECAL- Warning (Fre.)

$17.99

$

Usually ships in 3-7 days

0

14

Homelite A03024

KNOB & INSERT

$

$

Not available

15

Homelite 02330

NUT- Hex
(Superseded to UP06527)

$

$

Not available

16

Homelite 02309

COVER--Air filter element
(Superseded to 023091)

$

$

Not available

17

Homelite 02308

ELEMENT- Air filter
(Superseded to UP05631)

$24.99

$

Usually ships in 3-7 days

0

18

Homelite 02307

PREFILTER- Felt

$

$

Not available

19

Homelite 03383

O-RING

$

$

Not available

20

Homelite 02303

COVER- Cylinder
(Superseded to 02303B)

$

$

Not available

21

Homelite 82584

SCREW- Hex cap (10-24 x 13/4")
(Superseded to UP08099)

$

$

Not available

22

Homelite 02295

GASKET- Carburetor

$

$

Not available

23

Homelite 022961

ADAPTOR- Intake

$

$

Not available

24

Homelite 02297

GASKET- Adaptor

$

$

Not available

25

Homelite 03455

BRACKET- Cable end

$

$

Not available

26

Homelite 82513

SCREW- (6-19 x 1/2")

$2.49

$

In Stock, Qty 5

0

27

Homelite A02315

CABLE- Throttle
(Superseded to UP07155)

$

$

Not available

28

Homelite 03758

PAD- Foam

$

$

Not available

29

Homelite 82513

SCREW- (6-19 x 1/2")

$2.49

$

In Stock, Qty 5

0

30

Homelite 82582

SCREW- Truss hd. (8-16 x 31/4")

$

$

Not available

31

Homelite 02313

BRACKET- Air intake
(Superseded to UP07100)

$

$

Not available

32

Homelite 02300

GASKET- Foam (1/4")
(Superseded to UP05621)

$

$

Not available

33

Homelite 02301

FILTER- Screen
(Superseded to UP05622)

$23.99

$

Usually ships in 3-7 days

0

34

Homelite 02302

GASKET- Foam (1/8")

$

$

Not available

35

Homelite A03272

ADAPTOR- Air filter

$

$

Currently unavailable

36

Homelite A03556

GROUND WIRE

$

$

Not available

37

Homelite 02314

ROD- Choke
(Superseded to UP05626)

$

$

Not available

38

Homelite 64862

GROMMET
(Superseded to 570219001)

$

$

Not available

39

Homelite 03354

CHOKE LINK
(Superseded to UP07212)

$

$

Not available

40

Homelite 01817

RETAINER- Push On

$

$

Not available

41

Homelite 03333

BRACKET- Choke

$

$

Not available

42

Homelite A02298

CARBURETOR

$

$

Currently unavailable

43

Homelite 82571

SCREW- Pan hd. (10-24 x 1")
(Superseded to UP05543)

$

$

Not available

44

Homelite 825561

SCREW- (10-24 x 1 1/4")
(Superseded to UP04113)

$2.49

$

Usually ships in 3-7 days

0

45

Homelite 9315719

LINE- Pulse (4 3/4")

$

$

Not available

46

Homelite 825551

SCREW- Truss Hd. (10-24 x 3/4")
(Superseded to UP03899)

$2.99

$

Usually ships in 3-7 days

0
