MP 38 (UT-05055-B) - Homelite Multi Purpose Saw Handle & Air Cleaner Parts Diagram

Multi Purpose Saw

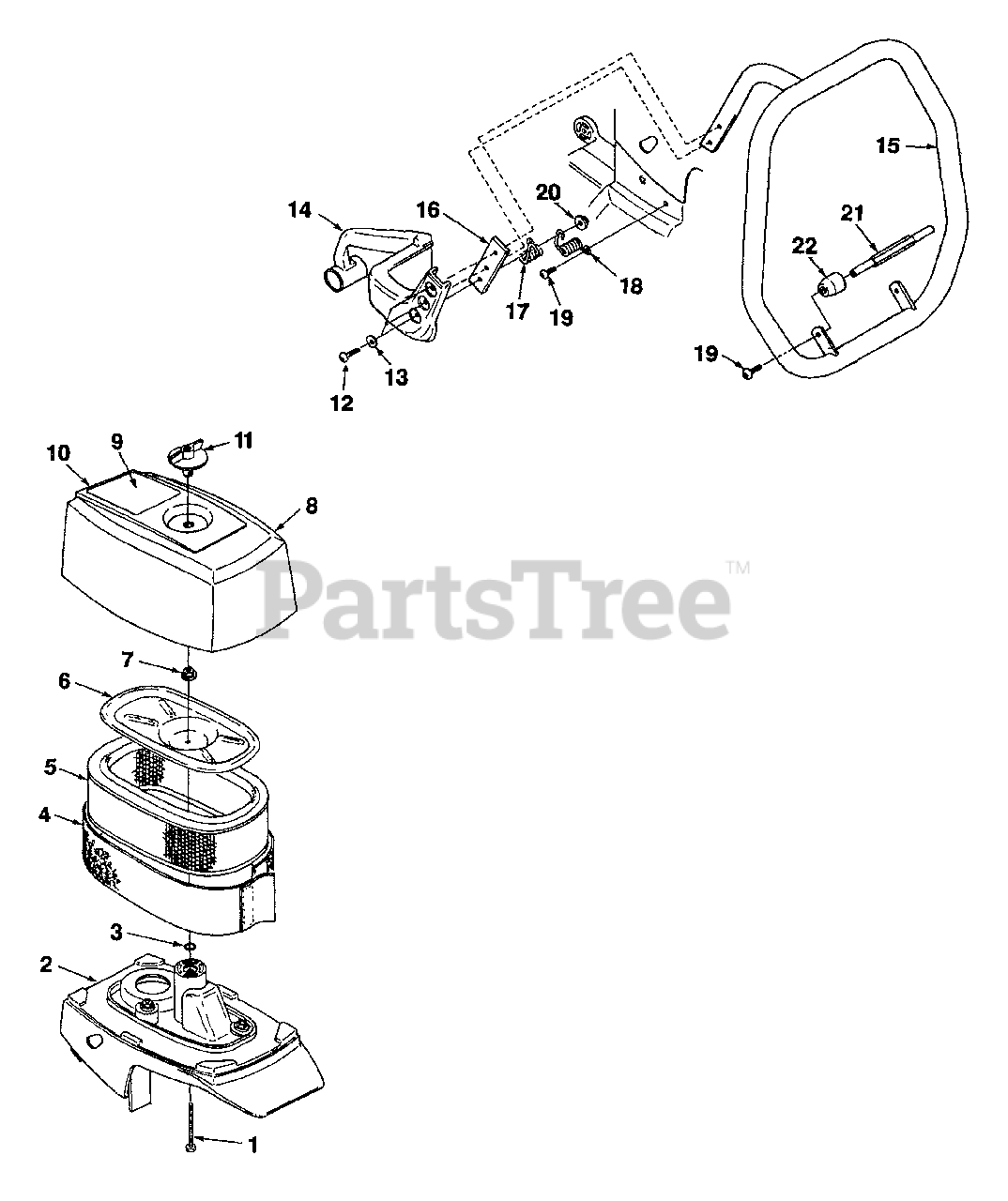

Handle & Air Cleaner Parts Diagram

  • Title

1

Homelite 82584

SCREW-Hex Cap (10-24 X 1 3/4")
(Superseded to UP08099)

$

$

Not available

2

Homelite 02303

COVER-Cylinder
(Superseded to 02303B)

$

$

Not available

3

Homelite 03383

O-RING

$

$

Not available

4

Homelite 02307

PREFILTER-Felt

$

$

Not available

5

Homelite 02308

ELEMENT-Air Filter
(Superseded to UP05631)

$24.99

$

Usually ships in 3-7 days

0

6

Homelite 023091

COVER-Air Filter Element

$

$

Not available

7

Homelite 02330

NUT-Hex
(Superseded to UP06527)

$

$

Not available

8

Homelite A03880

COVER-Air Filter
(Superseded to A03880A)

$

$

Not available

9

Homelite 03620

DECAL-Warning (Eng.)

$3.99

$

Usually ships in 3-7 days

0

Homelite 04644

DECAL-Warning (Int.)

$4.49

$

Usually ships in 3-7 days

0

10

Homelite 03621

DECAL-Warning (French)

$17.99

$

Usually ships in 3-7 days

0

11

Homelite A03024

KNOB & INSERT

$

$

Not available

12

Homelite 825551

SCREW-Truss Hd. (10-24 X 3/4")
(Superseded to UP03899)

$2.99

$

Usually ships in 3-7 days

0

13

Homelite 95935

WASHER (#12-11/16)

$

$

Not available

14

Homelite 02318

HANDLE-Rear
(Superseded to UP06369)

$

$

Not available

15

Homelite A02320

HANDLE BAR
(Superseded to UP07074)

$

$

Not available

16

Homelite 02323

BRACKET-Mounting
(Superseded to 03078)

$

$

Not available

17

Homelite 03536

SPRING-Isolation (Small)
(Superseded to UP06376)

$

$

Not available

18

Homelite 03535

SPRING-Isolation (Large)
(Superseded to UP06375)

$

$

Not available

19

Homelite 966201

SCREW-Torx Hd. (10-24 X 1/2")
(Superseded to UP07201)

$4.99

$

Usually ships in 3-7 days

0

20

Homelite 02330

NUT-Hex (10-24)
(Superseded to UP06527)

$

$

Not available

21

Homelite 02277

SPACER
(Superseded to UP06362)

$

$

Not available

22

Homelite 973051A

ISOLATOR-Vibration
(Superseded to UP06468)

$

$

Not available
