MP 38 (UT-05055-B) - Homelite Multi Purpose Saw Drive Case, Cover, Rear Handle Parts Diagram

Multi Purpose Saw

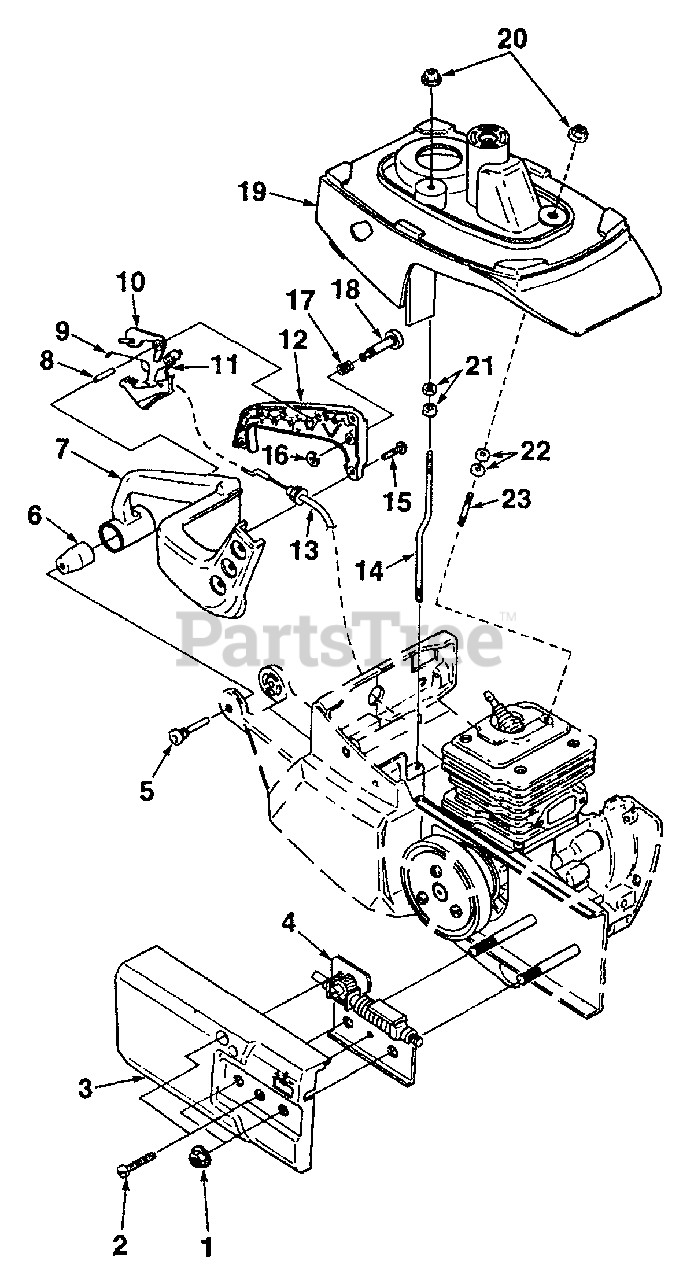

Drive Case, Cover, Rear Handle Parts Diagram

  • Title

1

Homelite 81282

NUT-Hex Flange (5/16-18)
(Superseded to UP03492)

$4.99

$

Usually ships in 3-7 days

0

2

Homelite 82575

SCREW-Taptite (8-32 X 5/8")
(Superseded to 660639001)

$1.99

$

Usually ships in 3-7 days

0

3

Homelite A02329A

COVER-Clutch
(Superseded to UP07156)

$

$

Not available

4

Homelite A03879

GEAR KIT
(Superseded to UP07101)

$

$

Not available

5

Homelite 93367

PIN-Isolator

$

$

Not available

6

Homelite 93368A

ISOLATOR-Vibration
(Superseded to UP06458)

$

$

Not available

7

Homelite 02318

HANDLE-Rear
(Superseded to UP06369)

$

$

Not available

8

Homelite 68548

PIN-Trigger

$

$

Not available

9

Homelite 02316

SPRING-Throttle

$

$

Not available

10

Homelite 93385A

LOCK-Trigger

$

$

Not available

11

Homelite A03806A

TRIGGER & SWIVEL

$

$

Currently unavailable

12

Homelite 02319

COVER-Handle

$

$

Not available

13

Homelite A02315

CABLE-Throttle
(Superseded to UP07155)

$

$

Not available

14

Homelite 02347

STUD-Offset (10-24)

$

$

Not available

15

Homelite 82536

SCREW-Plastite (8-16 X 5/8")

$

$

Not available

16

Homelite 58409

RING-Retaining

$4.49

$

Usually ships in 3-7 days

0

17

Homelite 95020

SPRING-Compression
(Superseded to UP04716)

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 95671

PIN Throttle Lock
(Superseded to UP05997)

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 02303A

COVER-Cylinder
(Superseded to 02303B)

$

$

Not available

20

Homelite 02330

NUT-Hex Conical
(Superseded to UP06527)

$

$

Not available

21

Homelite 81092

NUT-Hex

$

$

Not available

22

Homelite 02425

SPACER-Insulating

$

$

Not available

23

Homelite 02346

STUD (10-24 X 1.06")

$

$

Not available

Homelite A03881

Cylinder and Piston Assembly

Note: Includes items 22 & 23

$

$

Not available
