MP 38 (UT-05055-B) - Homelite Multi Purpose Saw Carb & Intake Parts Diagram

Multi Purpose Saw

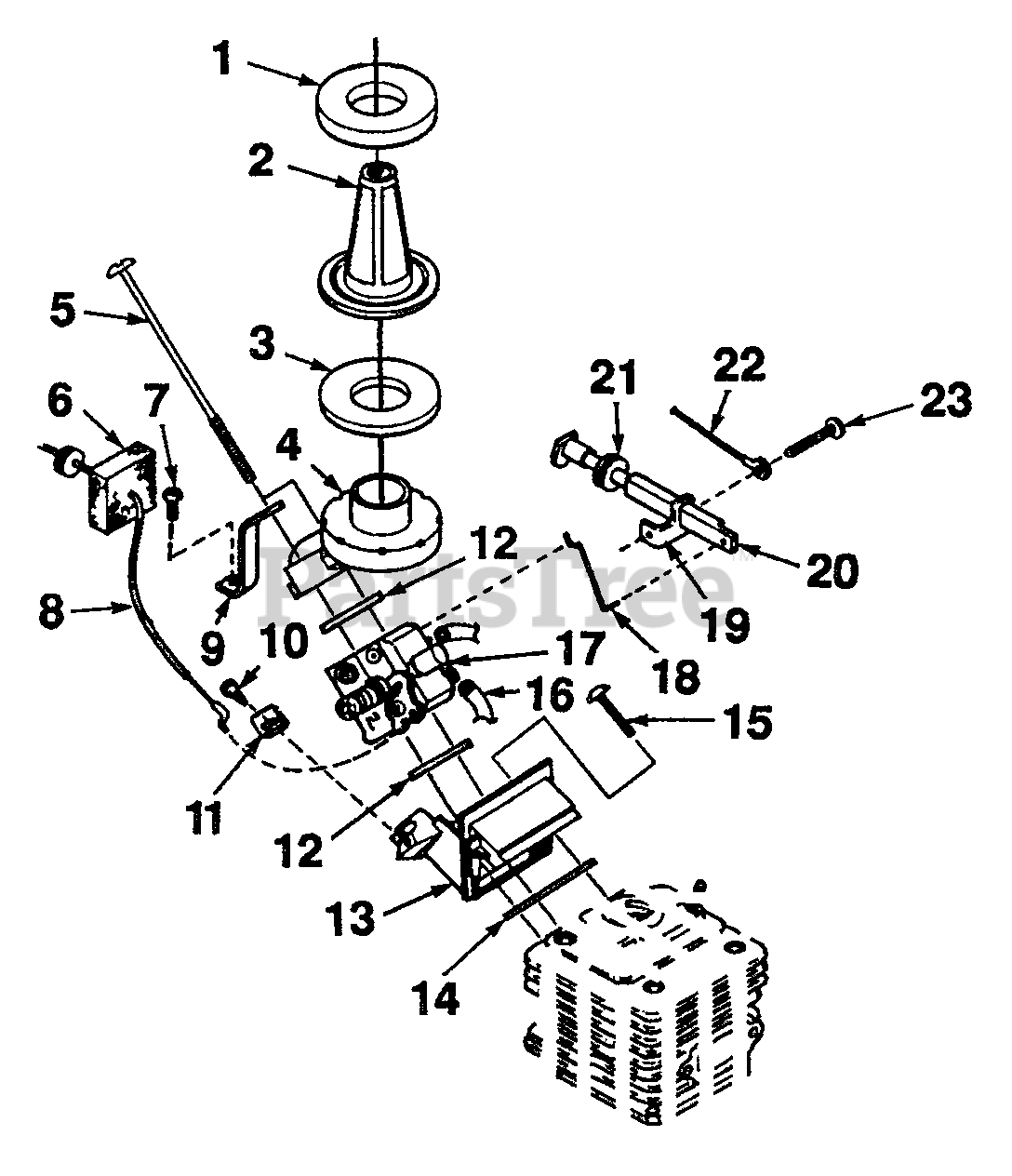

Carb & Intake Parts Diagram

  • Title

1

Homelite 02300

GASKET-Foam (1/4")
(Superseded to UP05621)

$

$

Not available

2

Homelite 02301

FILTER-Screen
(Superseded to UP05622)

$23.99

$

Usually ships in 3-7 days

0

3

Homelite 02302

GASKET-Foam

$

$

Not available

4

Homelite A03272

ADAPTOR-Intake

$

$

Currently unavailable

5

Homelite 82582

SCREW-Truss Hd. (8-16 X 3 1/4")

$

$

Not available

6

Homelite 03758

PAD-Foam

$

$

Not available

7

Homelite 966201

SCREW-Torx (10-24 X 1/2")
(Superseded to UP07201)

$4.99

$

Usually ships in 3-7 days

0

8

Homelite A02315

CABLE-Throttle
(Superseded to UP07155)

$

$

Not available

9

Homelite 02313A

BRACKET-Air Intake
(Superseded to UP07100)

$

$

Not available

10

Homelite 82513

SCREW-Thread Form. (6-19 X 1/2")

$2.49

$

In Stock, Qty 5

0

11

Homelite 03455

BRACKET-Cable End

$

$

Not available

12

Homelite 02297

GASKET-Adaptor

$

$

Not available

13

Homelite 022961

ADAPTOR-Intake

$

$

Not available

14

Homelite 02295

GASKET-Carburetor

$

$

Not available

15

Homelite 82571

SCREW-Pan Hd. (10-24 X 1")
(Superseded to UP05543)

$

$

Not available

16

Homelite 9315719

TUBING,Pulse line (4 3/4")

$

$

Not available

17

Homelite A02298A

CARBURETOR-Walbro
(Superseded to UP06365)

$

$

Not available

Homelite 03757

GROMMET-Hi-Lo

Note: (Not Shown)

$

$

Not available

18

Homelite A06369

CHOKE LINK & RETAINER
(Superseded to UP07212)

$

$

Not available

19

Homelite 03333

BRACKET-Cable

$

$

Not available

20

Homelite 02314

ROD-Choke
(Superseded to UP05626)

$

$

Not available

21

Homelite 64862

GROMMET
(Superseded to 570219001)

$

$

Not available

22

Homelite A03556

GROUND WIRE

$

$

Not available

23

Homelite 825561

SCREW-Truss Hd. (10-24 X 1 1/4")
(Superseded to UP04113)

$2.49

$

Usually ships in 3-7 days

0
