MP 22675 HW (7800456) - Murray 22" Walk-Behind Mower (2010) Handles & Controls (Self-Propelled) Parts Diagram

22" Walk-Behind Mower

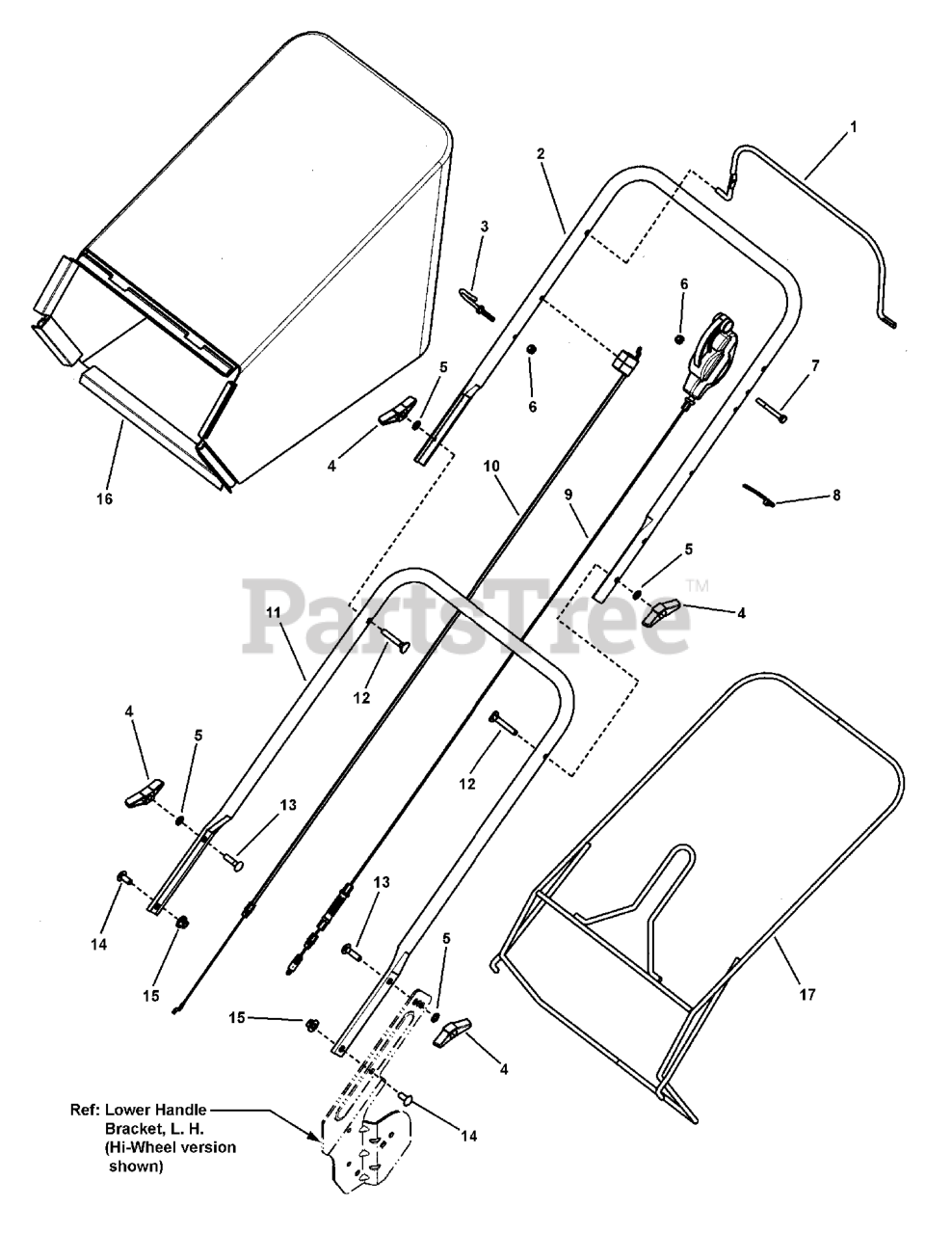

Handles & Controls (Self-Propelled) Parts Diagram

  • Title
1

Murray 7101676AMA

BAIL, OPC Propelled

$12.99

$

Usually ships in 2-12 days

0

2

Murray 7300705AMA

UPPER HANDLE, Propelled

$51.99

$

Usually ships in 2-12 days

0

3

Murray 071530MA

GUIDE, Rope (1/4-20 thread)

$5.99

$

Usually ships in 2-12 days

0

4

Murray 671294MA

KNOB, 5/16-18 Wing (Black)
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

5

Murray 7090391SM

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

6

Murray 7076978SM

NUT, 1/4-20 Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

7

Murray 7090892YP

SCREW, 1/4-20 x 2-1/4 Hex Head Cap, GR 5
(Superseded to 1960346SM)

$4.99

$

Usually ships in 2-12 days

0

8

Murray 7024649YP

WIRE TIE, 11 Inch Std Black Nylon

$5.49

$

Usually ships in 2-12 days

0

9

Murray 7101858YP

CONTROL, Drive, Single Speed Std Wheel

Note: used on MP2265 Model

$60.99

$

Usually ships in 2-12 days

0

9

Murray 1101670MA

CONTROL, Drive, Single Speed Hi-Wheel

Note: used on MP22675HW Model

$54.99

$

In Stock, Qty 8

0

10

Murray 7101862YP

CABLE, Bail, Std Propelled (53.50" overall length)

Note: used on MP2265 Model

$28.99

$

In Stock, only 3 left!

0

10

Murray 7101861MA

CABLE, Bail, Hi-Wheel Propelled (58.00" overall length)

Note: used on MP22675HW Model

$16.99

$

In Stock, Qty 6

0

11

Murray 7301013AYP

HANDLE, Lower

$143.99

$

Usually ships in 2-12 days

0

12

Murray 7091189YP

BOLT, 5/16-18 x 2" Curved Head Square Neck GR 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 14

0

13

Murray 7091714YP

BOLT, 5/16-18 x 1" Square Neck Carriage
(Superseded to 703483)

$3.99

$

In Stock, only 1 left!

0

14

Murray 7091508SM

BOLT 5/16-18 x 3/4" Round Head Short Square Neck
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

15

Murray 7090951SM

NUT, 5/16-18 Large Flange Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0

16

Murray 7102573YP

GRASS BAG, 22" Rear Discharge

$128.99

$

Usually ships in 2-12 days

0

17

Murray 7101230AYP

WELDMENT, Frame, Grass Bag, 22" Walk-Behind

$222.99

$

Usually ships in 2-12 days

0
