MP 22675 FC (7800683) - Murray 22" Walk-Behind Mower, Canada (2010) Engine, Blade & Front Cover Parts Diagram

22" Walk-Behind Mower, Canada

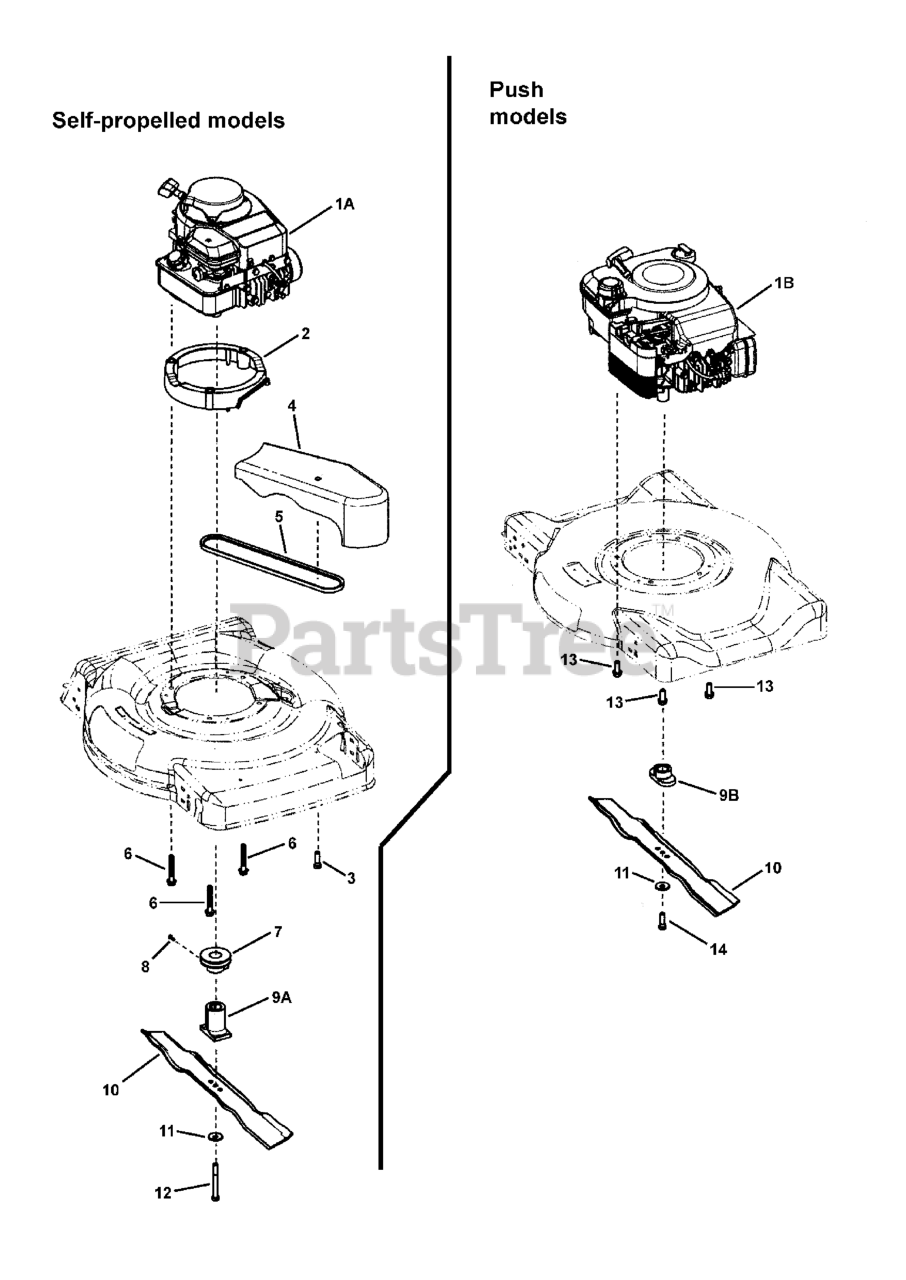

Engine, Blade & Front Cover Parts Diagram

  • Title

1A

Murray 124T02-0301-B1

* ENGINE, B&S, 650 Ser, B1, X-Spec

Note: (Engine Model: 124T02-0301-B1)

$

$

Currently unavailable

1A

Murray 126T02-0177-B1

* ENGINE, B&S, 675 Ser, B1, FC, X-Spec

Note: (Engine Model: 126T02-0177-B1)

$

$

Currently unavailable

1B

Murray 10T802-0155-B1

* ENGINE, B&S, 550 Ser, B3, X-Spec

Note: (Engine Model: 10T802-0155-B1)

$

$

Currently unavailable

2

Murray 7101449YP

** ASSEMBLY, Engine Spacer, 22" WBM, Propelled

$64.99

$

Usually ships in 2-12 days

0

3

Murray 7900018YP

SCREW, #10-24 x 2-1/2
(Superseded to 703834)

Note: (Used on self-propelled models)

$4.49

$

In Stock, only 4 left!

0

4

Murray 1101596MA

COVER, Belt, Plastic

Note: (Used on self-propelled models)

$37.99

$

Usually ships in 2-12 days

0

5

Murray 7101193MA

BELT, Drive, SS, 3L sect. 33-3/4 Long

$22.99

$

In Stock, only 2 left!

0

6

Murray 025X11MA

BOLT, Hex Washer, 3/8-16 x 2-1/2

$6.99

$

Usually ships in 2-12 days

0

7

Murray 7100763MA

PULLEY, Engine

$12.99

$

Usually ships in 2-12 days

0

8

Murray 26X303MA

SCREW, Poly, #8-11 x 5/8

$3.99

$

Usually ships in 2-12 days

0

9A

Murray 7100740YP

HUB, Blade, Self Propelled

Note: (Used on self-propelled models)

$15.99

$

Usually ships in 2-12 days

0

9B

Murray 1101825MA

HUB, Blade, Push

Note: (Used on push models)

$11.99

$

In Stock, only 1 left!

0

10

Murray 7100851AYP

BLADE

$19.99

$

In Stock, only 1 left!

0

11

Murray 1101989MA

WASHER, Bellville, 3/8 ID x 1-1/8 OD

$5.49

$

Usually ships in 2-12 days

0

12

Murray 01X144MA

BOLT, Hex Head, 3/8-24 x 3-1/4, GR 8

$5.49

$

In Stock, only 3 left!

0

13

Murray 7090324SM

SCREW, Hex Washer, Self Tap, 3/8-16 x 1
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

14

Murray 7090824YP

CAPSCREW, Hex Head, 3/8-24 x 1-1/4, GR 5

$4.99

$

In Stock, Qty 9

0
