MP 2265 FC (7800465) - Murray 22" Walk-Behind Mower, Canada (2009) Deck Assembly - Self-Propelled, Standard Wheels Parts Diagram

22" Walk-Behind Mower, Canada

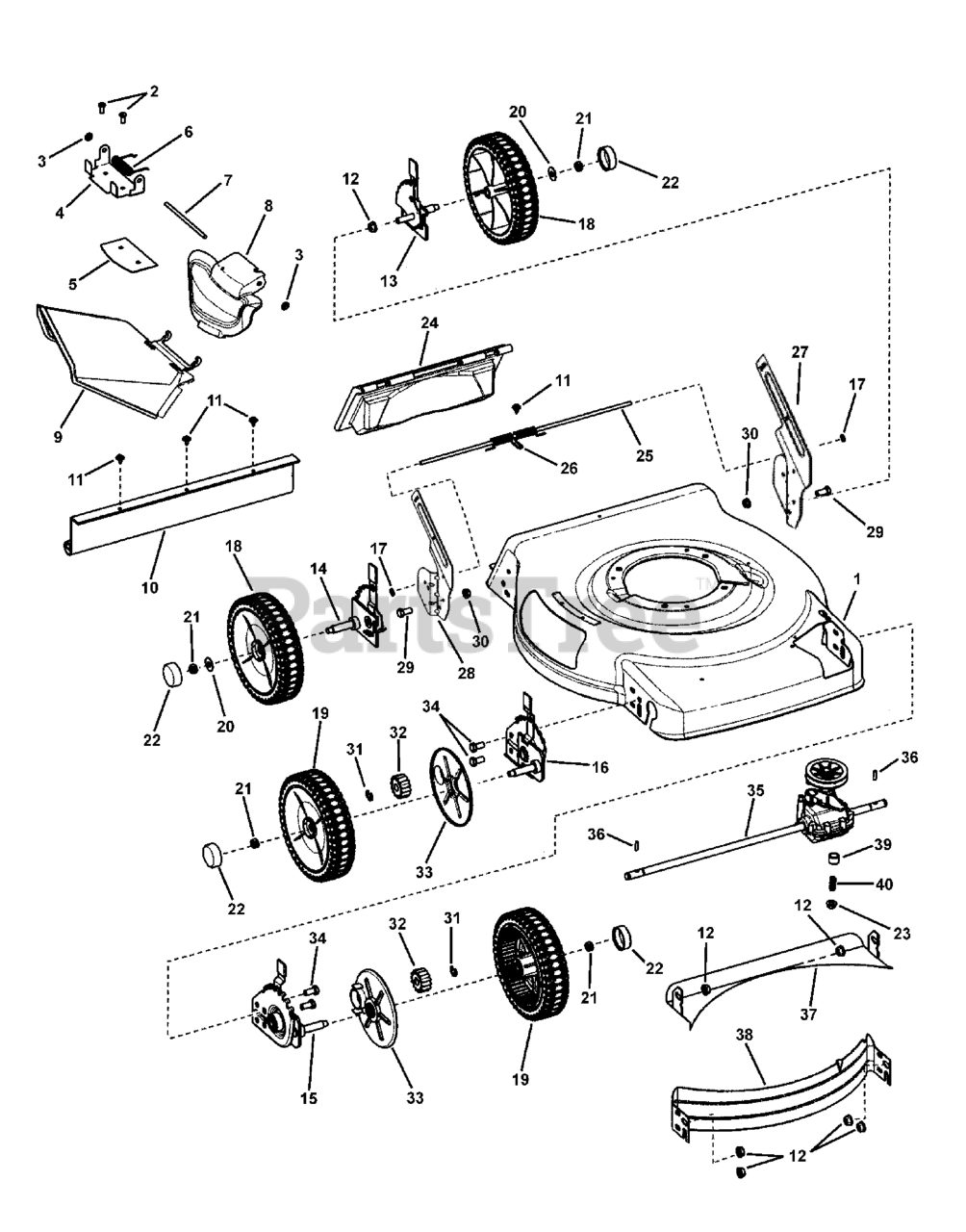

Deck Assembly - Self-Propelled, Standard Wheels Parts Diagram

  • Title

1

Murray 7300400BIYP

DECK, 22" Walk, 3-N-1

$230.99

$

Usually ships in 2-12 days

0

2

Murray 7900067YP

SCREW, Pan Head, Self Tap, Torx, 1/4-20 x 1/2

$4.49

$

In Stock, Qty 20+

0

3

Murray 7091020YP

PUSHNUT, 1/4
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

4

Murray 7300855BIYP

BRACKET, Chute

$9.99

$

Usually ships in 2-12 days

0

5

Murray 7300856BIYP

PLATE, Mulch

$5.49

$

Usually ships in 2-12 days

0

6

Murray 166X38MA

SPRING, Chute, Torsion

$4.99

$

In Stock, only 2 left!

0

7

Murray 215X19ZMA

ROD, Chute Pivot
(Superseded to 7101067YP)

$6.99

$

Usually ships in 2-12 days

0

8

Murray 1101098MA

COVER, Mulch

$33.99

$

In Stock, only 1 left!

0

9

Murray 1101097MA

SIDE CHUTE

$39.99

$

Usually ships in 2-12 days

0

10

Murray 7103347YP

GUARD, Rear

$

$

Not available

11

Murray 7091286YP

SCREW, Hex Washer, Self Tap, Sems, #10-24 x 1/2

$4.99

$

In Stock, Qty 12

0

12

Murray 7900053MA

NUT, 3/8-16 Hex Flange Lock, GR 5

$3.99

$

Usually ships in 2-12 days

0

13

Murray 7501066YP

ASSEMBLY, Height-of-Cut, Left Rear, 7 Position

$21.99

$

Usually ships in 2-12 days

0

14

Murray 7501065YP

ASSEMBLY, Height-of-Cut, Right Rear, 7 Position

$60.99

$

Usually ships in 2-12 days

0

15

Murray 7501061YP

ASSEMBLY, Height-of-Cut, Left Front, Self-Prop, 7 Position

$

$

Not available

16

Murray 7501062YP

ASSEMBLY, Height-of-Cut, Right Front, Self-Prop, 7 Position

$49.99

$

Usually ships in 2-12 days

0

17

Murray 028X49MA

CAP, Retainer

$3.99

$

In Stock, Qty 13

0

18

Murray 7501389YP

WHEEL, 8 x 2, Idle

$40.99

$

In Stock, only 2 left!

0

19

Murray 7501390YP

WHEEL, 8 x 2, Drive

$40.99

$

Usually ships in 2-12 days

0

20

Murray 17X169MA

WASHER, Flat, 3/8 ID x 1 OD
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

21

Murray 7091585SM

NUT, Hex Centerlock, 3/8-16
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

22

Murray 7101351MA

HUBCAP

$4.99

$

Usually ships in 2-12 days

0

23

Murray 015X88MA

NUT, Hex Flange Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

24

Murray 7101243YP

DOOR, Rear Discharge

$51.99

$

Usually ships in 2-12 days

0

25

Murray 7101070YP

ROD, Pivot, Rear Door

$6.49

$

Usually ships in 2-12 days

0

26

Murray 7101461YP

SPRING, Torsion, Rear Door

$6.99

$

Usually ships in 2-12 days

0

27

Murray 7300669AYP

BRACKET, Lower Handle, Right

$31.99

$

In Stock, only 1 left!

0

28

Murray 7300668AYP

BRACKET, Lower Handle, Left

$31.99

$

Usually ships in 2-12 days

0

29

Murray 7090606SM

BOLT, Hex Flange Lock, 5/16-18 x 5/8
(Superseded to 703823)

$3.99

$

In Stock, Qty 5

0

30

Murray 7090951SM

NUT, Flange Lock, 5/16-18
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0

31

Murray 7014341YP

RING, External Retaining
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

32

Murray 7101207YP

GEAR, Pinion

$8.49

$

In Stock, only 2 left!

0

33

Murray 7101402YP

SHIELD, Dust

$7.49

$

In Stock, only 2 left!

0

34

Murray 7091086YP

CAPSCREW, Hex Head, 3/8-16 x 3/4, GR 5
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

35

Murray 7101206MA

TRANSMISSION, Single Speed, Front Wheel Drive

$137.99

$

Usually ships in 2-12 days

0

36

Murray 7101270YP

DRIVE PIN

$5.49

$

In Stock, only 2 left!

0

37

Murray 7300854BIYP

BAFFLE, Rear

$35.99

$

Usually ships in 2-12 days

0

38

Murray 7300440BIYP

BAFFLE, Front

$133.99

$

Usually ships in 2-12 days

0

39

Murray 7102671YP

SPACER, Engine

$3.99

$

Usually ships in 2-12 days

0

40

Murray 164X27MA

SPRING, Compression

$3.99

$

Usually ships in 2-12 days

0
