MP 2265 (7800455) - Murray 22" Walk-Behind Mower (2010) Engine, Blade & Front Cover Parts Diagram

22" Walk-Behind Mower

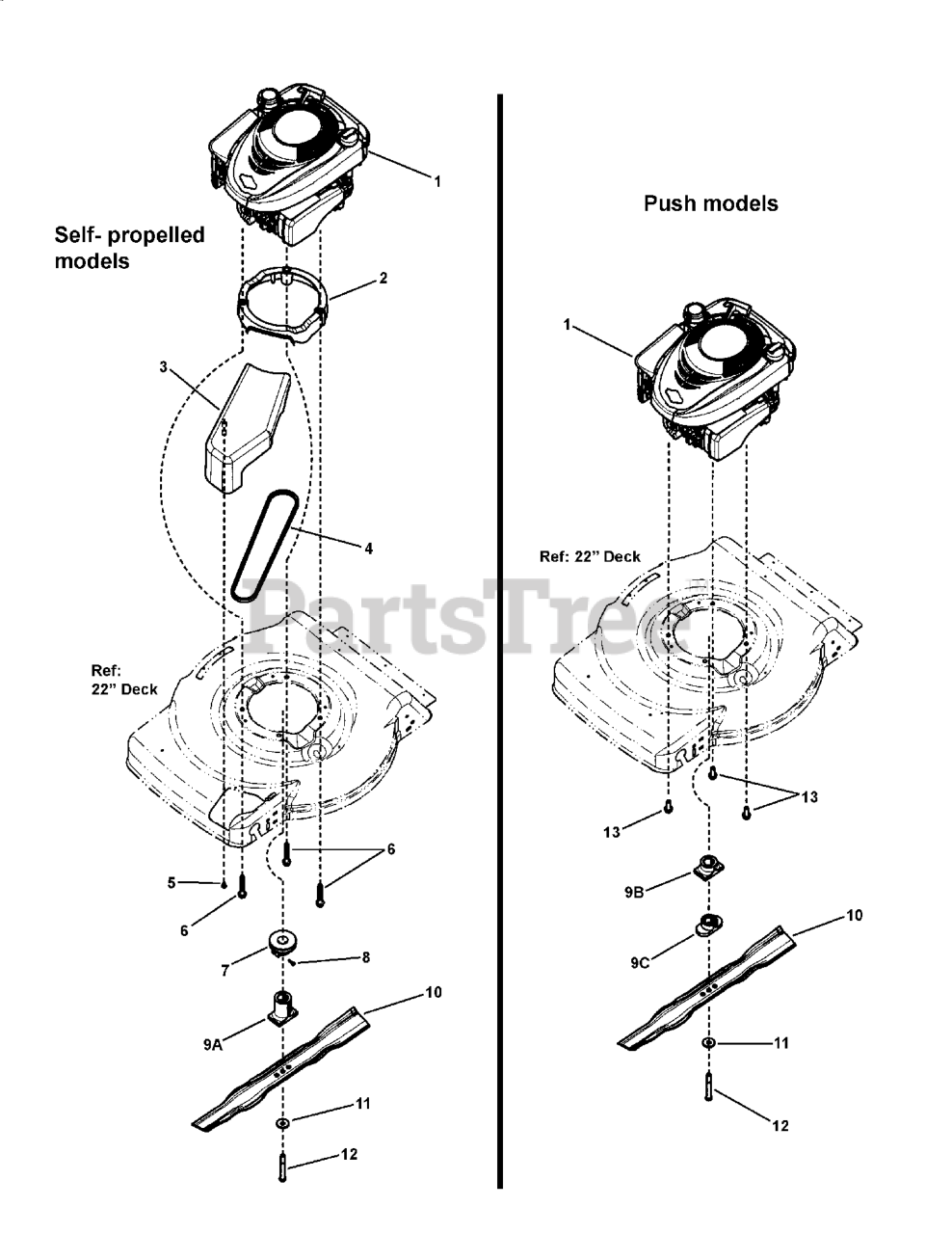

Engine, Blade & Front Cover Parts Diagram

  • Title

1

Murray 124T02-0650-B3

* ENGINE, B&S, 650 Ser, B3, X-Spec

Note: used on M2265HW & MP2265

$

$

Currently unavailable

1

Murray 126T02-0675-B3

* ENGINE, B&S, 675 Ser, B3, X-Spec

Note: used on MP22675HW

$

$

Currently unavailable

1

Murray 10T802-0144-B1

* ENGINE, B&S, 550 Ser, X, B3

Note: used on M2250

$

$

Currently unavailable

2

Murray 7101449YP

** ASSY, Engine Spacer, 22" WBM, Propelled

$64.99

$

Usually ships in 2-12 days

0

3

Murray 1101596MA

COVER, Belt, Plastic

$37.99

$

Usually ships in 2-12 days

0

4

Murray 7101193MA

BELT, Drive 22" WBM, SS (3L sect. 33.75 effective length)

$22.99

$

In Stock, only 2 left!

0

5

Murray 7900018YP

SCREW, Hi-Lo, 4.8 x 1.59 x 13mm Round Washer Head
(Superseded to 703834)

$4.49

$

In Stock, only 4 left!

0

6

Murray 025X11MA

BOLT, 3/8-16 x 2-1/2" Hex Washer Face

$6.99

$

Usually ships in 2-12 days

0

7

Murray 7100763MA

PULLEY, Engine, 22" Deck, Single Speed

$12.99

$

Usually ships in 2-12 days

0

8

Murray 26X303MA

SCREW, #8-11 x 5/8" Poly

$3.99

$

Usually ships in 2-12 days

0

9A

Murray 7100740YP

HUB, Blade, 22" S. P. Deck

Note: used on self-propelled models

$15.99

$

Usually ships in 2-12 days

0

9B

Murray 7100862YP

HUB, Blade, 22" Push

Note: used on push models with hi-wheels

$8.49

$

Usually ships in 2-12 days

0

9C

Murray 1101825MA

HUB, Blade, 22" Push

Note: used on push models with standard wheels

$11.99

$

In Stock, only 1 left!

0

10

Murray 7100851AYP

BLADE, 22" Walk Mower

$19.99

$

In Stock, only 1 left!

0

11

Murray 1101989MA

WASHER, Bellville, .38" ID x 1.183 OD

$5.49

$

Usually ships in 2-12 days

0

12

Murray 01X144MA

BOLT, 3/8-24 x 3-1/4" Hex Head, GR 8

$5.49

$

In Stock, only 3 left!

0

13

Murray 7090324SM

HWST, 3/8C X1 BZ
(Superseded to 704000)

$4.99

$

In Stock, only 1 left!

0
