MP 20500 (866073-00) - Snapper 20" Walk-Behind Mower, 5hp Handles Group Parts Diagram

20" Walk-Behind Mower, 5hp

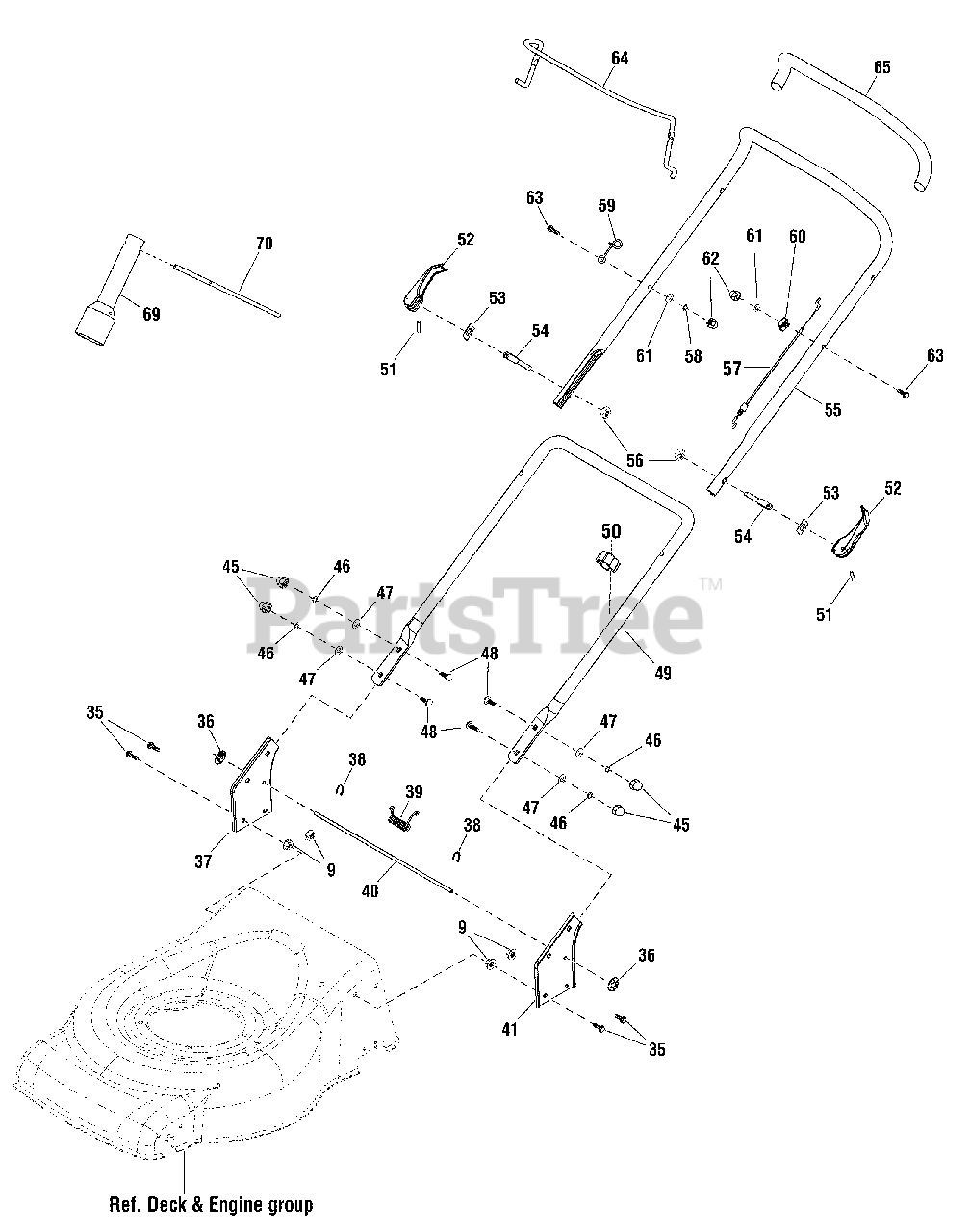

Handles Group Parts Diagram

  • Title
9

* NUT, Hex Lock

$

$

Not available

35

* BOLT, Hex

$

$

Not available

36

Snapper 704508

CLAMP, Wheel

$

$

Currently unavailable

37

Snapper 704509

SUPPORT, Handle, RH

$14.99

$

Usually ships in 2-12 days

0

38

Snapper 704510

WASHER, Split

$

$

Currently unavailable

39

Snapper 704511

SPRING, Rear Cover

$3.99

$

Usually ships in 2-12 days

0

$

$

Currently unavailable

41

Snapper 704513

SUPPORT, Handle, LH

$14.99

$

Usually ships in 2-12 days

0

45

$3.49

$

Usually ships in 2-12 days

0

46

Snapper 704515

WASHER, Spring

$

$

Currently unavailable

47

* WASHER, Flat

$

$

Not available

48

Snapper 704516

BOLT, Cup Head Square Neck

$

$

Currently unavailable

49

Snapper 704517

HANDLE, Lower

$

$

Currently unavailable

50

* CLAMP, Cable

$

$

Not available

$3.49

$

Usually ships in 2-12 days

0

52

Snapper 704519

LEVER, Locking

$5.49

$

Usually ships in 2-12 days

0

53

Snapper 705832

PLATE, Pressing

$2.99

$

Usually ships in 2-12 days

0

54

$4.49

$

Usually ships in 2-12 days

0

55

Snapper 704521

HANDLE, Upper

$153.99

$

Usually ships in 2-12 days

0

56

* NUT, Hex Lock

$

$

Not available

57

Snapper 704522

CABLE, Brake

$18.99

$

In Stock, only 1 left!

0

58

Snapper 704523

WASHER, Spring

$

$

Currently unavailable

59

Snapper 704524

CABLE HOOK

$

$

Currently unavailable

60

Snapper 704525

CLAMP, Cable

$3.99

$

Usually ships in 2-12 days

0

61

* WASHER, Flat

$

$

Not available

62

$

$

Currently unavailable

63

* BOLT, Hex

$

$

Not available

64

Snapper 704527

BAIL, Brake

$37.99

$

Usually ships in 2-12 days

0

65

$15.99

$

Usually ships in 2-12 days

0

69

Snapper 704532

SLEEVE WRENCH

$

$

Currently unavailable

70

Snapper 704533

HANDLE, Wrench

$

$

Currently unavailable
