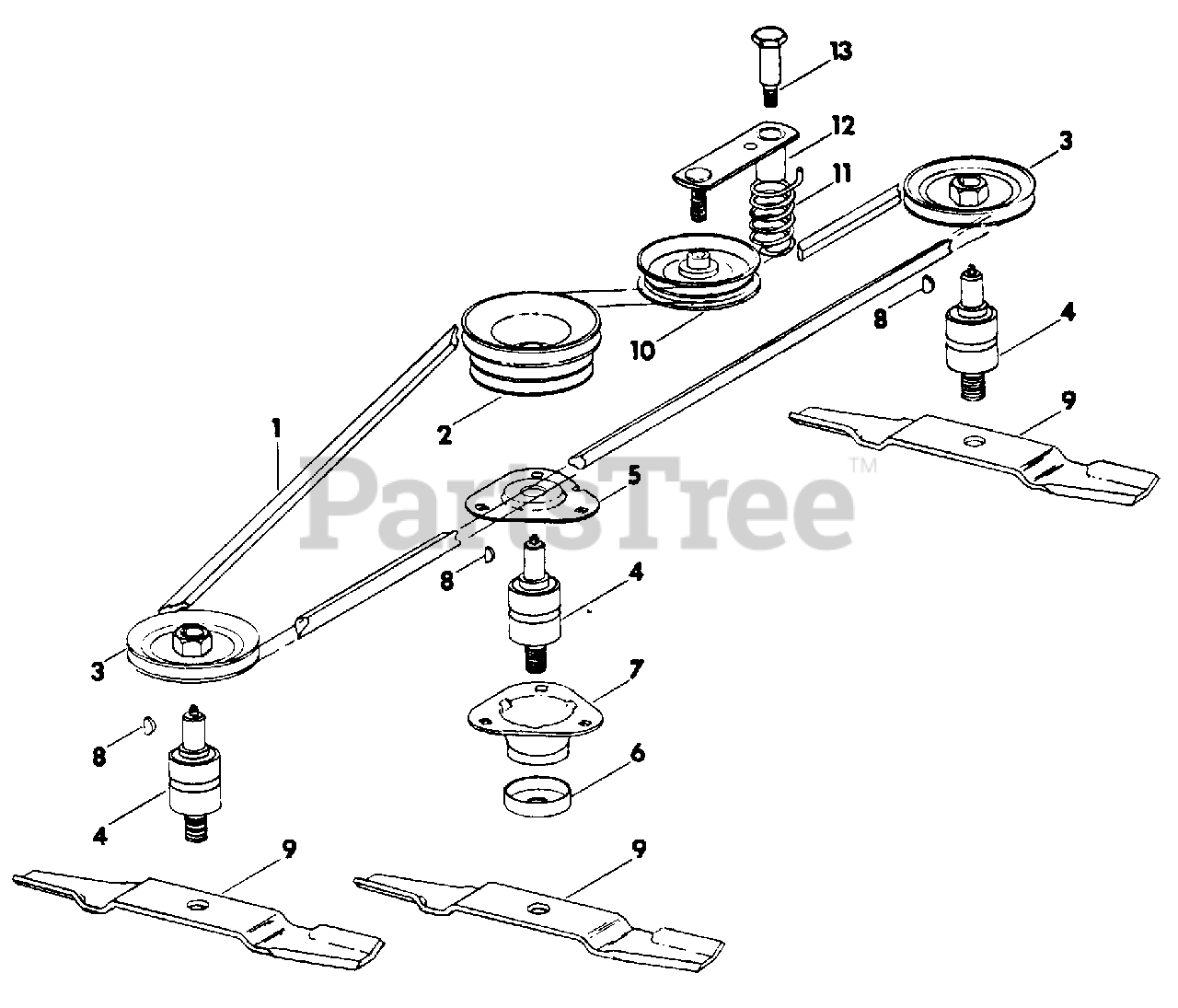

Mower Deck - Cub Cadet 44", 50" Mower Deck, 3 Blade Drive Parts Diagram

44", 50" Mower Deck, 3 Blade

Drive Parts Diagram

  • Title

1

Cub Cadet 954-3004

Belt, Spindle Drive -For 44 In. Mower

$48.99

$

In Stock, Qty 7

0

Cub Cadet 954-3005

Belt, Spindle Drive -For 50 In. Mower

$55.99

$

In Stock, Qty 5

0

2

Cub Cadet IH-59703-C3

Pulley, Center
(Superseded to IH-59703-C2)

$

$

Not available

3

Cub Cadet 756-3008

Pulley, Outer

$53.99

$

In Stock, Qty 6

0

4

Cub Cadet IH-ST745

Bearing, Ball
(Superseded to 759-3479P)

$307.99

$

Usually ships in 3-6 days

0

Cub Cadet 912-3021

Nut, 3/4-16 Znd Nylon Hex Lock

$

$

Not available

5

Cub Cadet 703-0115

Cap, Spindle Housing
(Superseded to 703-0115-0499)

Variations

Cub Cadet 703-0115-0499

CAP-SPINDLE HOUSING - CUB BEIGE (0499)

$38.99

$

Usually ships in 3-6 days

0

$38.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 903-1387

Cup, Spindle

$24.99

$

In Stock, Qty 11

0

7

Cub Cadet 903-0117

Housing, Spindle

$

$

Not available

Cub Cadet 710-3097

Bolt, 3/8 X 1 Znd Sq-Nk Crg

$6.99

$

In Stock, Qty 5

0

Cub Cadet 936-0169

Washer, 3/8 Znd Reg Lock
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 912-0798

Nut, 3/8-16 Znd Hex
(Superseded to 712-0798)

$4.49

$

In Stock, Qty 12

0

8

Cub Cadet 914-0135

Key, 1/4 X 3/4 Woodruff 91
(Superseded to 714-0135)

$

$

Not available

9

Cub Cadet 759-3838

Blade, 44 In. Mower Hard Surface -Optional w/59 704 C1
(Superseded to 759-3402-0637)

$71.99

$

In Stock, Qty 11

0

Cub Cadet 759-3812

Blade, 44 In. Mower -Optional w/61 103 C1
(Superseded to 742P3002)

$26.99

$

In Stock, only 3 left!

0

Cub Cadet 759-3837

Blade, 50 In. Mower Hard Surface -Optional w/59 705 C1

$

$

Not available

Cub Cadet 759-3813

Blade, 50 In. Mower -Optional w/61 104 C1
(Superseded to 742P3003)

$29.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 756-3005

Pulley, Flat Idler

$45.99

$

In Stock, Qty 20+

0

11

Cub Cadet 932-3009

Spring, Torsion

$24.99

$

In Stock, only 4 left!

0

NLA

Washer, 15/32 X 7/8 X 11 Ga Znd

$

$

Not available

Cub Cadet 936-0171

Washer, 7/16 Znd Reg Lock
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

Cub Cadet 912-3019

Nut, 7/16-14 Znd Hex
(Superseded to 712-3019)

$6.99

$

In Stock, only 1 left!

0

NLA

Nut, 3/8-16 Znd Hex Nylon Lock

$

$

Not available

Cub Cadet IH-21438-R1

Screw, 3/8 X 3/4 Znp P/Hds Mach

$

$

Not available

12

Cub Cadet 703-0118-0498

Arm Assy, Idler
(Superseded to 759-04324B)

$188.99

$

In Stock, Qty 16

0

Cub Cadet 912-3000

Nut, 3/8-16 Cpd Hex Lock
(Superseded to 712-3000)

$4.49

$

In Stock, Qty 9

0

13

Cub Cadet 938-3005A

Bolt, Idler Arm Pivot
(Superseded to 638-04012A)

$21.99

$

In Stock, Qty 5

0

Cub Cadet IH-55172-C92

Package, Product Graphics

$

$

Not available

NLA

Product Graphic, IH

$

$

Not available
