Mower Deck - Cub Cadet 38" Mower Deck, 3-Spindle 3 Spindle - Gauge Wheel Attachment Parts Diagram

38" Mower Deck, 3-Spindle

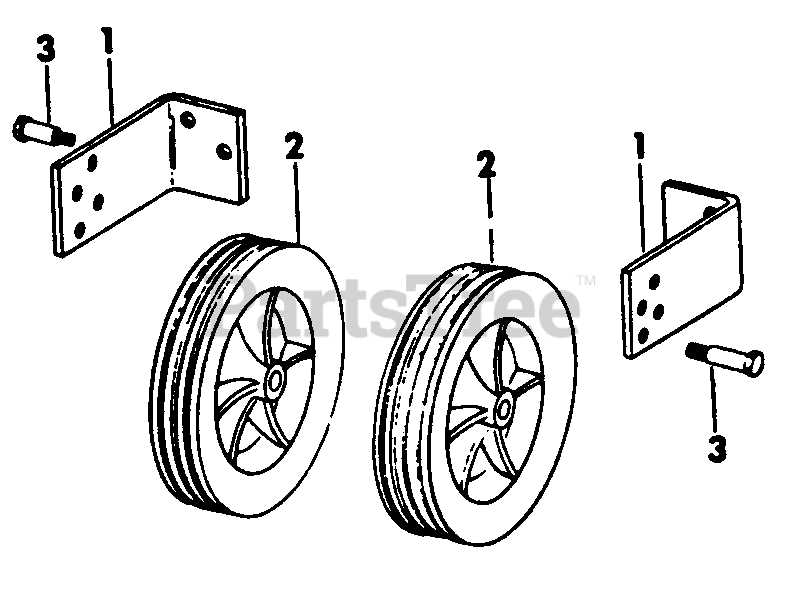

3 Spindle - Gauge Wheel Attachment Parts Diagram

  • Title

1

Cub Cadet 489-340-R1

Arm, Gauge Wheel LH

$

$

Currently unavailable

Cub Cadet IH-180121

Screw, 3/8-16 X 7/8 Znd Hex-Hd Cap

$

$

Not available

Cub Cadet IH-120382

Washer, 3/8 Znd Reg Lock
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

Nut, 3/8-16 Znd Hex
(Superseded to 712-0798)

$4.49

$

In Stock, only 2 left!

0

Cub Cadet 489-341-R1

Arm, Gauge Wheel RH

$

$

Currently unavailable

2

Cub Cadet 479-427-R91

Wheel, 7 In. Gauge

$

$

Currently unavailable

3

Cub Cadet 489-429-R1

Bolt, Shoulder

$

$

Currently unavailable

Cub Cadet IH-120377

Nut, 3/8-16 Znd Hex
(Superseded to 712-0798)

$4.49

$

In Stock, only 2 left!

0

Cub Cadet IH-120394

Washer, 13/32 X 13/16 X .065 Znd
(Superseded to 936-0140)

$

$

Not available

Cub Cadet IH-124829

Nut, 3/8-16 Znd Hex Jam
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

Cub Cadet IH-120382

Washer, 3/8 Znd Reg Lock
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-180121

Screw, 3/8-16 X 7/8 Znd Hex-Hd Cap

$

$

Not available
