Mower Deck - Cub Cadet 38" Mower Deck, 3-Spindle 3 Spindle - Adapting Package Parts Diagram

38" Mower Deck, 3-Spindle

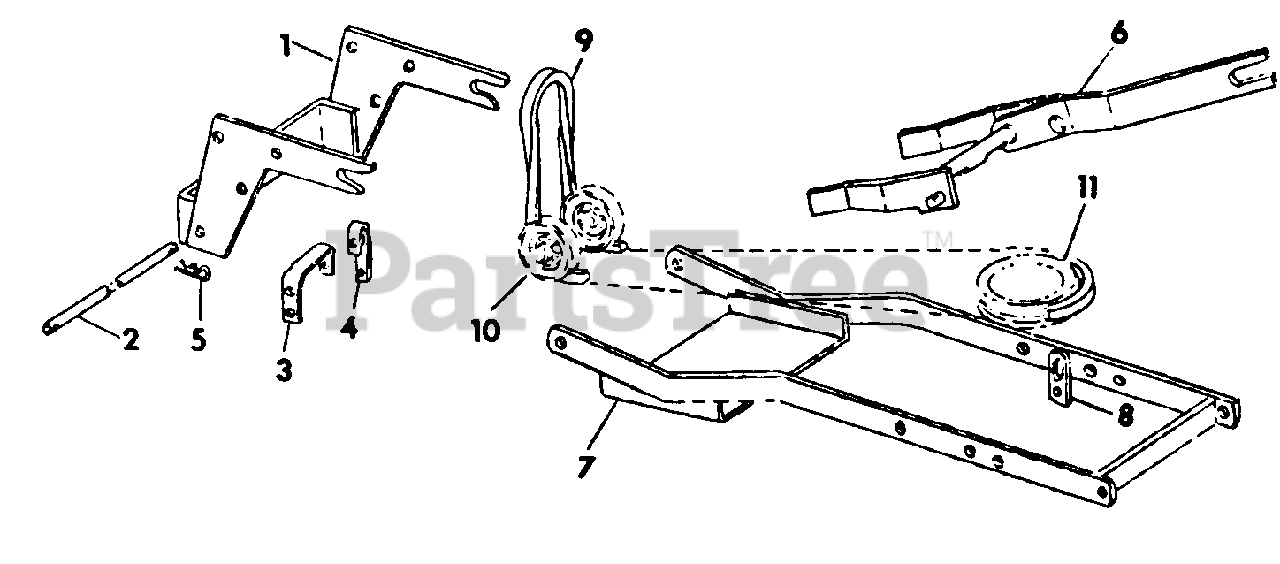

3 Spindle - Adapting Package Parts Diagram

  • Title

Cub Cadet 62-217-C91

Adapting Package

$

$

Currently unavailable

1

Cub Cadet 547-434-R2

Hanger Assy, Front

$

$

Currently unavailable

2

Cub Cadet 547-435-R1

Rod, Front Mounting

$

$

Currently unavailable

Cub Cadet IH-137175

Pin, 3/32 X 1-1/8 C-Z Cotter
(Superseded to 914-0111)

$4.99

$

In Stock, Qty 13

0

3

Cub Cadet 489-601-R1

Support, Idler LH

$

$

Currently unavailable

4

Cub Cadet 489-602-R1

Support, Idler RH

$

$

Currently unavailable

5

Cub Cadet 473-443-R1

Pin, Quick Attachable Cotter

$

$

Currently unavailable

Cub Cadet 21-903-R1

Washer, 17/32 X 3/4 X 16 Ga C-Z

$

$

Currently unavailable

Cub Cadet 364-436-R1

Pin, 3/16 X 1 Hv Coiled Spring

$

$

Currently unavailable

6

Cub Cadet 489-380-R3

Support Assy, Front Pivot Link

$

$

Currently unavailable

Cub Cadet 21-829-R1

Pin, 3/16 X 1-1/8 C-Z Cotter

$

$

Currently unavailable

7

Cub Cadet 490-467-R1

Arm Assy, Frame Side

$

$

Currently unavailable

8

Cub Cadet 473-454-R92

Link Assy, Lift

$

$

Currently unavailable

Cub Cadet IH-137175

Pin, 3/32 X 1-1/8 C-Z Cotter
(Superseded to 914-0111)

$4.99

$

In Stock, Qty 13

0

9

Cub Cadet 490-489-R2

Belt, Mule Drive

$

$

Currently unavailable

10

Pulley, Drive Belt Idler -Refer to Hitch

$

$

Not available

11

Pulley, Center -Refer to Drive Unit

$

$

Not available
