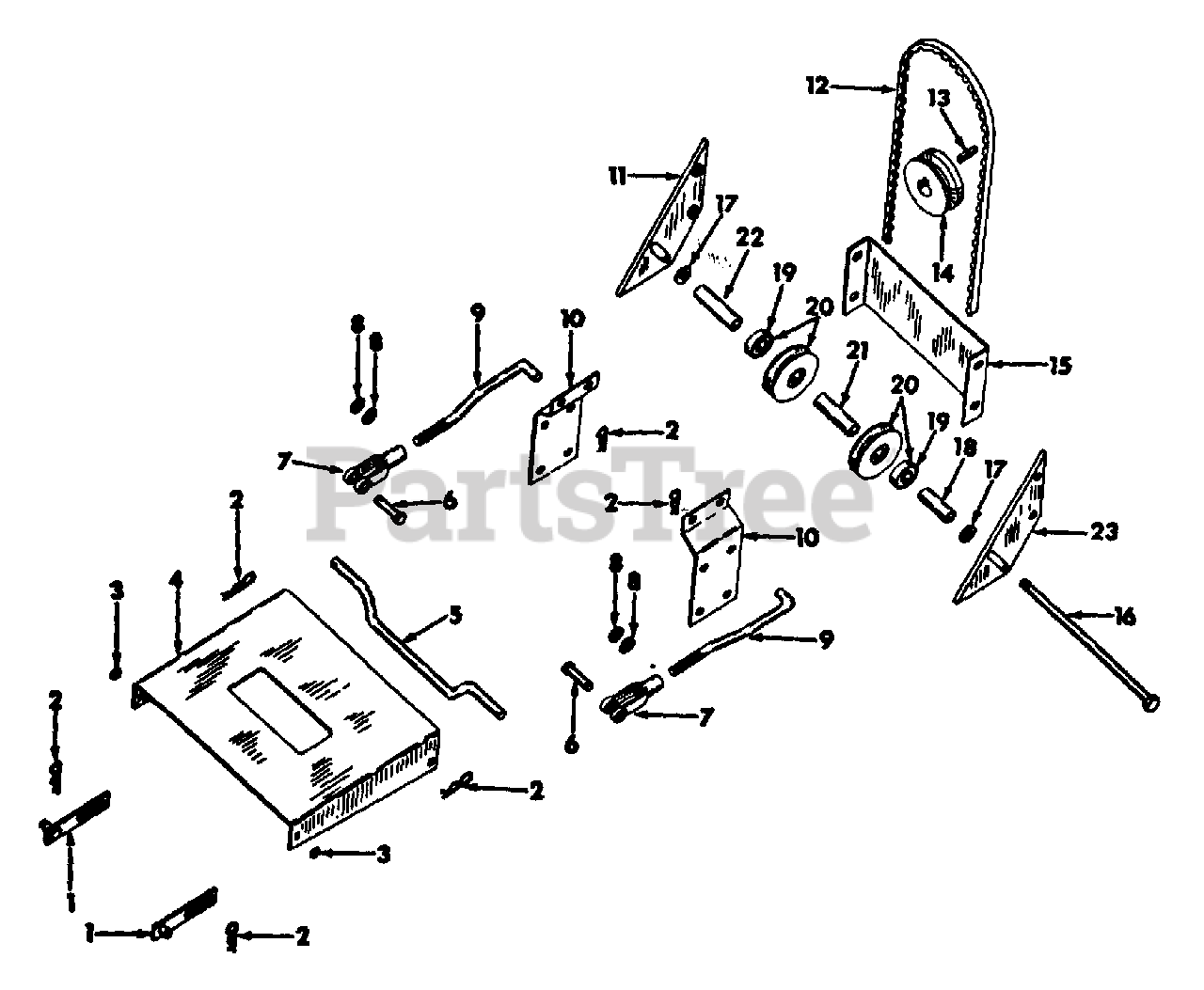

Mower Deck - Cub Cadet 38" Mower Deck, 2-Spindle Hitch and Drive Unit Part 1 Parts Diagram

38" Mower Deck, 2-Spindle

Hitch and Drive Unit Part 1 Parts Diagram

  • Title

1

Cub Cadet IH-464513-R91

LINK ASSY, LIFT

$

$

Not available

121224

PIN, 3/32 x 1 C-Z COTTER

$

$

Not available

Cub Cadet IH-178373-R1

WASHER, 17/32 x 1 x 16 GA C-Z
(Superseded to 936-0160)

$4.49

$

In Stock, only 1 left!

0

2

Cub Cadet IH-610784-R1

PIN, QUICK ATTACHABLE COTTER
(Superseded to 714-3020)

$4.49

$

In Stock, Qty 20+

0

3

464510-R1

SPACER

$

$

Not available

4

464507-R91

LINK ASSY, LOWER PARALLEL

$

$

Not available

19417-R1

BOLT, 3/8 x 1 C-Z SQ-NK CRG

$

$

Not available

Cub Cadet IH-120377

NUT, 3/8 C-Z HEX.
(Superseded to 712-0798)

$4.49

$

In Stock, Qty 6

0

Cub Cadet IH-120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120394

WASHER, 13/32 x 13/16 x 16 GA C-Z
(Superseded to 936-0140)

$

$

Not available

5

Cub Cadet IH-464511-R1

ROD, LOWER LINK PIVOT

$

$

Not available

Cub Cadet IH-178373-R1

WASHER, 17/32 x 1 x 16 GA. C-2
(Superseded to 936-0160)

$4.49

$

In Stock, only 1 left!

0

6

Cub Cadet IH-114787

PIN, ROD END CLEVIS

$

$

Not available

Cub Cadet IH-137185

PIN, 1/8 x 1 C-Z COTTER
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

7

104039

CLEVIS, ROD END 1/2-20

$

$

Not available

8

Cub Cadet IH-27927-DA

WASHER, 17/32 x 7/8 x 8 GA

$

$

Not available

9

Cub Cadet IH-464512-R1

ROD, UPPER LINK

$

$

Not available

Cub Cadet IH-124934

NUT, 1/2-20 HEX. JAM
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

Cub Cadet IH-178373-R1

WASHER, 17/32 x 1 x 16 GA. C-Z
(Superseded to 936-0160)

$4.49

$

In Stock, only 1 left!

0

10

464509-R1

STRIP, UPPER PARALLEL LINK

$

$

Not available

17433-R1

BOLT, 1/2-13 x 1 C-Z HEX-HD MACH

$

$

Not available

Cub Cadet IH-120378

NUT, 1/2-13 C-Z HEX.
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120384

WASHER, 1/2 C-Z MED LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, only 2 left!

0

11

465057-R91

SUPPORT ASSY, TIGHTENER LH

$

$

Not available

Cub Cadet IH-180128

SCREW, 3/8-16 x 1-3/4 C-Z HEX-HD CAP
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet IH-464362-R1

BELT, DRIVE
(Superseded to 954-0226)

$46.99

$

Usually ships in 3-6 days

0

13

Cub Cadet IH-Q53

KEY, 1/4 SQ. x 1 PARALLEL
(Superseded to 714-0128)

$4.99

$

In Stock, Qty 6

0

14

Cub Cadet IH-464358-R1

PULLEY, ENGINE

$

$

Not available

102569

SCREW, 1/4 x 1/4 CUP-PT HEX-SOC SET

$

$

Not available

222386

SCREW, 1/4 x 1/4 FLAT PT HEX-SOC SET

$

$

Not available

15

464364-R1

SHIELD, FRONT PULLEY

$

$

Not available

16

18030-R1

BOLT, 5/8-11 x 10 C-Z HEX-HD MACH

$

$

Not available

124589

NUT, 5/8-11 C-Z HEX.

$

$

Not available

Cub Cadet IH-121574

WASHER, 5/8 C-Z MED LOCK
(Superseded to 936-0158)

$4.49

$

In Stock, Qty 11

0

17

IH-12258-R1

WASHER, 21/32 x 1-1/4 GA

$

$

Not available

18

Cub Cadet IH-464360-R1

SPACER, RIGHT IDLER

$

$

Not available

19

Cub Cadet IH-588825-R91

BEARING, PULLEY BALL
(Superseded to 941-0979)

$

$

Not available

20

Cub Cadet IH-464352-R91

PULLEY ASSY, TIGHTENER

$

$

Not available

21

Cub Cadet IH-464363-R1

SPACER, CENTER IDLER

$

$

Not available

22

Cub Cadet IH-464361-R1

SPACER, LEFT IDLER

$

$

Not available

23

465058-R91

SUPPORT ASSY, TIGHTENER RH

$

$

Not available

120128

SCREW, 3/8-16 x 1-3/4 C-Z HEX-HD CAP

$

$

Not available

Cub Cadet IH-120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0
