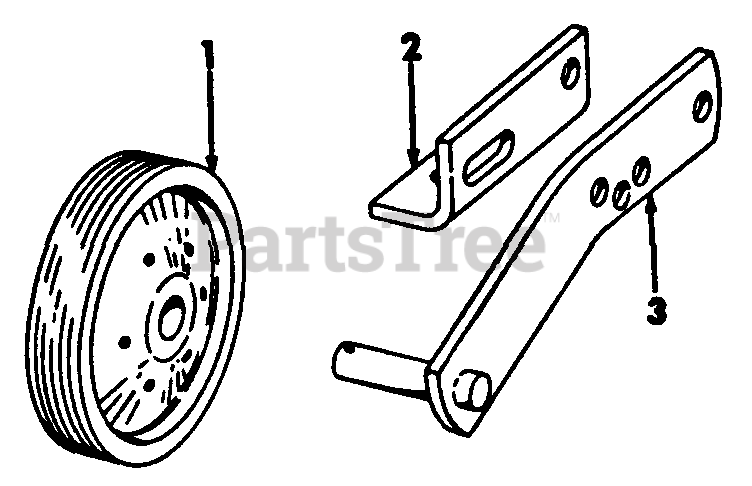

38" Mower Deck, 2-Spindle

Gauge Wheel Attachment Parts Diagram

  • Title

1

Cub Cadet IH-464521-R91

WHEEL, GAUGE

$

$

Not available

Cub Cadet IH-137185

PIN, 1/8 x 1 C-Z COTTER
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-178373-R1

WASHER, 17/32 x 1 x 16 GA C-Z
(Superseded to 936-0160)

$4.49

$

In Stock, Qty 9

0

2

Cub Cadet 464524-R1

BRACKET, GAUGE WHEEL LH

$

$

Currently unavailable

Cub Cadet 464525-R1

BRACKET, GAUGE WHEEL RH

$

$

Currently unavailable

Cub Cadet IH-18508-R1

BOLT 3/8 x 3/4 C-Z SQ-NK CRG
(Superseded to 710-0389)

$4.49

$

In Stock, Qty 10

0

Cub Cadet IH-124829

NUT, 3/8 C-Z HEX. JAM
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

Cub Cadet IH-120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 464516-R91

ARM ASSY, GAUGE WHEEL LH

$

$

Currently unavailable

Cub Cadet IH-464517-R91

ARM ASSY, GAUGE WHEEL RH

$

$

Currently unavailable

Cub Cadet IH-180122

SCREW, 3/8-16 x 1 C-Z HEX-HD CAP
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-124829

NUT, 3/8 C-Z HEX. JAM
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

Cub Cadet IH-120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 1001029-R3

PRODUCT GRAPHICS, IH

Note: ON LEFT SIDE OF HOUSING

$

$

Currently unavailable

Cub Cadet IH-1000693-R3

PRODUCT GRAPHICS, IH COMPANY OF CANADA
(Superseded to KH-82-755-28)

Note: ON LEFT SIDE OF HOUSING

$

$

Not available

Cub Cadet 1001718-R1

PRODUCT GRAPHICS, MADE IN U.S.A

Note: ON FRONT EDGE OF MOWER

$

$

Currently unavailable

Cub Cadet IH-2750863-R1

PRODUCT GRAPHICS, TIMING ARROW

Note: ON TOP OF HOUSING

$

$

Not available

Cub Cadet 2750866-R2

PRODUCT GRAPHICS, INSTRUCTION

$

$

Currently unavailable
