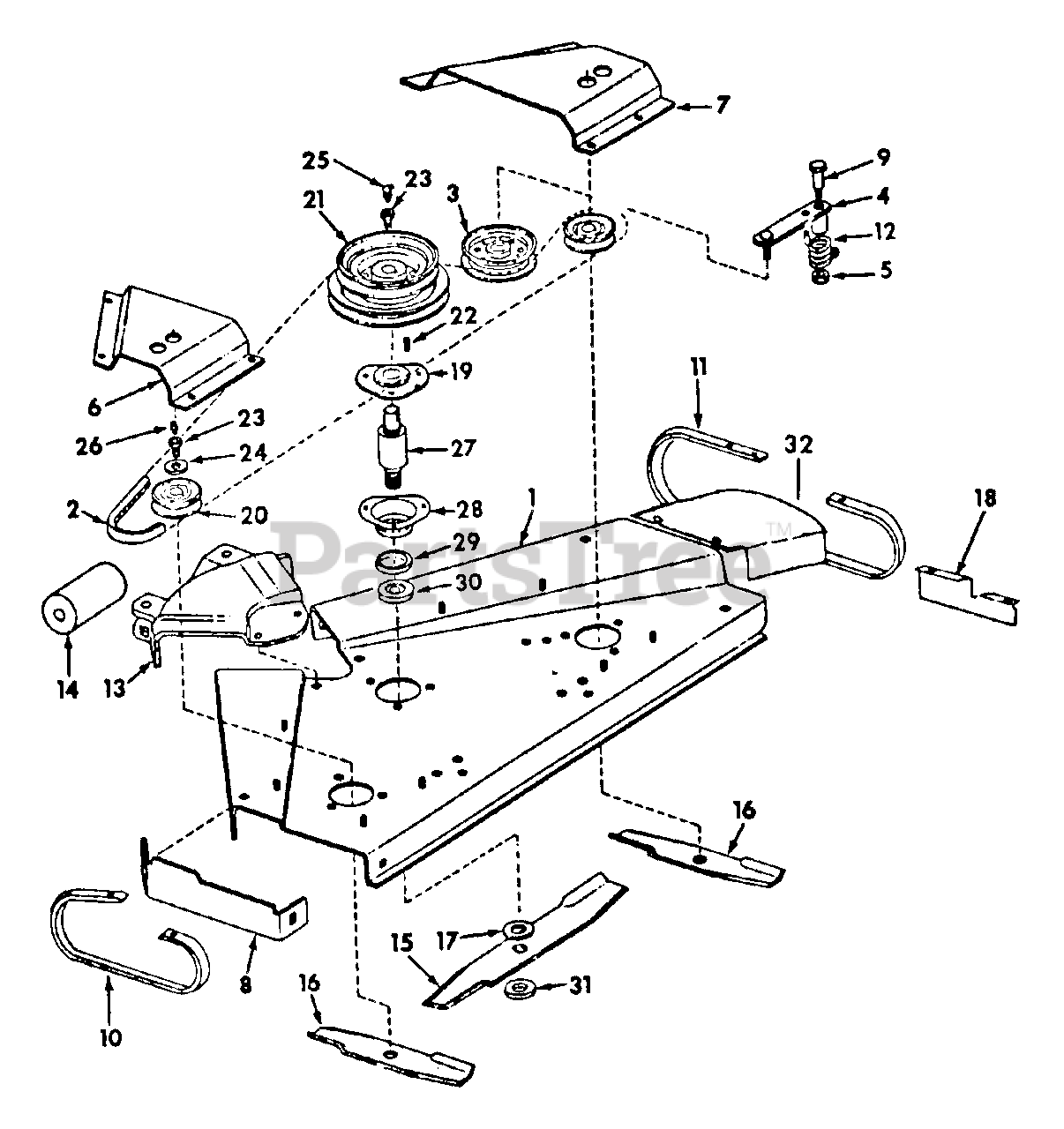

Main Frame and Knife Unit -38" and 42" Blade- Part 3 (1971-1974) Parts Diagram

  • Title

1

Cub Cadet IH-489336-R5

HOUSING ASSY, ROTOR; 38 IN. BLADE.

$

$

Currently unavailable

Cub Cadet IH-172451

SCREW, 5/16 x 5/8 H/HD TAP
(Superseded to 710-3021)

$

$

Not available

18494-R1

BOLT, 3/8 X 1 ZND HEX-HD MACH

$

$

Not available

Cub Cadet IH-489338-R4

HOUSING ASSY, ROTOR; 42 IN. BLADE.

$

$

Not available

Cub Cadet IH-171103

SCREW, 5/16-18 x 3/4 HEX-HD TAP

$

$

Not available

Cub Cadet 18494-RI

BOLT, 3/8 X 1 ZND HEX-HD MACH

$

$

Currently unavailable

2

Cub Cadet IH-473468-R2

BELT, SPINDLE DRIVE; 38 IN. BLADE.
(Superseded to 954-3002)

$41.99

$

In Stock, only 1 left!

0

Cub Cadet IH-477599-R2

BELT, SPINDLE DRIVE; 42 IN. BLADE.

$46.99

$

Usually ships in 3-6 days

0

3

Cub Cadet IH-542520-R91

PULLEY, FLAT IDLER
(Superseded to 756-3005)

$45.99

$

In Stock, Qty 20+

0

4

Cub Cadet IH-548457-R1

ARM ASSY, IDLER
(Superseded to 759-04324B)

$188.99

$

In Stock, Qty 16

0

5

Cub Cadet IH-385525-R1

NUT, CENTER LOCK
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

6

Cub Cadet IH-489342-R2

SHIELD, BELT LH
(Superseded to 703-0091)

$

$

Not available

Cub Cadet IH-120214

WASHER 5/16 C-Z MED LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

NUT, 5/16-18 C-Z HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet IH-489343-R1

SHIELD, BELT RH

$

$

Not available

Cub Cadet IH-120214

WASHER, 5/16 C-Z MED LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120375

NUT, 5/16-18 C-Z HEX.
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

8

Cub Cadet IH-489344-R2

SIDE, HOUSING LH; 38 IN. BLADE.

$

$

Not available

Cub Cadet IH-18508-R1

BOLT, 3/8 x 3/4 C-Z SO-NK CRG
(Superseded to 710-0389)

$4.49

$

In Stock, Qty 10

0

Cub Cadet HA-GM120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$4.49

$

In Stock, Qty 12

0

Cub Cadet IH-489350-R2

SIDE HOUSING LH; 42 IN. BLADE.
(Superseded to 759-3045-0499)

$

$

Not available

Cub Cadet IH-18508-R1

BOLT, 3/8 x 1-3/4 ZND SO-NK CRG
(Superseded to 710-0389)

$4.49

$

In Stock, Qty 10

0

18684-R1

BOLT, 3/8 x 1-1/4 C-Z SO-NK CRG

$

$

Not available

Cub Cadet HA-GM120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$4.49

$

In Stock, Qty 12

0

9

Cub Cadet IH-486360-R1

BOLT, IDLER ARM PIVOT
(Superseded to 638-04012A)

$21.99

$

In Stock, Qty 5

0

10

Cub Cadet IH-548273-R1

RUNNER, MOWER LH
(Superseded to 703-0094-0499)

$

$

Not available

22476-R1

BOLT, 3/8 x 1-1/8 ZND SQ-NK CRG

$

$

Not available

Cub Cadet HA-GM120382

WASHER 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$4.49

$

In Stock, Qty 12

0

11

Cub Cadet IH-548274-R1

RUNNER, MOWER RH
(Superseded to 703-0095-0499)

$

$

Not available

22476-R1

BOLT, 3/8 x 1-1/8 ZND SQ-W CRG

$

$

Not available

18684-R1

BOLT, 3/8 x 1-1/4 C-Z SQ-NK CRG

Note: 2 USED WITH 42 IN. BLADE

$

$

Not available

Cub Cadet HA-GM120382

WASHER, 3/8 ZND REG LOCK
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

NUT, 3/8-16 ZND HEX.
(Superseded to 712-0798)

$4.49

$

In Stock, Qty 12

0

12

Cub Cadet IH-548458-R1

SPRING, TORSION
(Superseded to 932-3009)

$24.99

$

In Stock, only 4 left!

0

21904-R1

WASHER, .469 x .875 x .105

$

$

Not available

Cub Cadet IH-120383

WASHER, 7/16 C-Z MED LOCK
(Superseded to 936-0171)

$4.49

$

In Stock, only 4 left!

0

Cub Cadet IH-271501

NUT, 7/16-14 C-Z HEX.
(Superseded to 912-3019)

$6.99

$

In Stock, only 1 left!

0

Cub Cadet HA-GM180122

SCREW, 3/8-16 x 1 ZND HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-21438-R1

SCREW, 3/8 x 3/4 ZNP P/HDS MACH

$

$

Not available

24764-R1

NUT, 3/8 P/T LOCK TYPE 5

$

$

Not available

13

Cub Cadet IH-489349-R3

HOUSING, CENTER

$

$

Not available

Cub Cadet IH-17351-R1

BOLT, 3/8 x 1 C-Z SQ-NK CRG
(Superseded to 710-3097)

$6.99

$

In Stock, Qty 5

0

Cub Cadet IH-21741-R1

WASHER, .406 x .875 x .105
(Superseded to 936-3004)

$

$

Not available

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$4.49

$

In Stock, Qty 12

0

14

Cub Cadet IH-489470-R1

ROLLER, FRONT
(Superseded to 731-3005)

$28.99

$

In Stock, Qty 20+

0

20914-R1

BOLT, 1/2 x 7-1/2 C-Z SQ-NK CRG

$

$

Not available

Cub Cadet IH-19676-R1

NUT 1/2-13 CDP NYLON INSERT

Note: OPTIONAL w/IH-19696-R1

$

$

Not available

15

Cub Cadet IH-490476-R1

BLADE, CENTER; 38 IN. BLADE HARD SURFACED
(Superseded to 759-3835)

Note: OPTIONAL w/IH-487761-R1

$69.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-487761-R1

BLADE, CENTER; 38 IN. BLADE

Note: OPTIONAL w/IH-490476-R1

$

$

Not available

Cub Cadet IH-490473-R1

BLADE, CENTER; 42 IN. BLADE HARD SURFACED
(Superseded to 759-3850)

Note: OPTIONAL w/IH-477597-R3

$

$

Not available

Cub Cadet IH-477597-R3

BLADE, CENTER; 42 IN. BLADE
(Superseded to IH-477597-R4)

Note: OPTIONAL w/IH-490473-R1

$53.99

$

Usually ships in 3-6 days

0

16

Cub Cadet IH-490470-R1

BLADE, OUTER; 38 IN. BLADE HARD SURFACED
(Superseded to 759-3836)

Note: OPTIONAL w/IH-473427-R3

$51.99

$

In Stock, only 1 left!

0

Cub Cadet IH-473427-R3

BLADE, OUTER; 38 IN. BLADE
(Superseded to 759-3811)

Note: OPTIONAL w/IH-490470-R1

$

$

Not available

Cub Cadet IH-490471-R1

BLADE, OUTER; 42 IN. BLADE HARD SURFACED
(Superseded to IH-490471-R2)

Note: OPTIONAL w/IH-477598-R3

$

$

Not available

Cub Cadet IH-477598-R3

BLADE, OUTER; 42 IN. BLADE
(Superseded to IH-477598-R4)

Note: OPTIONAL w/IH-490471-R1

$

$

Not available

17

Cub Cadet IH-473860-R1

WASHER, BLADE FRICTION
(Superseded to 959-3486)

$13.99

$

Usually ships in 3-6 days

0

18

Note: NOT USED IN THIS APPLICATION

$

$

Not available

19

Cub Cadet IH-492105-R1

CAP, SPINDLE HOUSING
(Superseded to 703-0115-0499)

$38.99

$

Usually ships in 3-6 days

0

20

Cub Cadet IH-473432-R91

PULLEY, OUTER
(Superseded to 956-3006)

$45.99

$

In Stock, only 1 left!

0

21

Cub Cadet IH-473433-R91

PULLEY, CENTER
(Superseded to IH-473433-R92)

$126.99

$

Usually ships in 3-6 days

0

22

Cub Cadet IH-473434-R1

KEY, 1/4 x 3/4 SQ-PARALLEL
(Superseded to IH-452779-R2)

$

$

Not available

23

Cub Cadet IH-473435-R1

BOLT, END
(Superseded to 710-06455)

$14.99

$

Usually ships in 3-6 days

0

24

Cub Cadet IH-490196-R1

WASHER, SPINDLE
(Superseded to 936-3055)

$8.49

$

In Stock, only 2 left!

0

Cub Cadet IH-173128

WASHER, 3/8 INT-EXT-TOOTH LOCK
(Superseded to IH-178551P)

$6.99

$

Usually ships in 3-6 days

0

25

Cub Cadet IH-19700-R91

FITTING, 3/8 DRIVE TYPE 45 DEG ANGLE LUG, END BOLT
(Superseded to 737-0108)

Note: FOR CENTER ROTOR

$12.99

$

Usually ships in 3-6 days

0

26

Cub Cadet IH-433566

FITTING, 5/16 DRIVE TYPE STR LUE END BOLT

Note: FOR OUTER ROTORS

$

$

Currently unavailable

27

Cub Cadet IH-ST745

BEARING, BALL STR FITTING
(Superseded to 759-3479P)

Note: REPLACES IH-ST721 BY ALSO ORDERING KEY, IH-127559 AND NUT, IH-219753

$307.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-219753

NUT, 3/4-16 HEX. JAM
(Superseded to 912-3026)

$4.99

$

In Stock, Qty 7

0

28

Cub Cadet IH-492106-R1

HOUSING, SPINDLE
(Superseded to 903-0117)

$

$

Not available

Cub Cadet IH-21860-R1

BOLT, 3/8 x 7/8 ZND SQ-W CRG

$

$

Currently unavailable

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$4.49

$

In Stock, Qty 12

0

Cub Cadet HA-GM120382

WASHER, 3/8 C-Z MED LOCK
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet IH-492108-R1

CUP, SPINDLE
(Superseded to 903-1387)

$24.99

$

In Stock, Qty 11

0

30

Cub Cadet IH-492107-R1

SPACER, BLADE

$

$

Not available

31

Cub Cadet IH-575814-R1

WASHER, 25/32 x 2 x 11 GA BLADE DRIVE DISC SPACING
(Superseded to 736-3014)

$4.49

$

In Stock, only 4 left!

0

32

Cub Cadet IH-58455-C1

DEFLECTOR, 38 IN.

$

$

Not available

Cub Cadet IH-57229-C1

DEFLECTOR, 42 IN.

$

$

Currently unavailable

Cub Cadet IH-180077

SCREW, 5/16-18 x 3/4 ZND HEX-HD CAP
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

WASHER, 5/16 ZND REG LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120393

WASHER, 11/32 x 1-1/16 x .051 C-Z
(Superseded to 936-0275)

$

$

Not available

Cub Cadet IH-120376

NUT, 5/16-18 ZND HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0
