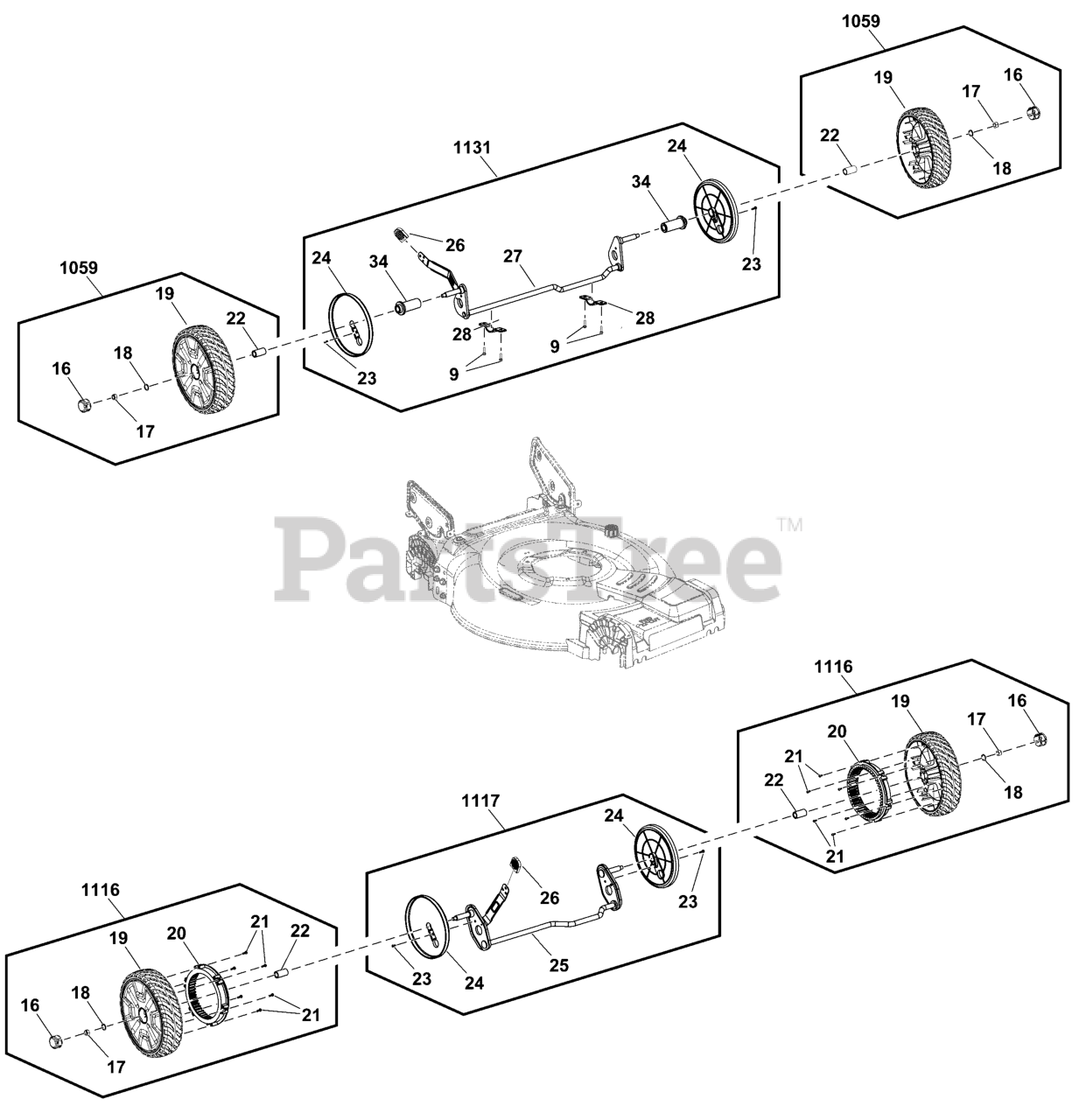

MNA 153003 - Murray 22" Walk-Behind Mower (2021) Wheels Group Parts Diagram

22" Walk-Behind Mower

Wheels Group Parts Diagram

  • Title

1059

Murray 84006732

KIT, Wheel

Note: (Incl. Ref. Nos. 16, 17, 18, 19, 22)

$

$

Currently unavailable

16

CAP, Wheel

$

$

Not available

17

NUT, Lock

$

$

Not available

18

WASHER, Flat

$

$

Not available

19

WHEEL, Front

$

$

Not available

22

SLEEVE, Axle

$

$

Not available

1116

Murray 84006834

KIT, Wheel

Note: (Incl. Ref. Nos. 16, 17, 18, 19, 20, 21, 22)

$

$

Currently unavailable

16

CAP, Wheel

$

$

Not available

17

NUT, Lock

$

$

Not available

18

WASHER, Flat

$

$

Not available

19

WHEEL, Front

$

$

Not available

20

GEAR, Driven

$

$

Not available

21

SCREW

$

$

Not available

22

SLEEVE, Axle

$

$

Not available

1117

Murray 84006835

KIT, Front Axle

Note: (Incl. Ref. Nos. 23, 24, 25, 26)

$

$

Currently unavailable

23

SCREW

$

$

Not available

24

COVER, Dust

$

$

Not available

25

AXLE, Front

$

$

Not available

26

HANDLE, Height Adjust

$

$

Not available

1131

Murray 84006833

KIT, Rear Axle

Note: (Incl. Ref. Nos. 9, 23, 24, 26, 27, 28, 34)

$

$

Currently unavailable

9

SCREW

$

$

Not available

23

SCREW

$

$

Not available

24

COVER, Dust

$

$

Not available

26

HANDLE, Height Adjust

$

$

Not available

27

AXLE, Rear

$

$

Not available

28

PLATE, Rear Axle

$

$

Not available

34

SLEEVE, Axle

$

$

Not available
