MNA 153003 - Murray 22" Walk-Behind Mower (2021) Handles & Controls Group Parts Diagram

22" Walk-Behind Mower

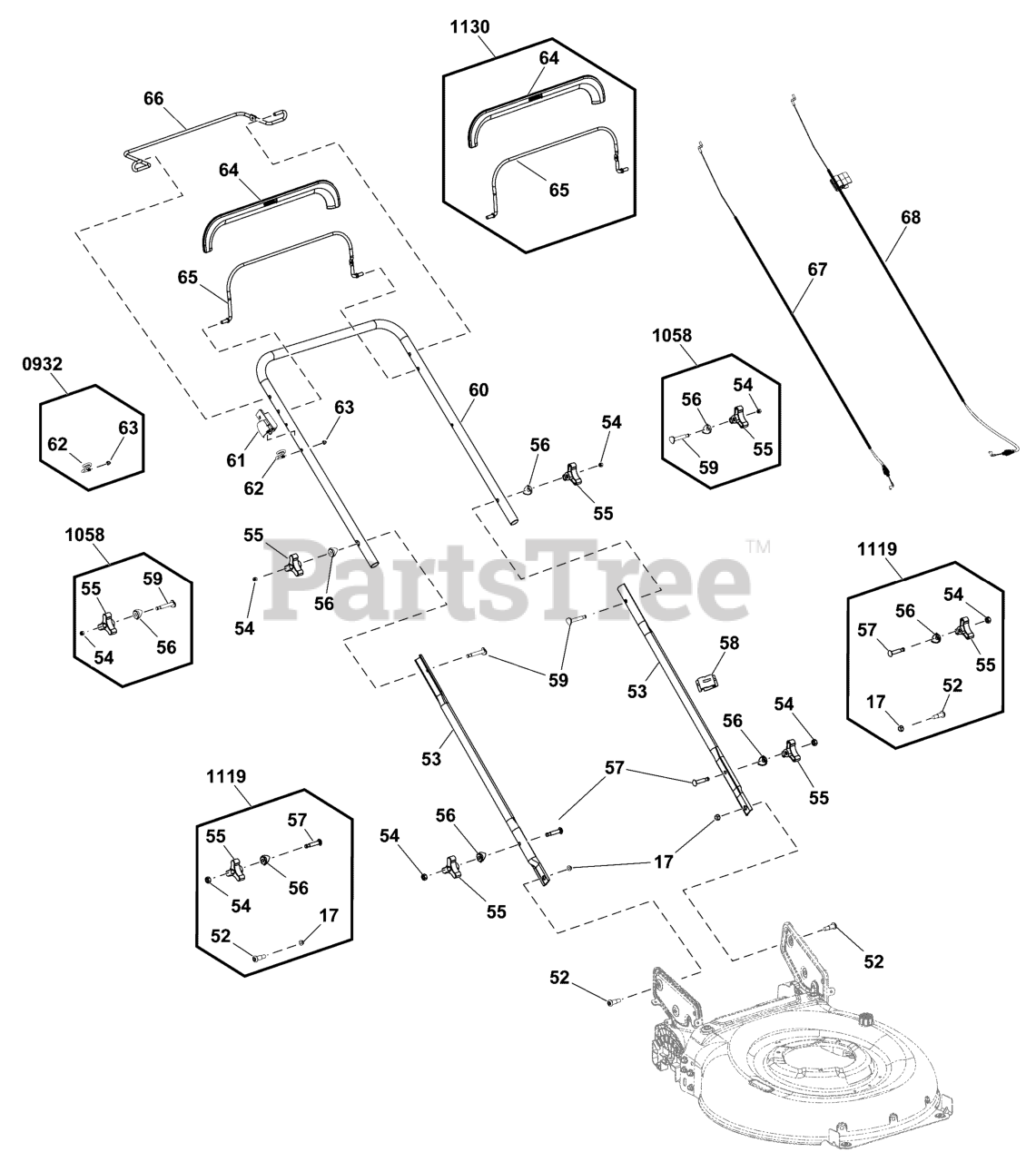

Handles & Controls Group Parts Diagram

  • Title

53

Murray 84006830

HANDLE, Lower

$

$

Currently unavailable

58

Murray 84006831

CLAMP, Wire

$

$

Currently unavailable

60

Murray 84006829

HANDLE, Upper

$

$

Currently unavailable

61

Murray 84005228

BRACKET, Rod

$

$

Currently unavailable

66

Murray 84006828

BAIL ASSEMBLY

$

$

Currently unavailable

67

Murray 84005367

CABLE, Drive

$

$

Currently unavailable

68

Murray 84005366

CABLE, Engine Stop

$

$

Currently unavailable

0932

Murray 84005211

KIT, Rope Guide

Note: (Incl. Ref. Nos. 59, 60)

$

$

Currently unavailable

62

GUIDE, Rope

$

$

Not available

63

NUT, Lock

$

$

Not available

1058

Murray 84006728

KIT, Wing Knob, Handle

Note: (Incl. Ref. Nos. 54, 55, 56, 59)

$

$

Currently unavailable

54

NUT

$

$

Not available

55

KNOB, Wing

$

$

Not available

56

WASHER, Curved

$

$

Not available

59

BOLT, Carriage

$

$

Not available

1119

Murray 84006832

KIT, Wing Knob, Handle

Note: (Incl. Ref. Nos. 17, 52, 54, 55, 56, 57)

$

$

Currently unavailable

17

NUT, Lock

$

$

Not available

52

BOLT

$

$

Not available

54

NUT

$

$

Not available

55

KNOB, Wing

$

$

Not available

56

WASHER, Curved

$

$

Not available

57

BOLT

$

$

Not available

1130

Murray 84006827

BAIL ASSEMBLY

Note: (Incl. Ref. Nos. 64, 65)

$

$

Currently unavailable

64

COVER

$

$

Not available

65

BAIL ASSEMBLY

$

$

Not available
