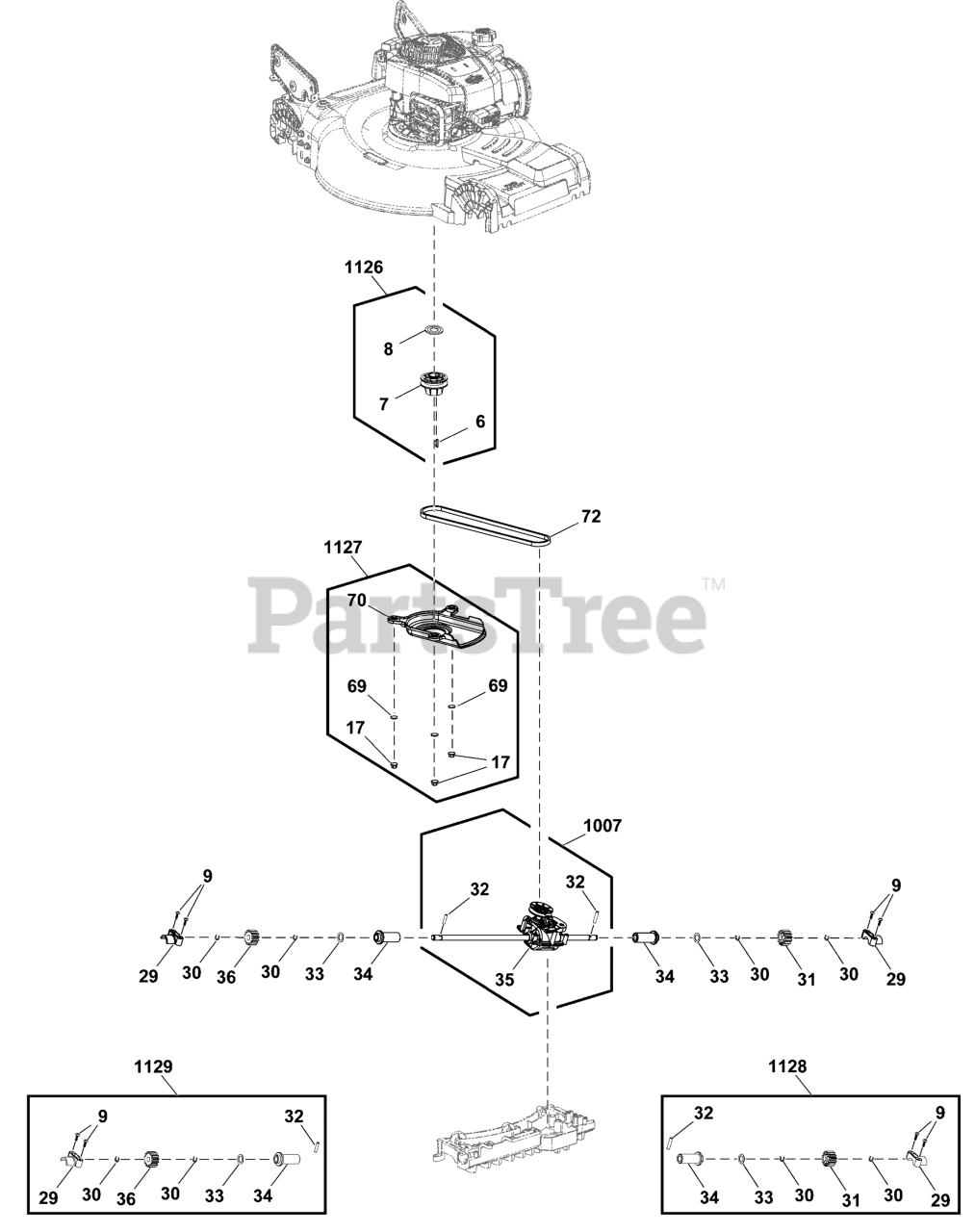

MNA 153003 - Murray 22" Walk-Behind Mower (2021) Drive Group Parts Diagram

22" Walk-Behind Mower

Drive Group Parts Diagram

  • Title

72

Murray 84005369

V-BELT

$18.99

$

Usually ships in 0 days

0

1007

Murray 84005370

KIT, Transmission

Note: (Incl. Ref. Nos. 36, 39)

$

$

Currently unavailable

32

PIN

$

$

Not available

35

ASSEMBLY, Transmission

$

$

Not available

1126

Murray 84006837

KIT, Pulley Assembly

Note: (Incl. Ref. Nos. 6, 7, 8)

$10.99

$

Usually ships in 0 days

0

6

KEY, Flat

$

$

Not available

7

PULLEY, Drive

$

$

Not available

8

KEY, Flat

$

$

Not available

1127

Murray 84006838

KIT, Cover Dust

Note: (Incl. Ref. Nos. 17, 69, 70)

$

$

Currently unavailable

17

NUT, Lock

$

$

Not available

69

WASHER, Flat

$

$

Not available

70

COVER, Dust

$

$

Not available

1128

Murray 84006839

KIT, Drive Gear, Left

Note: (Incl. Ref. Nos. 9, 29, 30, 31, 32, 33, 34)

$

$

Currently unavailable

9

SCREW

$

$

Not available

29

PLATE, Axle

$

$

Not available

30

WASHER

$

$

Not available

31

GEAR, Drive, Left

$

$

Not available

32

PIN

$

$

Not available

33

WASHER, Flat

$

$

Not available

34

SLEEVE, Axle

$

$

Not available

1129

Murray 84006840

KIT, Drive Gear, Right

Note: (Incl. Ref. Nos. 9, 29, 30, 32, 33, 34, 36)

$

$

Currently unavailable

9

SCREW

$

$

Not available

29

PLATE, Axle

$

$

Not available

30

WASHER

$

$

Not available

32

PIN

$

$

Not available

33

WASHER, Flat

$

$

Not available

34

SLEEVE, Axle

$

$

Not available

36

GEAR, Drive, Right

$

$

Not available
