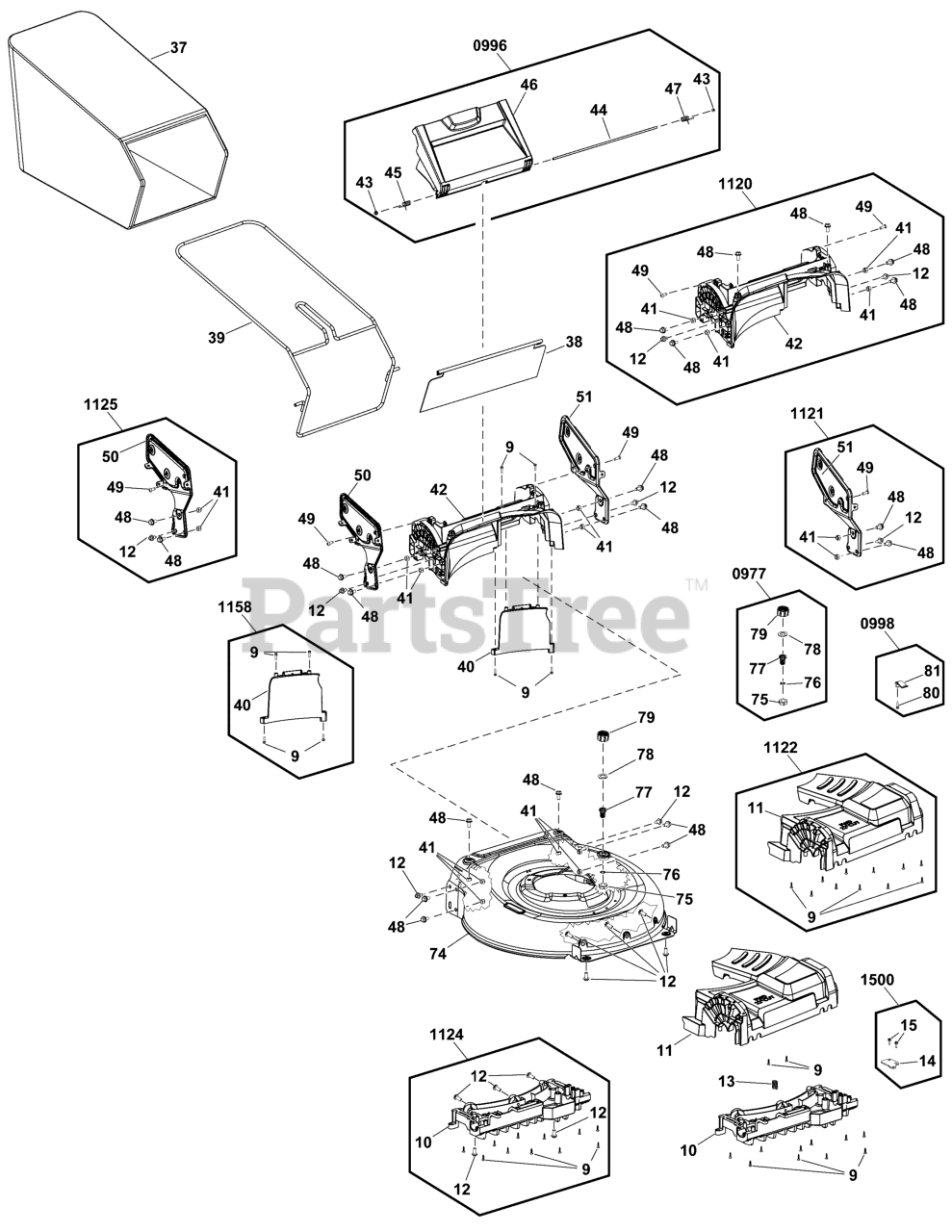

MNA 153003 - Murray 22" Walk-Behind Mower (2021) Deck & Catcher Group Parts Diagram

22" Walk-Behind Mower

Deck & Catcher Group Parts Diagram

  • Title

13

Murray 84005393

SPRING

$

$

Currently unavailable

37

Murray 84006819

CATCHER, Grass

$51.99

$

Usually ships in 0 days

0

38

Murray 84005389

COVER, Dust

$

$

Currently unavailable

39

Murray 84005390

FRAME, Catcher, Grass

$21.99

$

Usually ships in 0 days

0

74

DECK

$

$

Not available

0977

Murray 84005375

KIT, Washout Port

Note: (Incl. Ref. Nos. 75, 76, 77, 78, 79)

$

$

Currently unavailable

75

NUT

$

$

Not available

76

WASHER, Lock

$

$

Not available

77

SPOOL, Washport

$

$

Not available

78

SEAL, Ring

$

$

Not available

79

NUT, Washport

$

$

Not available

0996

Murray 84005376

KIT, Deflector, Rear

Note: (Incl. Ref. Nos. 43, 44, 45, 46, 47)

$

$

Currently unavailable

43

NUT, Lock

$

$

Not available

44

SHAFT, Rear Cover

$

$

Not available

45

SPRING, Right

$

$

Not available

46

COVER, Rear

$

$

Not available

47

SPRING, Left

$

$

Not available

0998

Murray 84005378

KIT, Clamp, Cable Guide

Note: (Incl. Ref. Nos. 80, 81)

$

$

Currently unavailable

80

SCREW

$

$

Not available

81

CLAMP, Cable Guide

$

$

Not available

1120

Murray 84006820

KIT, Housing, Rear

Note: (Incl. Ref. Nos. 12, 41, 42, 48, 49)

$

$

Currently unavailable

12

SCREW

$

$

Not available

41

NUT, Lock

$

$

Not available

42

HOUSING, Rear

$

$

Not available

48

BOLT

$

$

Not available

49

SCREW

$

$

Not available

1121

Murray 84006821

KIT, Bracket, Left

Note: (Incl. Ref. Nos. 12, 41, 48, 49, 51)

$

$

Currently unavailable

12

SCREW

$

$

Not available

41

NUT, Lock

$

$

Not available

48

BOLT

$

$

Not available

49

SCREW

$

$

Not available

51

BRACKET, Left

$

$

Not available

1122

Murray 84006823

KIT, Cover, Drive Housing

Note: (Incl. Ref. Nos. 9, 11)

$

$

Currently unavailable

9

SCREW

$

$

Not available

11

HOUSING, Front

$

$

Not available

1124

Murray 84006824

KIT, Housing, Front

Note: (Incl. Ref. Nos. 9, 10, 12)

$

$

Currently unavailable

9

SCREW

$

$

Not available

10

HOUSING, Front

$

$

Not available

12

SCREW

$

$

Not available

1125

Murray 84006822

KIT, Bracket, Right

Note: (Incl. Ref. Nos. 12, 41, 48, 49, 50)

$

$

Currently unavailable

12

SCREW

$

$

Not available

41

NUT, Lock

$

$

Not available

48

BOLT

$

$

Not available

49

SCREW

$

$

Not available

50

BRACKET, Right

$

$

Not available

1158

Murray 84006825

KIT, Plug

Note: (Incl. Ref. Nos. 9, 40)

$

$

Currently unavailable

9

SCREW

$

$

Not available

40

PLUG, Rear

$

$

Not available

1500

Murray 84005381

KIT, Bracket

Note: (Incl. Ref. Nos. 14, 15)

$

$

Currently unavailable

14

BRACKET

$

$

Not available

15

SCREW, Hex Head

$

$

Not available
