MNA 152903 - Murray 21" Walk-Behind Mower (2020) Wheels Group Parts Diagram

21" Walk-Behind Mower

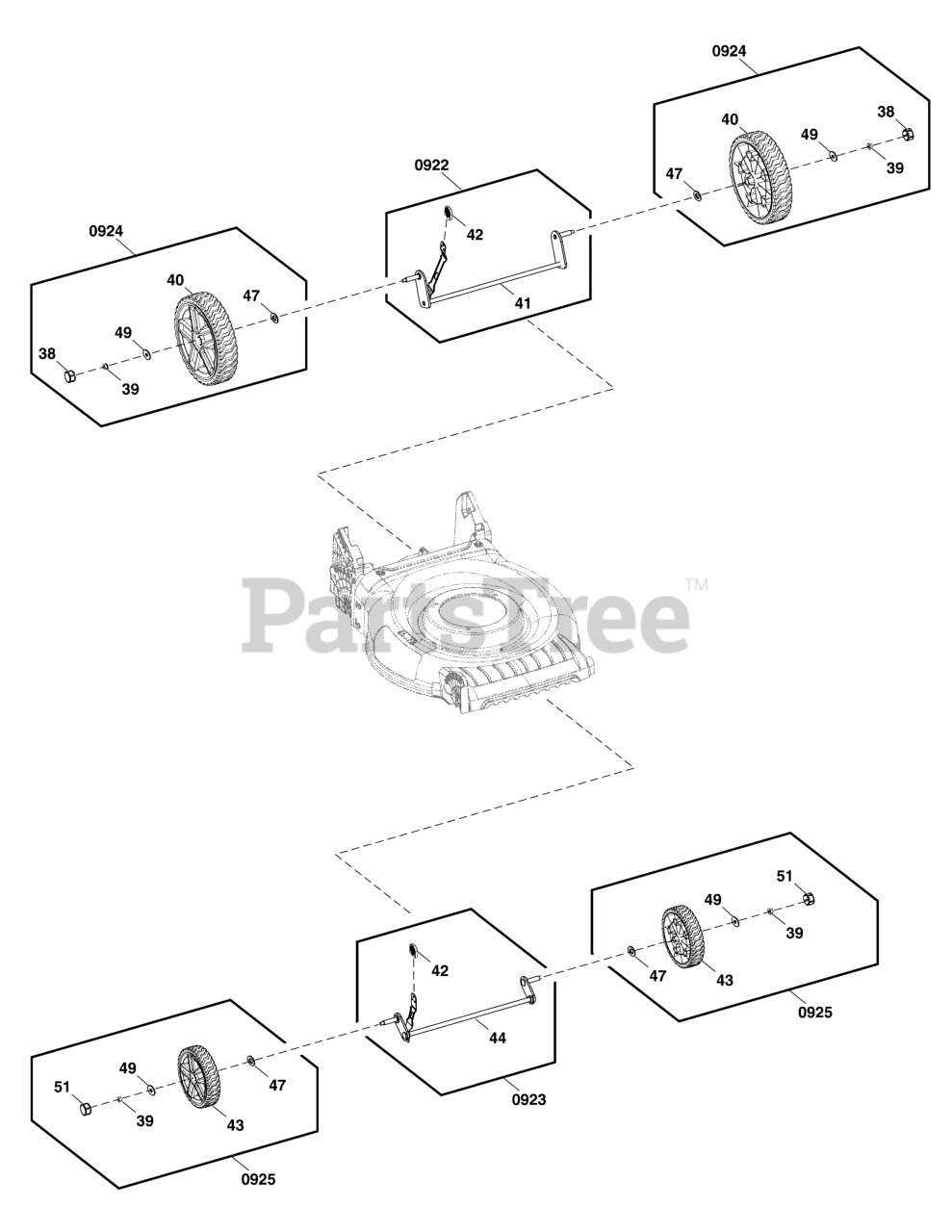

Wheels Group Parts Diagram

  • Title

0922

Murray 84005218

KIT, Rear Axle

Note: (Incl. Ref. Nos. 41, 42)

$

$

Currently unavailable

41

AXLE, Rear

$

$

Not available

42

HANDLE, Height Adjust

$

$

Not available

0923

Murray 84005213

KIT, Front Axle

Note: (Incl. Ref. Nos. 42, 44)

$

$

Currently unavailable

42

HANDLE, Height Adjust

$

$

Not available

44

AXLE, Front

$

$

Not available

0924

Murray 84005214

KIT, Wheel

Note: (Incl. Ref. Nos. 38, 39, 40, 47, 49)

$

$

Currently unavailable

38

CAP, Wheel

$

$

Not available

39

NUT, Lock

$

$

Not available

40

WHEEL, Rear

$

$

Not available

47

WASHER, Flat

$

$

Not available

49

WASHER, Flat

$

$

Not available

0925

Murray 84005212

KIT, Wheel

Note: (Incl. Ref. Nos. 39, 43, 47, 49, 51)

$

$

Currently unavailable

39

NUT, Lock

$

$

Not available

43

WHEEL, Front

$

$

Not available

47

WASHER, Flat

$

$

Not available

49

WASHER, Flat

$

$

Not available

51

CAP, Wheel

$

$

Not available
