MNA 152903 - Murray 21" Walk-Behind Mower (2020) Handles & Controls Group Parts Diagram

21" Walk-Behind Mower

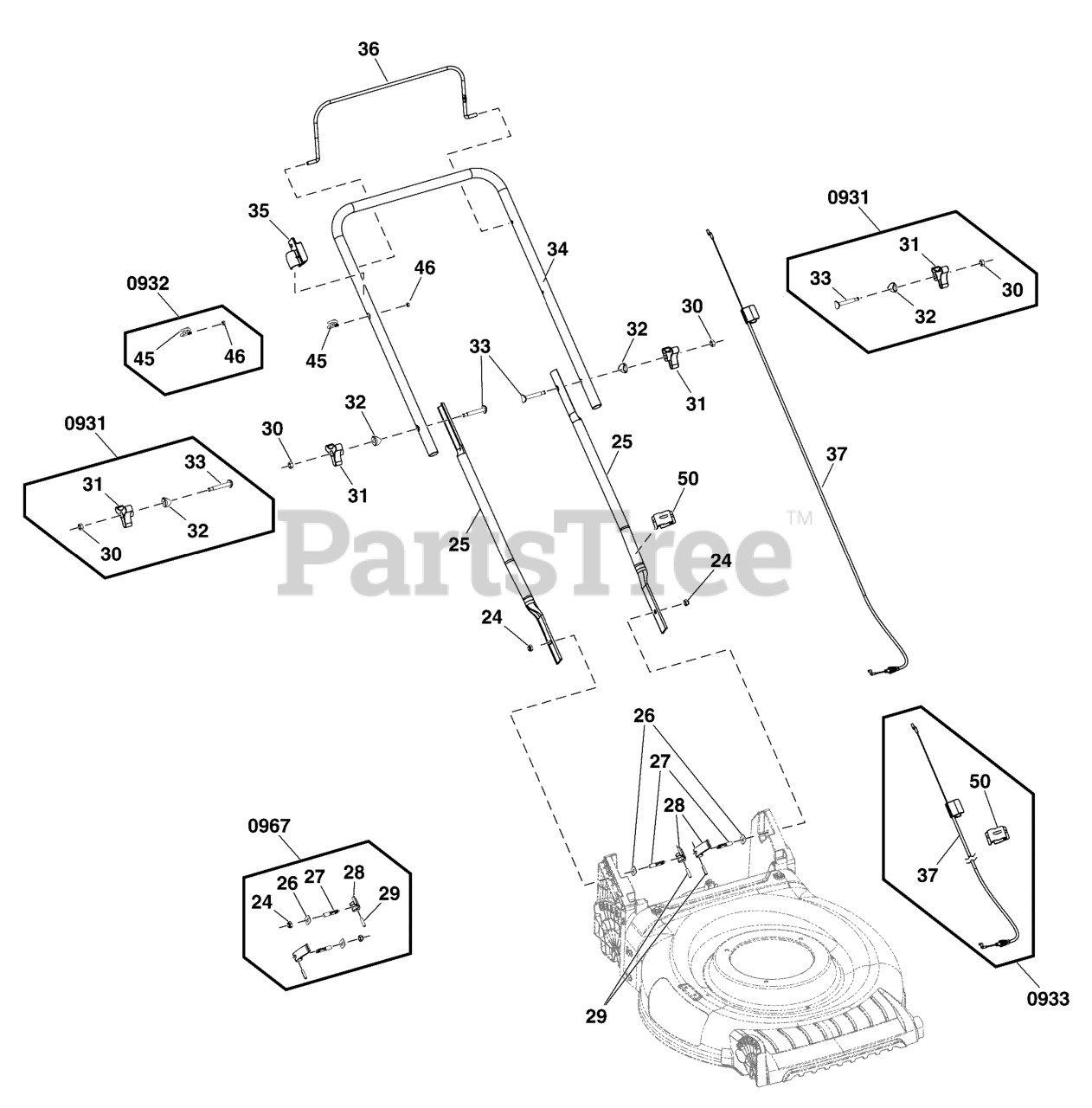

Handles & Controls Group Parts Diagram

  • Title

25

Murray 84005236

HANDLE, Lower

$

$

Currently unavailable

34

Murray 84005226

HANDLE, Upper

$

$

Currently unavailable

35

Murray 84005228

BRACKET, Rod

$

$

Currently unavailable

36

Murray 84005227

BAIL ASSEMBLY

$

$

Currently unavailable

0931

Murray 84005209

KIT, Wing Knob, Handle

Note: (Incl. Ref. Nos. 30, 31, 32, 33)

$

$

Currently unavailable

30

NUT

$

$

Not available

31

KNOB, Wing

$

$

Not available

32

WASHER, Curved

$

$

Not available

33

BOLT, Carriage

$

$

Not available

0932

Murray 84005211

KIT, Rope Guide

Note: (Incl. Ref. Nos. 45, 46)

$

$

Currently unavailable

45

GUIDE, Rope

$

$

Not available

46

NUT, Lock

$

$

Not available

0933

Murray 84005208

KIT, Cable, Engine Stop

Note: (Incl. Ref. Nos. 37, 50)

$

$

Currently unavailable

37

CABLE, Engine Stop

$

$

Not available

50

CLIP, Cable

$

$

Not available

0967

Murray 84005229

KIT, Knob, Lever

Note: (Incl. Ref. Nos. 24, 26, 27, 28, 29)

$

$

Currently unavailable

24

NUT, Lock

$

$

Not available

26

PLATE, Compression

$

$

Not available

27

BOLT, Locking Handle

$

$

Not available

28

CAM, Handle

$

$

Not available

29

PIN

$

$

Not available
