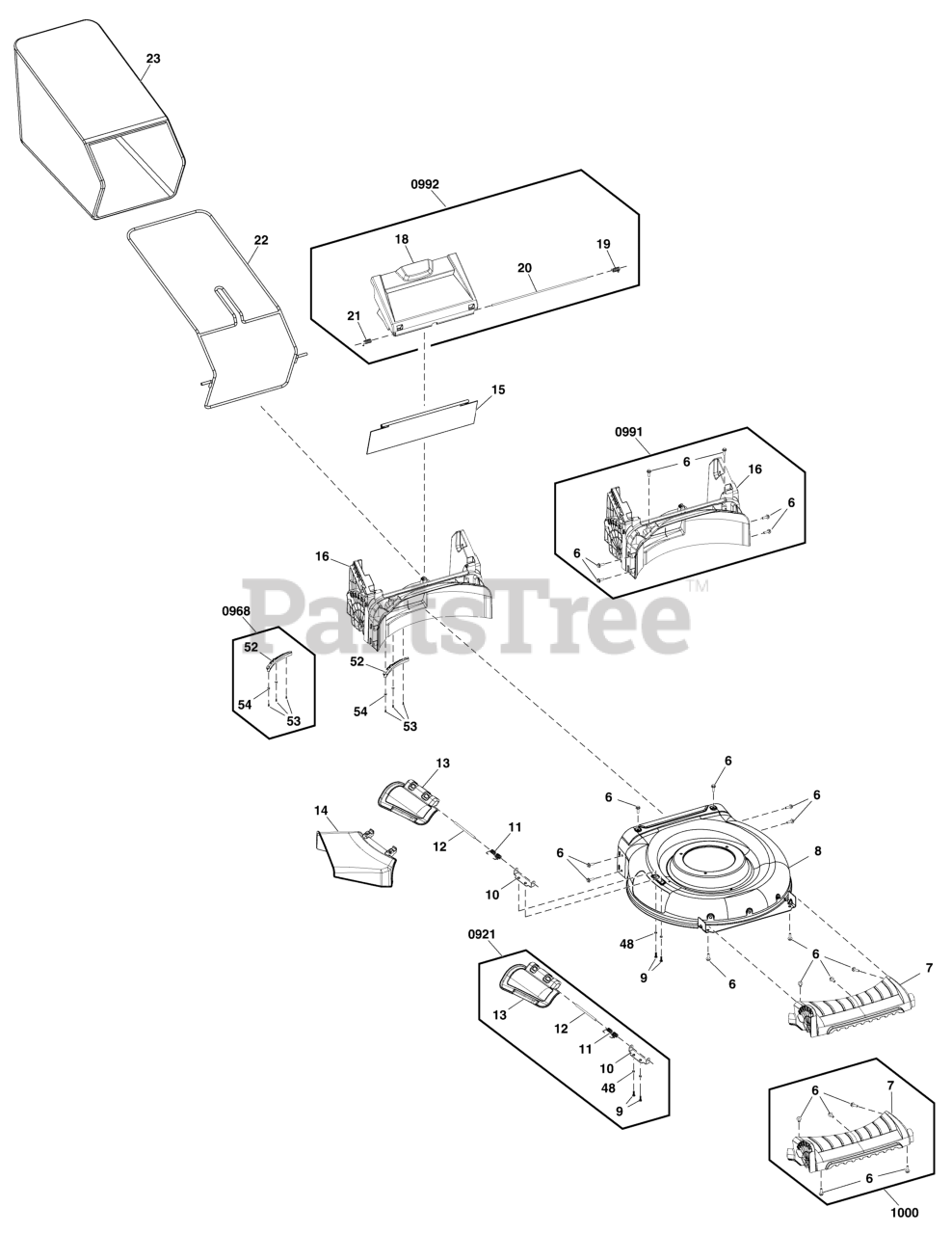

MNA 152903 - Murray 21" Walk-Behind Mower (2020) Deck & Catcher Group Parts Diagram

21" Walk-Behind Mower

Deck & Catcher Group Parts Diagram

  • Title

8

DECK

$

$

Not available

14

Murray 84005223

DEFLECTOR

$

$

Currently unavailable

15

Murray 84005233

COVER, Dust

$

$

Currently unavailable

22

Murray 84005234

FRAME, Catcher, Grass

$

$

Currently unavailable

23

Murray 84005235

CATCHER, Grass

$

$

Currently unavailable

0921

Murray 84005204

KIT, Mulching

Note: (Incl. Ref. Nos. 9, 10, 11, 12, 13, 48)

$

$

Currently unavailable

9

SCREW

$

$

Not available

10

BRACKET, Deflector

$

$

Not available

11

SPRING, Deflector

$

$

Not available

12

SHAFT, Deflector

$

$

Not available

13

COVER, Mulch

$

$

Not available

48

WASHER

$

$

Not available

0968

Murray 84005230

KIT, Plug

Note: (Incl. Ref. Nos. 52, 53, 54)

$

$

Currently unavailable

52

PLUG, Rear

$

$

Not available

53

SCREW

$

$

Not available

54

WASHER, Flat

$

$

Not available

0991

Murray 84005231

KIT, Housing, Rear

Note: (Incl. Ref. Nos. 6, 16)

$

$

Currently unavailable

6

SCREW, Hex Head

$

$

Not available

16

HOUSING, Rear

$

$

Not available

0992

Murray 84005232

KIT, Deflector, Rear

Note: (Incl. Ref. Nos. 18, 19, 20, 21)

$

$

Currently unavailable

18

COVER, Rear

$

$

Not available

19

SPRING, Left

$

$

Not available

20

SHAFT, Rear Cover

$

$

Not available

21

SPRING, Right

$

$

Not available

1000

Murray 84005219

KIT, Housing, Front

Note: (Incl. Ref. Nos. 6, 7)

$

$

Currently unavailable

6

SCREW, Hex Head

$

$

Not available

7

HOUSING, Front

$

$

Not available
