MNA 152901 - Murray 21" Walk-Behind Mower (2020) Deck Group Parts Diagram

21" Walk-Behind Mower

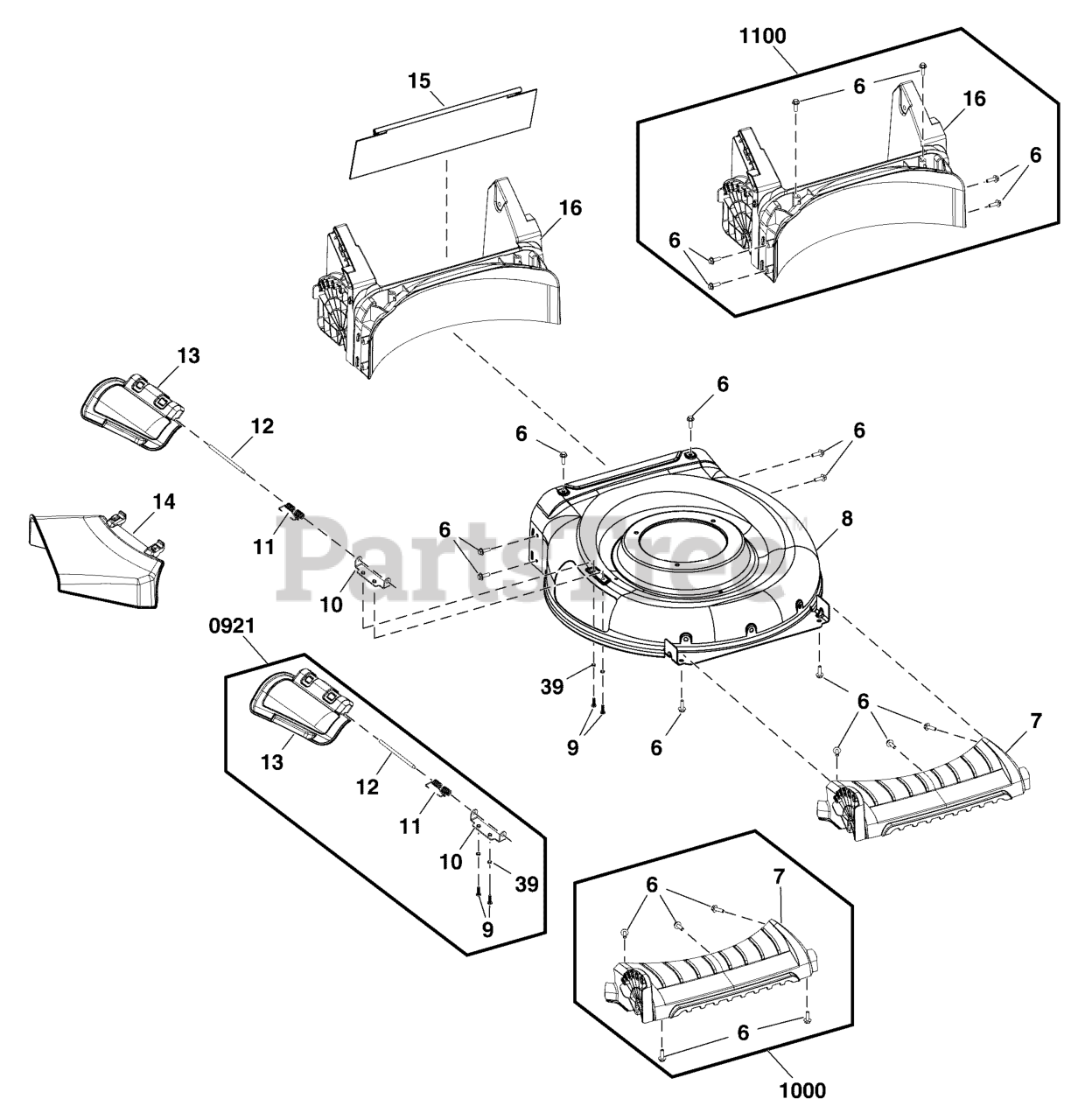

Deck Group Parts Diagram

  • Title

8

DECK

$

$

Not available

14

Murray 84005223

DEFLECTOR

$

$

Currently unavailable

15

Murray 84005224

COVER, Dust

$

$

Currently unavailable

0921

Murray 84005204

KIT, Mulching

Note: (Incl. Ref. Nos. 9, 10, 11, 12, 13, 39)

$

$

Currently unavailable

9

SCREW

$

$

Not available

10

BRACKET, Deflector

$

$

Not available

11

SPRING, Deflector

$

$

Not available

12

SHAFT, Deflector

$

$

Not available

13

COVER, Mulch

$

$

Not available

39

WASHER

$

$

Not available

1000

Murray 84005219

KIT, Housing, Front

Note: (Incl. Ref. Nos. 6, 7)

$

$

Currently unavailable

6

SCREW, Hex Head

$

$

Not available

7

HOUSING, Front

$

$

Not available

1100

Murray 84005220

KIT, Housing, Rear

Note: (Incl. Ref. Nos. 6, 16)

$

$

Currently unavailable

6

SCREW, Hex Head

$

$

Not available

16

HOUSING, Rear

$

$

Not available
