MNA 152703 - Murray 21" Walk-Behind Mower (2021) Wheels Group Parts Diagram

21" Walk-Behind Mower

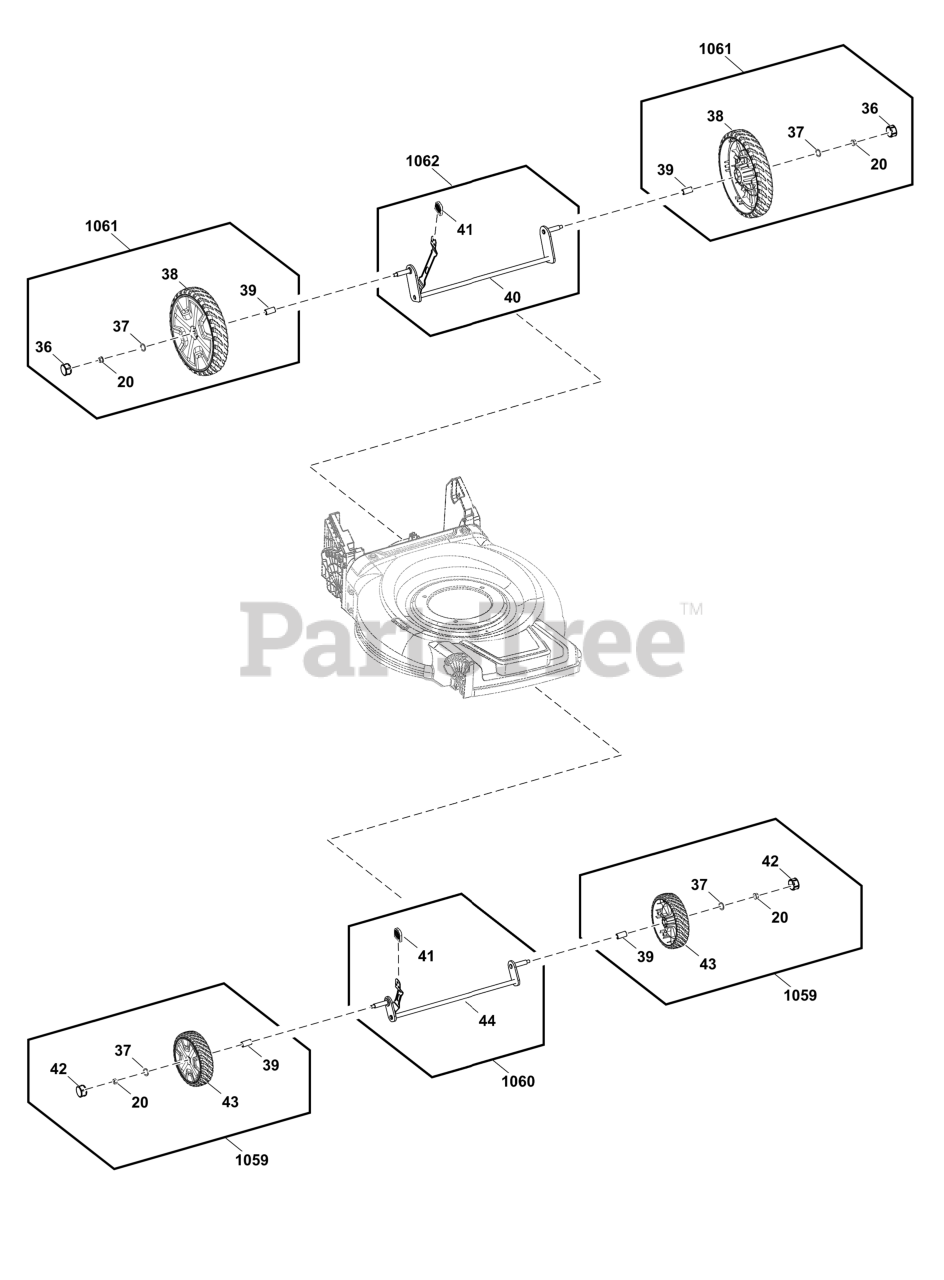

Wheels Group Parts Diagram

  • Title

1059

Murray 84006732

KIT, Wheel

Note: (Incl. Ref. Nos. 20, 37, 39, 42, 43)

$

$

Currently unavailable

20

NUT, Lock

$

$

Not available

37

WASHER, Flat

$

$

Not available

39

SLEEVE, Axle

$

$

Not available

42

CAP, Wheel

$

$

Not available

43

WHEEL, Front

$

$

Not available

1060

Murray 84006730

KIT, Front Axle

Note: (Incl. Ref. Nos. 41, 44)

$

$

Currently unavailable

41

HANDLE, Height Adjust

$

$

Not available

44

AXLE, Front

$

$

Not available

1061

Murray 84006731

KIT, Wheel

Note: (Incl. Ref. Nos. 20, 36, 37, 38, 39)

$

$

Currently unavailable

20

NUT, Lock

$

$

Not available

36

CAP, Wheel

$

$

Not available

37

WASHER, Flat

$

$

Not available

38

WHEEL, Rear

$

$

Not available

39

SLEEVE, Axle

$

$

Not available

1062

Murray 84006729

KIT, Rear Axle

Note: (Incl. Ref. Nos. 40, 41)

$

$

Currently unavailable

40

AXLE, Rear

$

$

Not available

41

HANDLE, Height Adjust

$

$

Not available
