MNA 152703 - Murray 21" Walk-Behind Mower (2021) Handles & Controls Group Parts Diagram

21" Walk-Behind Mower

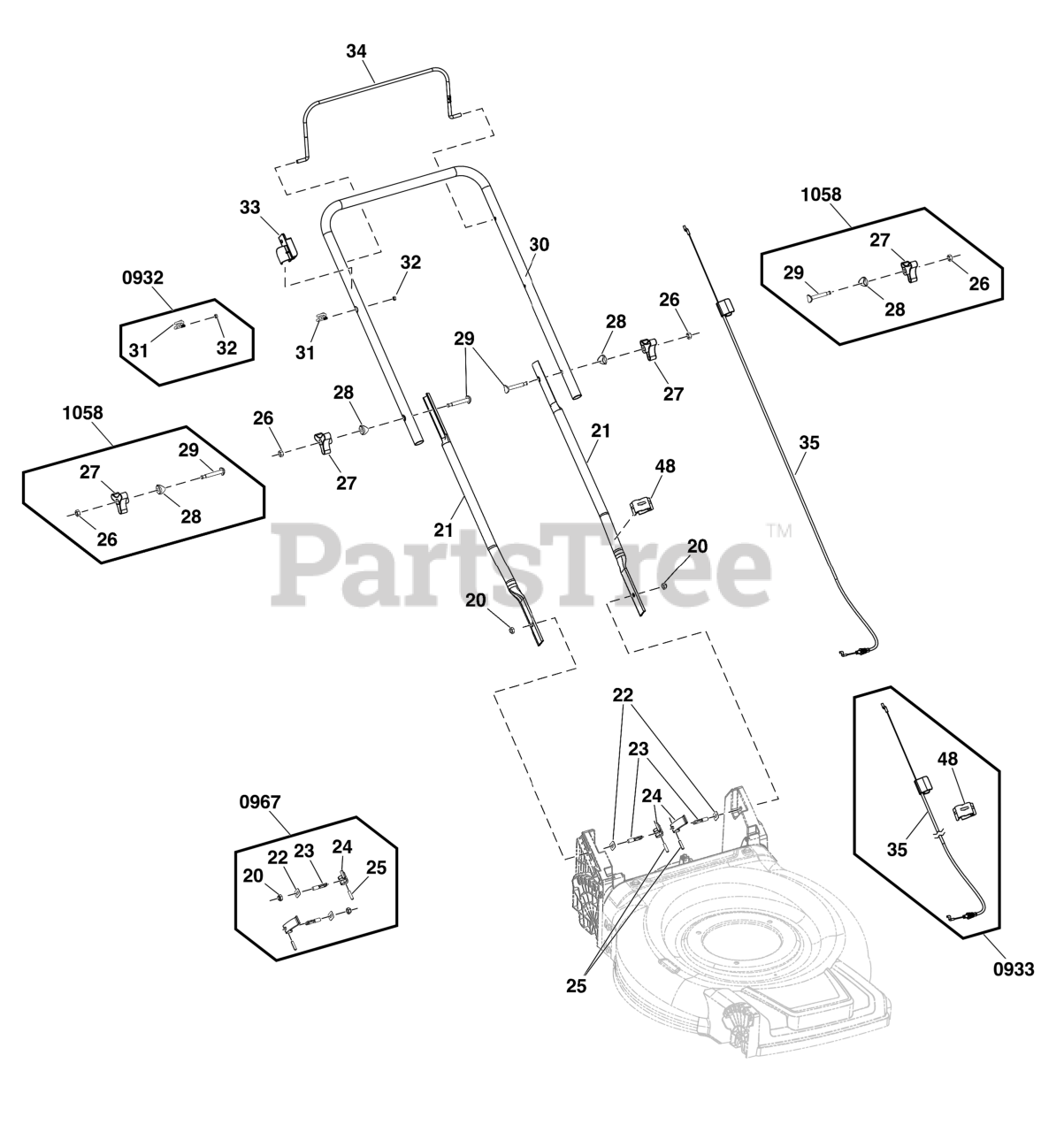

Handles & Controls Group Parts Diagram

  • Title

21

Murray 84005236

HANDLE, Lower

$

$

Currently unavailable

30

Murray 84005226

HANDLE, Upper

$

$

Currently unavailable

33

Murray 84005228

BRACKET, Rod

$

$

Currently unavailable

34

Murray 84006726

BAIL ASSEMBLY

$

$

Currently unavailable

0932

Murray 84005211

KIT, Rope Guide

Note: (Incl. Ref. Nos. 31, 32)

$

$

Currently unavailable

31

GUIDE, Rope

$

$

Not available

32

NUT, Lock

$

$

Not available

0933

Murray 84005208

KIT, Cable, Engine Stop

Note: (Incl. Ref. Nos. 35, 48)

$

$

Currently unavailable

35

CABLE, Engine Stop

$

$

Not available

48

CLIP, Cable

$

$

Not available

0967

Murray 84005229

KIT, Knob, Lever

Note: (Incl. Ref. Nos. 20, 22, 23, 24, 25)

$

$

Currently unavailable

20

NUT, Lock

$

$

Not available

22

PLATE, Compression

$

$

Not available

23

BOLT, Locking Handle

$

$

Not available

24

CAM, Handle

$

$

Not available

25

PIN

$

$

Not available

1058

Murray 84006728

KIT, Wing Knob, Handle

Note: (Incl. Ref. Nos. 26, 27, 28, 29)

$

$

Currently unavailable

26

NUT

$

$

Not available

27

KNOB, Wing

$

$

Not available

28

WASHER, Curved

$

$

Not available

29

BOLT, Carriage

$

$

Not available
