MNA 152702 - Murray 21" Walk-Behind Mower (2021) Wheels Group Parts Diagram

21" Walk-Behind Mower

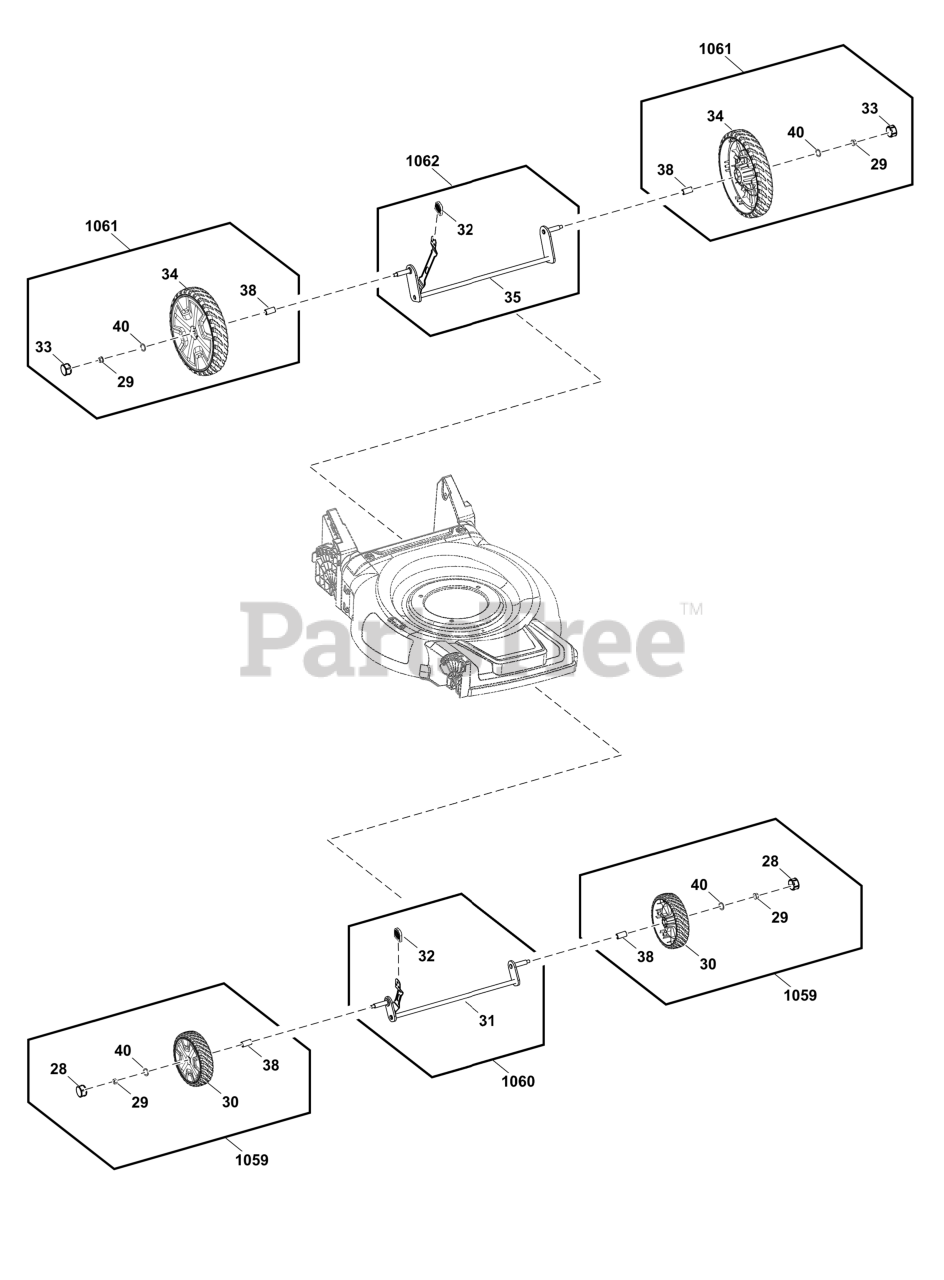

Wheels Group Parts Diagram

  • Title

1059

Murray 84006732

KIT, Wheel

Note: (Incl. Ref. Nos. 28, 29, 30, 38, 40)

$

$

Currently unavailable

28

CAP, Wheel

$

$

Not available

29

NUT, Lock

$

$

Not available

30

WHEEL, Front

$

$

Not available

38

SLEEVE, Axle

$

$

Not available

40

WASHER, Flat

$

$

Not available

1060

Murray 84006730

KIT, Front Axle

Note: (Incl. Ref. Nos. 31, 32)

$

$

Currently unavailable

31

AXLE, Front

$

$

Not available

32

HANDLE, Height Adjust

$

$

Not available

1061

Murray 84006731

KIT, Wheel

Note: (Incl. Ref. Nos. 29, 33, 34, 38, 40)

$

$

Currently unavailable

29

NUT, Lock

$

$

Not available

33

CAP, Wheel

$

$

Not available

34

WHEEL, Rear

$

$

Not available

38

SLEEVE, Axle

$

$

Not available

40

WASHER, Flat

$

$

Not available

1062

Murray 84006729

KIT, Rear Axle

Note: (Incl. Ref. Nos. 32, 35)

$

$

Currently unavailable

32

HANDLE, Height Adjust

$

$

Not available

35

AXLE, Rear

$

$

Not available
