MNA 152702 - Murray 21" Walk-Behind Mower (2021) Handles & Controls Group Parts Diagram

21" Walk-Behind Mower

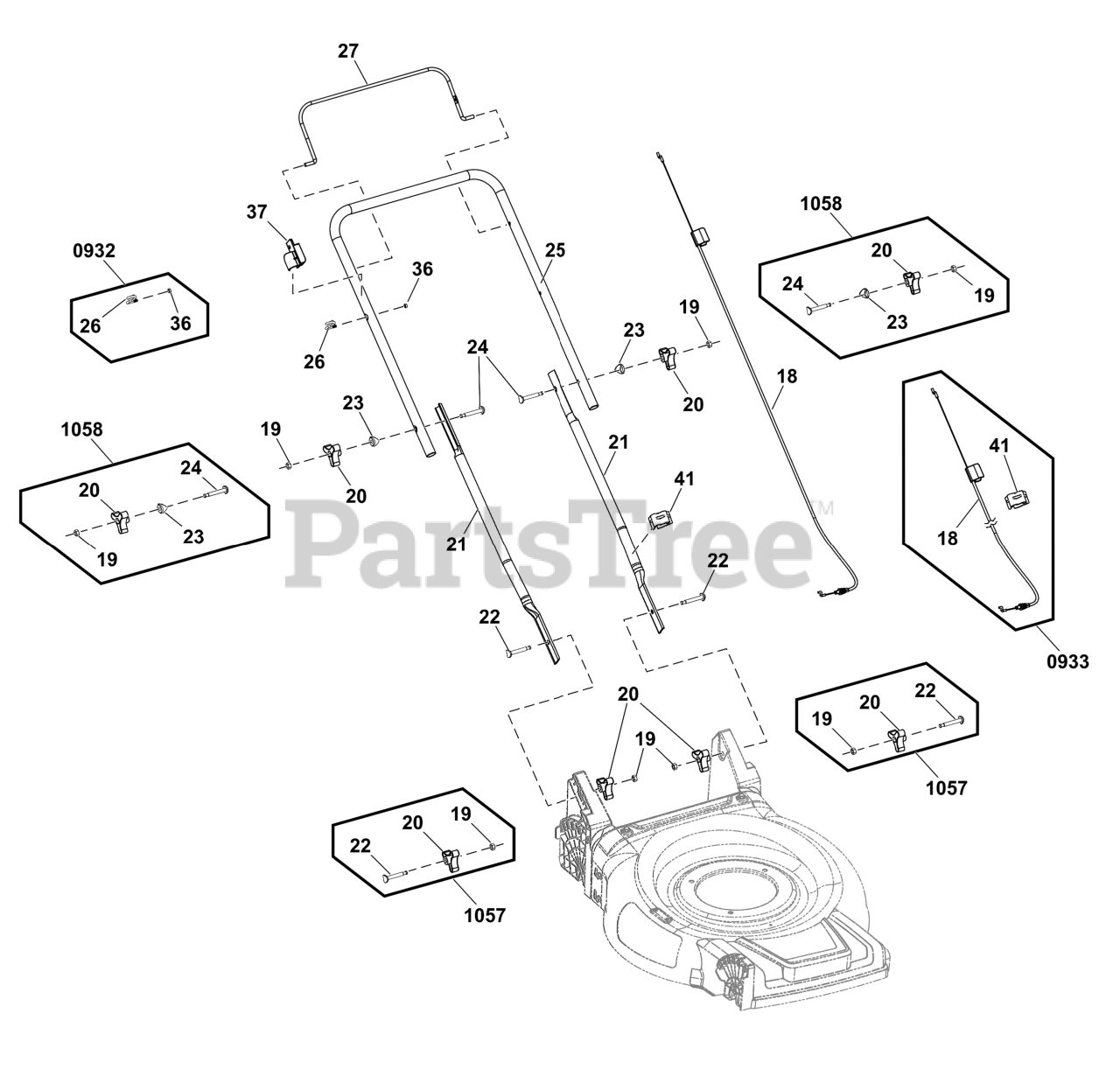

Handles & Controls Group Parts Diagram

  • Title

21

Murray 84005225

HANDLE, Lower

$

$

Currently unavailable

25

Murray 84005226

HANDLE, Upper

$

$

Currently unavailable

27

Murray 84006726

BAIL ASSEMBLY

$

$

Currently unavailable

37

Murray 84005228

BRACKET, Rod

$

$

Currently unavailable

0932

Murray 84005211

KIT, Rope Guide

Note: (Incl. Ref. Nos. 26, 36)

$

$

Currently unavailable

26

GUIDE, Rope

$

$

Not available

36

NUT, Lock

$

$

Not available

0933

Murray 84005208

KIT, Cable, Engine Stop

Note: (Incl. Ref. Nos. 18, 41)

$

$

Currently unavailable

18

CABLE, Engine Stop

$

$

Not available

41

CLIP, Cable

$

$

Not available

1057

Murray 84006727

KIT, Wing Knob, Handle

Note: (Incl. Ref. Nos. 19, 20, 22)

$

$

Currently unavailable

19

NUT

$

$

Not available

20

KNOB, Wing

$

$

Not available

22

BOLT, Carriage

$

$

Not available

1058

Murray 84006728

KIT, Wing Knob, Handle

Note: (Incl. Ref. Nos. 19, 20, 23, 24)

$

$

Currently unavailable

19

NUT

$

$

Not available

20

KNOB, Wing

$

$

Not available

23

WASHER, Curved

$

$

Not available

24

BOLT, Carriage

$

$

Not available
