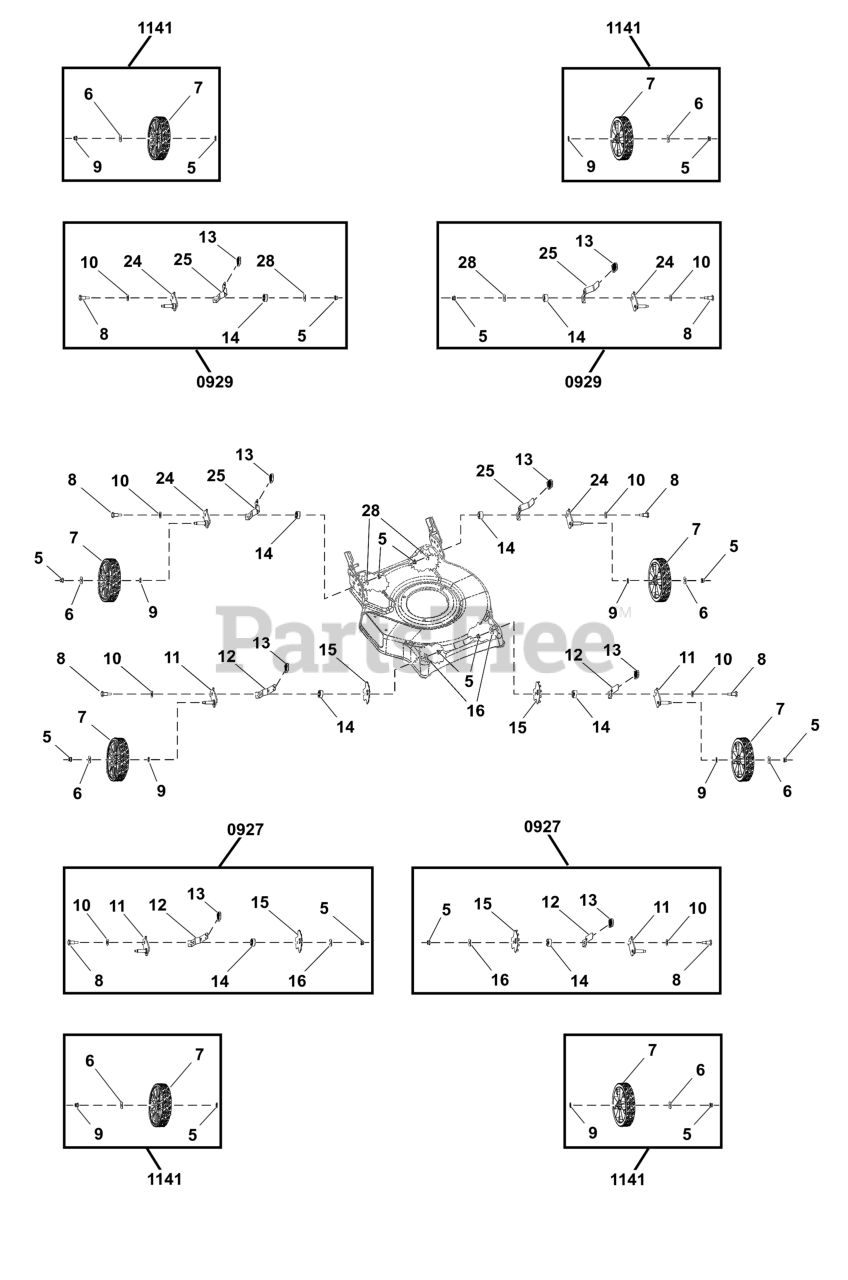

MNA 152506 - Murray 20" Walk-Behind Mower (2021) Wheels Group Parts Diagram

20" Walk-Behind Mower

Wheels Group Parts Diagram

  • Title
0927

Murray 84006769

KIT, Front Axle

Note: (Incl. Ref. Nos. 5, 8, 10, 11, 12, 13, 14, 15, 16)

$

$

Currently unavailable

5

NUT, Lock

$

$

Not available

8

BOLT

$

$

Not available

10

WASHER, Flat

$

$

Not available

11

ASSEMBLY, Axle, Front

$

$

Not available

12

LEVER, Height Adjust, Front

$

$

Not available

13

HANDLE, Height Adjust

$

$

Not available

14

SPACER, Height Adjust

$

$

Not available

15

BRACKET, Height Adjust

$

$

Not available

16

WASHER, Flat

$

$

Not available

0929

Murray 84006770

KIT, Rear Axle

Note: (Incl. Ref. Nos. 5, 8, 10, 13, 14, 24, 25, 28)

$

$

Currently unavailable

5

NUT, Lock

$

$

Not available

8

BOLT

$

$

Not available

10

WASHER, Flat

$

$

Not available

13

HANDLE, Height Adjust

$

$

Not available

14

SPACER, Height Adjust

$

$

Not available

24

ASSEMBLY, Axle, Rear

$

$

Not available

25

LEVER, Height Adjust, Rear

$

$

Not available

28

WASHER, Flat

$

$

Not available

1141

Murray 84006771

KIT, Wheel

Note: (Incl. Ref. Nos. 5, 6, 7, 9)

$

$

Currently unavailable

5

NUT, Lock

$

$

Not available

6

WASHER, Flat

$

$

Not available

7

WHEEL

$

$

Not available

9

WASHER, Flat

$

$

Not available
