MNA 152506 - Murray 20" Walk-Behind Mower (2021) Handles & Controls Group Parts Diagram

20" Walk-Behind Mower

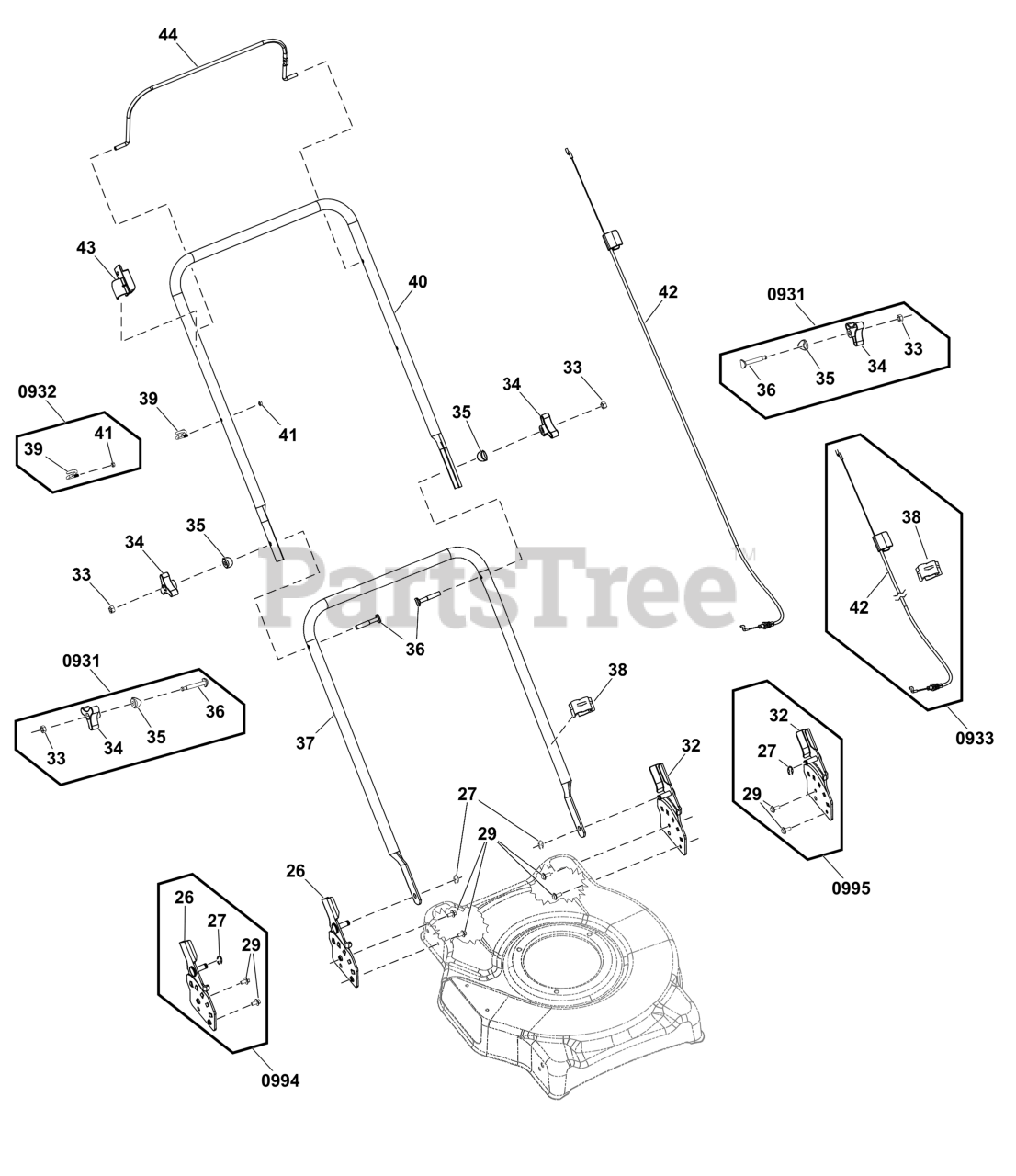

Handles & Controls Group Parts Diagram

  • Title

37

Murray 84006776

HANDLE, Lower

$

$

Currently unavailable

40

Murray 84006777

HANDLE, Upper

$

$

Currently unavailable

43

Murray 84005228

BRACKET, Rod

$

$

Currently unavailable

44

Murray 84005227

BAIL ASSEMBLY

$

$

Currently unavailable

0931

Murray 84005209

KIT, Wing Knob, Handle

Note: (Incl. Ref. Nos. 33, 34, 35, 36)

$

$

Currently unavailable

33

NUT

$

$

Not available

34

KNOB, Wing

$

$

Not available

35

WASHER, Curved

$

$

Not available

36

BOLT, Carriage

$

$

Not available

0932

Murray 84005211

KIT, Rope Guide

Note: (Incl. Ref. Nos. 39, 41)

$

$

Currently unavailable

39

GUIDE, Rope

$

$

Not available

41

NUT, Lock

$

$

Not available

0933

Murray 84005208

KIT, Cable, Engine Stop

Note: (Incl. Ref. Nos. 38, 42)

$

$

Currently unavailable

38

CLIP, Cable

$

$

Not available

42

CABLE, Engine Stop

$

$

Not available

0994

Murray 84006778

KIT, Bracket, Right

Note: (Incl. Ref. Nos. 26, 27, 29)

$

$

Currently unavailable

26

BRACKET, Handle, Right

$

$

Not available

27

E-CLIP

$

$

Not available

29

BOLT, Hex Head, Flange

$

$

Not available

0995

Murray 84006779

KIT, Bracket, Left

Note: (Incl. Ref. Nos. 27, 29, 32)

$

$

Currently unavailable

27

E-CLIP

$

$

Not available

29

BOLT, Hex Head, Flange

$

$

Not available

32

BRACKET, Handle, Left

$

$

Not available
