MMZ-2560 - MTD Pro Zero-Turn Mower Kohler Engine Starting System Parts Diagram

Pro Zero-Turn Mower

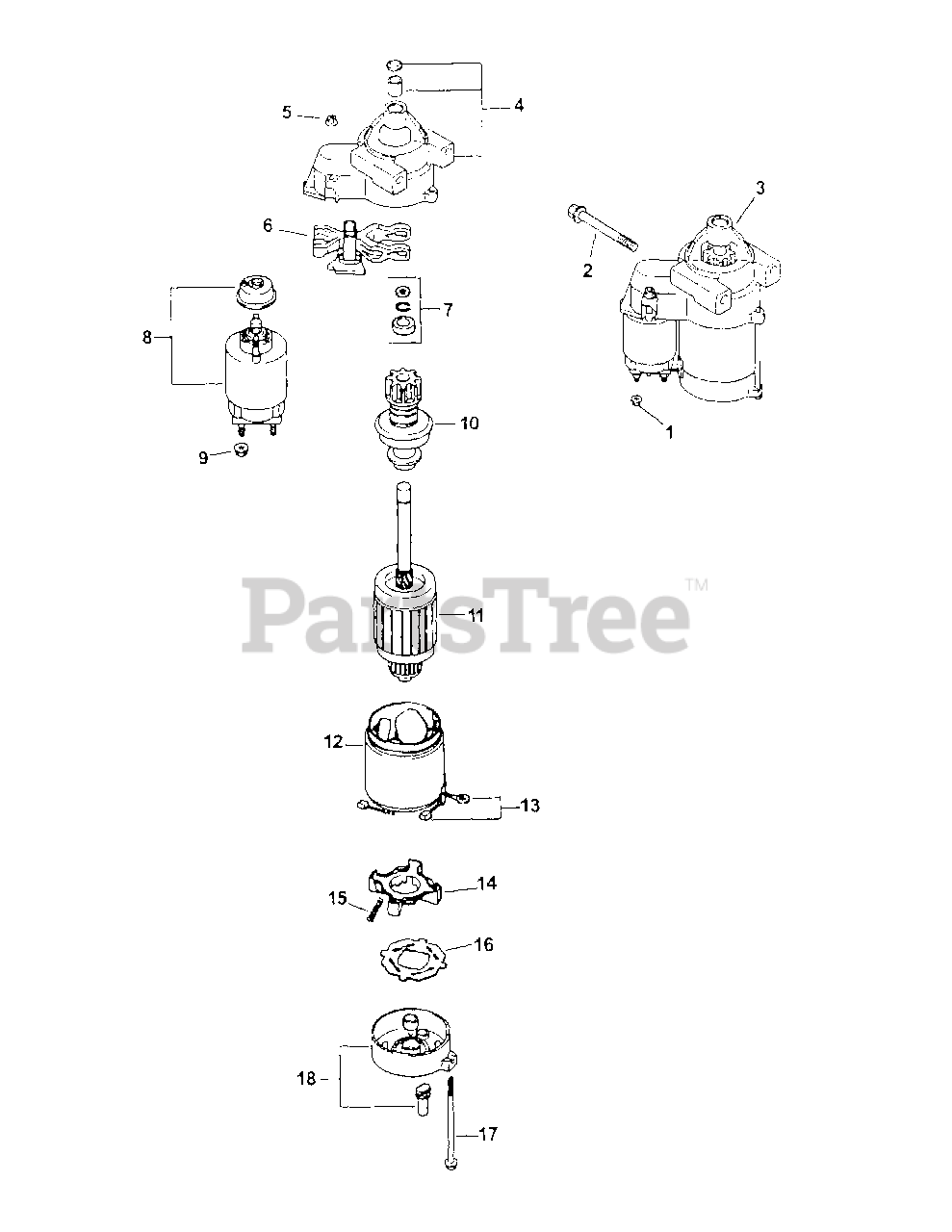

Kohler Engine Starting System Parts Diagram

  • Title

1

MTD 712-3086

Nut, Hex Flange

$4.49

$

In Stock, only 2 left!

0

2

MTD KH-M-851080-S

Screw, Hex Flange

$4.49

$

In Stock, only 3 left!

0

3

MTD KH-25-098-11-S

Starter, Solenoid Shift
(Superseded to KH-25-098-24-S)

$316.99

$

In Stock, Qty 8

0

4

MTD KH-12-081-02

Drive, End Cap

Note: NLA

$

$

Not available

5

MTD KH-52-100-10

Nut, Starter

$

$

Not available

6

MTD KH-12-090-10

Lever, Starter Drive

$

$

Not available

7

MTD KH-24-755-84

Kit, Starter Repair

$

$

Not available

8

MTD KH-52-435-02

Solenoid

$499.99

$

Usually ships in 3-6 days

0

9

MTD KH-52-100-09

Nut, Starter

$

$

Not available

10

MTD KH-12-239-01

Drive, Pinion

$

$

Not available

11

MTD KH-12-170-03

Armature, Starter

$

$

Not available

12

MTD KH-12-471-01

Frame

$

$

Not available

13

MTD KH-52-221-01

Kit, Brush

$

$

Not available

14

MTD KH-52-323-03

Holder, Brush

$

$

Not available

15

MTD KH-52-089-09

Spring, Brush

$

$

Not available

16

MTD KH-52-168-01

Insulator

$

$

Not available

17

MTD KH-52-211-05

Bolt

$

$

Not available

18

MTD KH-12-301-01

Commutator, End

$

$

Not available
