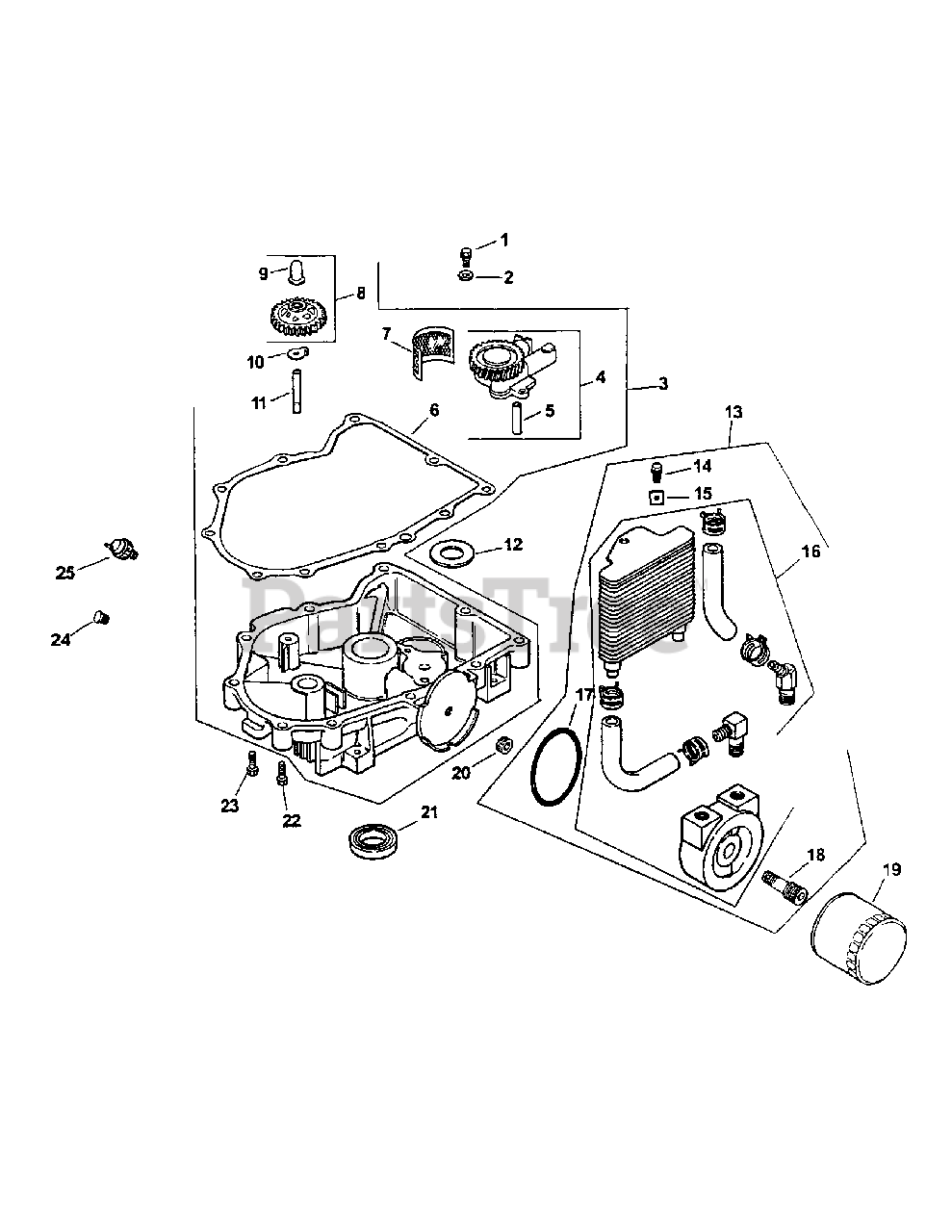

MMZ-2560 - MTD Pro Zero-Turn Mower Kohler Engine Oil Pan & Lubrication Parts Diagram

Pro Zero-Turn Mower

Kohler Engine Oil Pan & Lubrication Parts Diagram

  • Title

1

MTD KH-M-645025-S

Screw, Hex Flange
(Superseded to KH-25-086-395-S)

$2.49

$

In Stock, only 3 left!

0

2

MTD KH-M-631005

Washer, Plain 6mm

$

$

Not available

3

MTD KH-24-755-128-S

Kit, Oil Pan w/Gaskets
(Superseded to KH-24-199-35-S)

$337.99

$

In Stock, only 1 left!

0

4

MTD KH-24-393-53-S

Oil Pump Assembly

$

$

Not available

5

MTD KH-24-123-05

Tube, Oil Pickup
(Superseded to KH-24-381-11-S)

$

$

Not available

6

MTD KH-24-041-54-S

Gasket, Oil Pan
(Superseded to KH-24-041-66-S)

$25.99

$

In Stock, Qty 9

0

7

MTD KH-24-162-26-S

Screen, Oil

$17.99

$

In Stock, only 1 left!

0

8

MTD KH-24-043-12

Kit, Governor Gear

$

$

Not available

9

MTD KH-12-380-01

Pin, Governor Regulating

$

$

Not available

10

MTD KH-24-448-01-S

Tab, Locking

$2.49

$

In Stock, only 2 left!

0

11

MTD KH-12-144-02

Shaft, Governor Gear

$

$

Not available

12

MTD KH-24-422-03-S

Shim, Thrust

$

$

Not available

13

MTD KH-24-755-120-S

Kit, Oil Cooler

$310.99

$

Usually ships in 2-5 days

0

14

MTD KH-24-086-12

Screw, Hex Cap

$

$

Not available

15

MTD KH-25-100-37-S

Nut, Plastic

$2.49

$

In Stock, Qty 9

0

16

MTD KH-24-594-36-S

Oil Cooler - Phenolic

$220.99

$

Usually ships in 2-5 days

0

17

MTD KH-24-153-21-S

O-Ring

$6.49

$

In Stock, Qty 15

0

18

MTD KH-24-136-05-S

Nipple, Oil Filter
(Superseded to KH-24-136-08-S)

$

$

Not available

19

MTD KH-12-050-01-S

Filter, Oil

$13.99

$

In Stock, Qty 20+

0

20

MTD KH-25-139-62-S

Plug, Hex 3/8"

$3.49

$

In Stock, only 2 left!

0

21

MTD KH-25-032-06-S

Seal, Oil (P.T.O. End)

$10.99

$

In Stock, Qty 20+

0

22

MTD KH-24-086-17-S

Screw, Hex Flange

$2.49

$

In Stock, Qty 5

0

23

MTD KH-24-086-17-S

Screw, Hex Flange

$2.49

$

In Stock, Qty 5

0

24

MTD KH-52-139-02

Plug, Hex Head 3/8"

$

$

Not available

25

MTD KH-25-099-27-S

Switch, Oil Pressure

$15.99

$

In Stock, Qty 5

0

MTD KH-25-113-05

Decal, Oil Sentry

Note: NLA

$

$

Not available

MTD KH-24-113-25-S

Decal, Oil Cooler

Note: (not shown)

$

$

Not available
