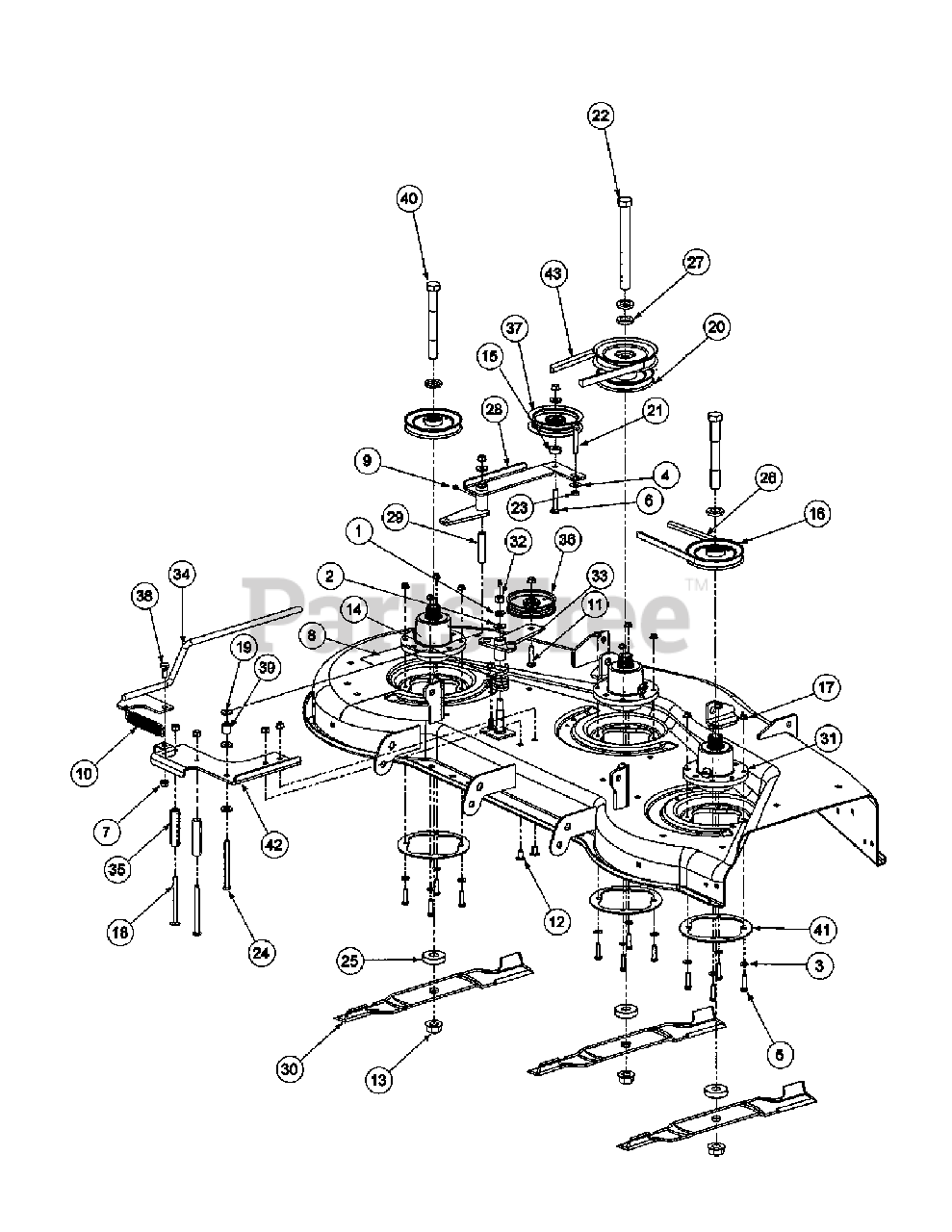

MMZ-2560 - MTD Pro Zero-Turn Mower Deck Spindle Assembly Parts Diagram

Pro Zero-Turn Mower

Deck Spindle Assembly Parts Diagram

  • Title

1

MTD 936-0921

Washer, Lock, 1/2"
(Superseded to 736-0921)

$4.49

$

In Stock, only 2 left!

0

2

MTD 00010958

Washer, Flat, SAE, 1/2

$

$

Not available

3

MTD 00011075

Washer, Flat, 5/16

$4.49

$

Usually ships in 3-6 days

0

4

MTD 936-0169

Lock Washer, SAE, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

5

MTD 00013116

Hex, Cap, Screw, 5/16-18, 1-1/4

$5.99

$

In Stock, only 1 left!

0

6

MTD 00014270

Carriage, Bolt, 3/8-16 x 2
(Superseded to 710-04157)

$8.99

$

In Stock, only 1 left!

0

7

MTD 00022560

Nut, Hex, Flange Lock, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

8

MTD 00030633

Decal, Rotating Blade

$

$

Not available

9

MTD 737-04345

Fitting, Grease, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

10

MTD 01000199

Spring, Extension, 1.0 OD x 5.125"

$17.99

$

In Stock, only 4 left!

0

11

MTD 710-0560

Bolt, Carriage, 3/8-16 x 1.75

$6.99

$

In Stock, Qty 11

0

12

MTD 710-3178

Bolt, Carriage, 3/8-16 x .75"

$4.49

$

In Stock, Qty 20+

0

13

MTD 712-3078

Nut, Hex, Flange Lock, 3/4-16

$9.99

$

In Stock, Qty 20+

0

14

MTD 932-3009

Spring, Idler Torsion

$24.99

$

In Stock, only 4 left!

0

15

MTD 750-3119

Spacer, .406 ID x 1.00 OD x .3

$11.99

$

In Stock, only 4 left!

0

16

MTD 756-3058

Pulley-V, 4.65 P.D.

$

$

Not available

17

MTD 712-3004A

Hexflange, Lock, Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

MTD 01000644

Carriage, Bolt, 3/8-16 x 4.5

$

$

Not available

19

MTD 736-3052

Washer, Flat, .411 x 1.25 x 1.00

$4.49

$

In Stock, Qty 20+

0

20

MTD 01001205

Double, Pulley

$191.99

$

Usually ships in 3-6 days

0

21

MTD 01004990

Belt Retaining Stud, 3/8"

Note: NLA

$

$

Not available

22

MTD 01002074

Screw, Hex, Cap. 3/4-16 x 8.00"
(Superseded to 02001296)

$37.99

$

In Stock, only 1 left!

0

23

MTD 01002511

Nut, Jam, 3/8-16

$5.99

$

Usually ships in 3-6 days

0

24

MTD 710-0944

Hex, Cap, Screw, 3/8-16, 4.50

$10.99

$

In Stock, Qty 12

0

25

MTD 01002564

Spacer, .76 ID x 2.00 OD x .477

$20.99

$

In Stock, only 2 left!

0

26

MTD 01004752

Belt, Blade, 120" Long
(Superseded to 01004752P)

$93.99

$

In Stock, only 4 left!

0

27

MTD 01003123

Spacer, .812 ID x .218 Long
(Superseded to 750-05553)

$9.99

$

In Stock, Qty 20+

0

28

MTD 01005733P

Arm, Idler, Deck Drive

$

$

Not available

28

MTD 01000308

Bearings
(Superseded to 741-04555)

$16.99

$

In Stock, Qty 18

0

29

MTD 01003245

Spacer, .39 ID x .625 OD x 2.75

$18.99

$

In Stock, Qty 11

0

30

MTD 01004719-0637

Blade, 20.5, High Lift

$41.99

$

In Stock, Qty 15

0

31

MTD 01003530P

Spindle Assy, Aluminum, 60 Deck

$389.99

$

Usually ships in 3-6 days

0

32

MTD 912-3066

Nut, Hex, 1/2-20

$6.99

$

In Stock, only 1 left!

0

33

MTD 01003801

Arm Assy, Idler, Bearing 60

Note: NLA

$

$

Not available

33

MTD 01000308

Bearings
(Superseded to 741-04555)

$16.99

$

In Stock, Qty 18

0

34

MTD 01004112

Rod Assy, Mount, Idler Spring

$

$

Not available

35

MTD 01004066

Spacer, .505 x .75 x 3.31

$

$

Not available

36

MTD 02005077

Flat Pulley with Flanges

$35.99

$

In Stock, Qty 20+

0

37

MTD 02004447

Pulley, Idler, Deck Take up

$57.99

$

In Stock, Qty 20+

0

38

MTD 01004118

Bolt, Shoulder, .50 x .27 Long, 3/8-16
(Superseded to 938-0380)

$7.99

$

Usually ships in 3-6 days

0

39

MTD 01004129

Spacer, .38510 x .750D x 1.063

$28.99

$

In Stock, only 1 left!

0

40

MTD 01004185

Hex, Cap, Screw, 3/4-16, 6.50

$41.99

$

In Stock, only 2 left!

0

41

MTD 01004263

Plate, Deck, Reinforcement

$

$

Not available

42

MTD 01004116

Bracket Assy, Mount, 60 Idler Arm

$

$

Not available

43

MTD 01005012

V-Belt PTO, B Section x 84.2 Long
(Superseded to 01005012P)

$97.99

$

In Stock, Qty 6

0

MTD 01004988

Guard-Deck Opening

Note: (not shown)

$

$

Not available

MTD 01001794

Guard-60" Deck Opening

Note: (not shown)

$

$

Not available
