MMZ-2560 - MTD Pro Zero-Turn Mower Cutter Deck Parts Diagram

Pro Zero-Turn Mower

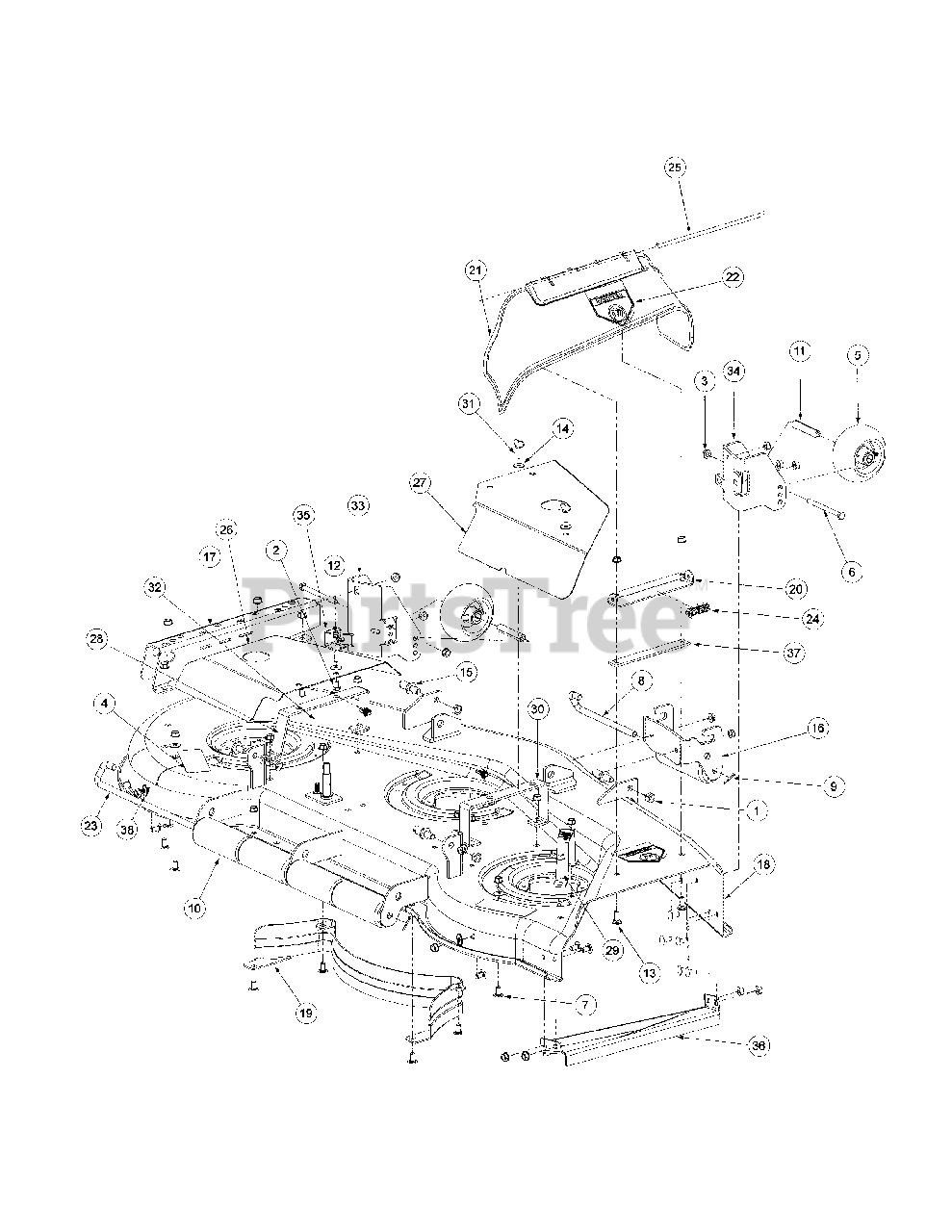

Cutter Deck Parts Diagram

  • Title

1

MTD 00012428

Lock Nut, Nylon Insert, 1/2-13

$6.99

$

In Stock, only 2 left!

0

2

MTD 00013406

Hex, Cap, Screw, 5/16-18 x 3/4
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

3

MTD 00022560

Hex, Nut, Flange Lock 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

4

MTD 00030635

Decal, Warning Shield Missing
(Superseded to 777S33782)

$7.99

$

Usually ships in 3-6 days

0

5

MTD 634-3159

Wheel, Caster, 5.00"

$34.99

$

In Stock, Qty 20+

0

5

MTD 00023806

Grease Fitting
(Superseded to 737-0280)

$7.99

$

In Stock, Qty 8

0

6

MTD 710-0944

Screw, Hex Cap, 3/8-16 x 4.25"

$10.99

$

In Stock, Qty 14

0

7

MTD 710-3178

Carriage, Bolt, 3/8-16 x .75 Long

$4.49

$

In Stock, Qty 20+

0

8

MTD 911-3314

Pin, Roller, 1/2 Dia. x 7.31" Long
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

9

MTD 914-0115

Pin, Cotter, 1/8 x 1.0"
(Superseded to 714-0115)

$3.99

$

In Stock, Qty 20+

0

10

MTD 731-3005

Roller, Front

$28.99

$

In Stock, Qty 20+

0

11

MTD 750-3193

Spacer Wheel

$18.99

$

In Stock, Qty 20+

0

12

MTD 712-3004A

Lock Nut, Hex Flange 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

MTD 01000643

Carriage, Bolt, 3/8-16 x 2

$5.49

$

In Stock, Qty 7

0

14

MTD 936-0425

Washer, Belle, .325 x .930 x .045
(Superseded to 736-0425)

$

$

Not available

15

MTD 01001745

Pin, 5/8 Diameter x 1.2 Long
(Superseded to 711-05604)

$11.99

$

In Stock, Qty 14

0

16

MTD 703-3043A-0637

Front, Roller, Bracket

$69.99

$

Usually ships in 3-6 days

0

17

MTD 01001788

Brace Assembly 60 Deck

$

$

Not available

18

MTD 01001862P

60 Weldment, Housing Deck

$

$

Not available

19

MTD 01005743

Rear, Deck, Baffle,
(Superseded to 703-3248-0637)

$157.99

$

Usually ships in 3-6 days

0

20

MTD 01001800

Chute, Bracket Deflector

$

$

Not available

21

MTD 731-3257

60" Deck, Deflector, Chute

$83.99

$

Usually ships in 3-6 days

0

22

MTD 01002166

Decal, Danger Hands and Feet

$12.99

$

Usually ships in 3-6 days

0

23

MTD 02002799

Roller, Pin
(Superseded to 711-05664)

$22.99

$

In Stock, only 1 left!

0

24

MTD 732-04797

Torsion Spring, 0.4 ID x 2.16 Long

$11.99

$

In Stock, only 4 left!

0

25

MTD 747-3384

Chute, Rod, Deflector

$27.99

$

In Stock, only 1 left!

0

26

MTD 01003390

Belt Cover, Welded, 60 LH

Note: NLA

$

$

Not available

27

MTD 01003391

Belt Cover, 60 Deck, RH

Note: NLA

$

$

Not available

28

MTD 01003401

Support Bracket, 60 LH Belt Cover

$

$

Not available

29

MTD 01003402

Support Bracket, 60 RH Belt Cover

$

$

Not available

30

MTD 01003403

Support Bracket, 60 Center

$

$

Not available

31

MTD 01003560

Screw, Thumb, 5/16-18 x 1.0 Long
(Superseded to 710-3232)

$9.99

$

In Stock, only 2 left!

0

32

MTD 01003563

U Nut, 5/16-18
(Superseded to 926-0211)

$4.49

$

In Stock, only 1 left!

0

33

MTD 01003255

Bracket, Deck, Front LH

$

$

Not available

34

MTD 01003257

Bracket, Deck, Front, RT

$

$

Not available

35

MTD 01004110

Bracket, Stop, Tension Rod

$

$

Not available

36

MTD 01004988

Guard Assembly, Toe

$

$

Not available

37

MTD 01004328

Spacer, Strip, 0.1875 Thick

$

$

Not available

38

MTD 00012158

Washer, Flat, 3/8"

$4.49

$

In Stock, Qty 9

0
