MMZ-2554 - MTD Pro Zero-Turn Mower Kohler Engine Blower Housing And Baffles Parts Diagram

Pro Zero-Turn Mower

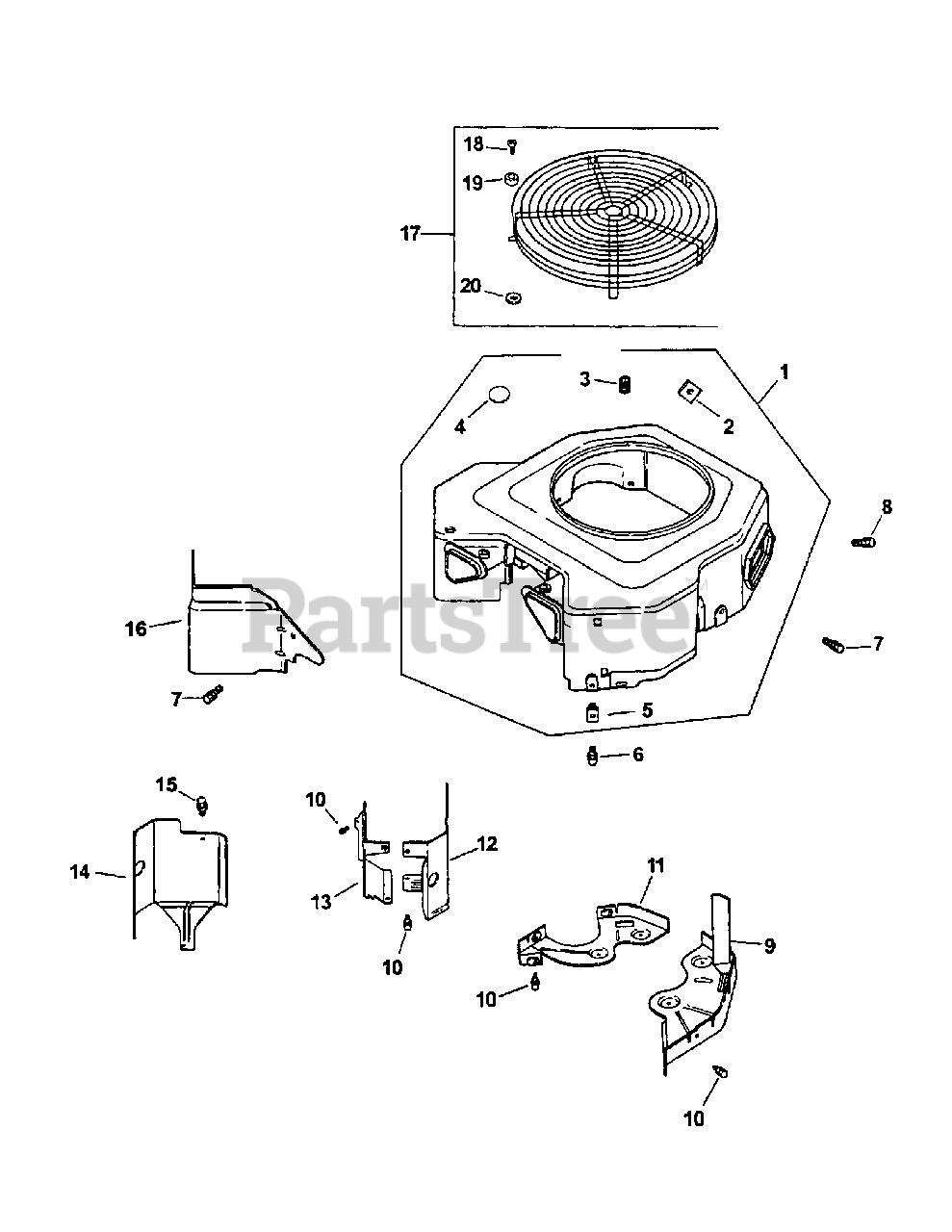

Kohler Engine Blower Housing And Baffles Parts Diagram

  • Title

1

MTD KH-24-027-199-S

Housing, Blower
(Superseded to KH-24-027-494-S)

$165.99

$

Usually ships in 2-5 days

0

2

MTD KH-25-100-37-S

Nut, Plastic

$2.49

$

In Stock, Qty 13

0

3

MTD KH-25-086-43

Screw, Set

$

$

Not available

4

MTD KH-25-139-16

Plug, Button 9/16"

$

$

Not available

5

MTD KH-24-100-02

Nut, Plastic

$

$

Not available

6

MTD KH-M-567020-S

Screw, Hex Flange

Note: NLA

$

$

Not available

7

MTD KH-M-545016-S

Screw, Hex Flange
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

8

MTD KH-M-551016-S

Screw, Hex Flange

$2.49

$

In Stock, only 2 left!

0

9

MTD KH-24-146-19-S

Plate, Backing - #2 Side
(Superseded to KH-24-146-59-S)

$15.99

$

In Stock, only 2 left!

0

10

MTD KH-M-645016-S

Screw, Hex Flange

$3.99

$

In Stock, Qty 15

0

11

MTD KH-24-146-20-S

Plate, Backing - #1 Side

$

$

Not available

12

MTD KH-24-063-88-S

Baffle, Cylinder Barrel - #2 Side

$28.99

$

Usually ships in 2-5 days

0

13

MTD KH-24-063-23-S

Baffle, Valley - #1 Side

Note: NLA

$

$

Not available

14

MTD KH-24-063-31-S

Baffle, Cylinder Barrel - #1 Side

Note: NLA

$

$

Not available

15

MTD KH-M-0545010

Screw, Hex Flange

$

$

Not available

16

MTD KH-24-063-69-S

Baffle, Valley - #2 Side
(Superseded to KH-24-063-94-S)

$9.49

$

Usually ships in 2-5 days

0

17

MTD KH-24-755-94-S

Kit, Guard

$86.99

$

In Stock, only 1 left!

0

18

MTD KH-24-086-39-S

Screw, Pan Head
(Superseded to KH-25-086-160-S)

$2.99

$

In Stock, Qty 14

0

19

MTD KH-24-112-09-S

Spacer
(Superseded to KH-25-112-30-S)

$4.49

$

In Stock, only 1 left!

0

20

MTD KH-24-468-10

Washer, Plain 1/4"

$

$

Not available

MTD KH-24-332-01-S

Insert, Threaded

$

$

Not available

MTD KH-24-113-52-S

Decal, 25 HP

$

$

Not available
