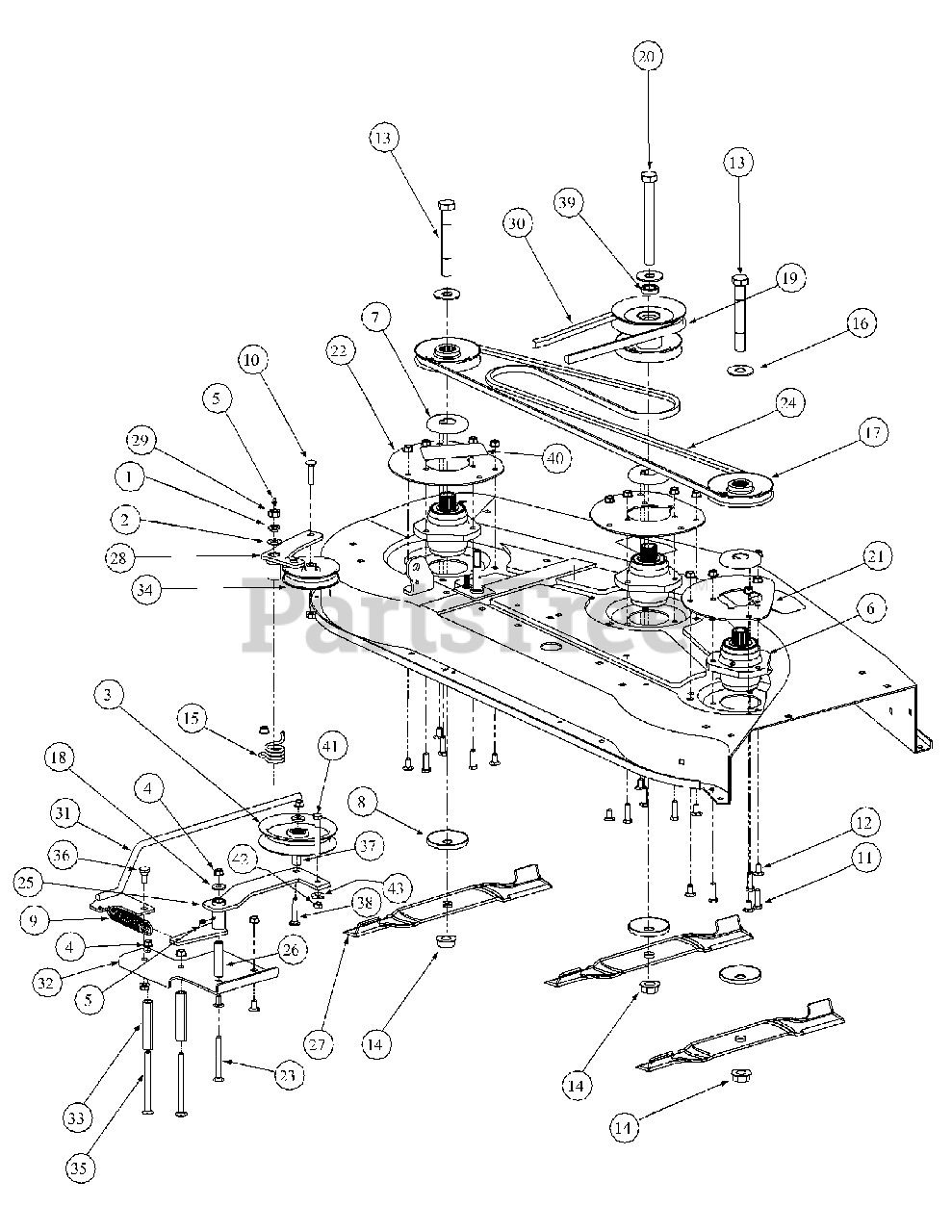

MMZ-2554 - MTD Pro Zero-Turn Mower Float Deck Spindle Assembly Parts Diagram

Pro Zero-Turn Mower

Float Deck Spindle Assembly Parts Diagram

  • Title

1

MTD 936-0921

Lock Washer, 1/2
(Superseded to 736-0921)

$4.49

$

In Stock, only 2 left!

0

2

MTD 00010958

Flat Washer, SAE, 1/2

$

$

Not available

3

MTD 02004447

Idler, Pulley

$57.99

$

In Stock, Qty 20+

0

4

MTD 00022560

Hex Nut, 3/8-16, Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

5

MTD 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

6

MTD 903-0043A

Spindle Assembly, Cast Iron

$

$

Not available

7

MTD 703-2184

Cup, Spindle Top

$11.99

$

Usually ships in 3-6 days

0

8

MTD 703-2185-0637

Cup, Spindle Bottom

$13.99

$

Usually ships in 3-6 days

0

9

MTD 01000199

Extension Spring, 1.0 OD x 5.125

$17.99

$

In Stock, only 4 left!

0

10

MTD 710-0560

Carriage Bolt, 3/8-16, 1.25

$6.99

$

In Stock, Qty 11

0

11

MTD 710-3005

HHCS, 3/8-16, 1.25

$3.99

$

In Stock, Qty 20+

0

12

MTD 710-3178

Carriage Bolt, 3/8 -16 x .75 Long

$4.49

$

In Stock, Qty 20+

0

13

MTD 01000373

HHCS, 3/4-16, 6.00

Note: NLA

$

$

Not available

14

MTD 712-3078

Nut Hex Flange, 3/4-16

$9.99

$

In Stock, Qty 20+

0

15

MTD 932-3009

Spring Idler Torsion

$24.99

$

In Stock, only 4 left!

0

16

MTD 736-3014

Flat Washer, .781 ID, 2.0 OD, .105

$4.49

$

In Stock, only 4 left!

0

17

MTD 756-3058

Pulley-V 4.65 P.D.

$

$

Not available

18

MTD 736-3052

Washer, Flat, .406 ID: 1.0 OD:.105

$4.49

$

In Stock, Qty 20+

0

19

MTD 01000851

Double Pulley

$

$

Not available

20

MTD 01002074

HHCS: 3/4-16, 8.00
(Superseded to 02001296)

$37.99

$

In Stock, only 1 left!

0

21

MTD 01002061

Cover Plate, Right Hand

$

$

Not available

22

MTD 01002062

Cover Plate

$

$

Not available

23

MTD 710-0521

Carriage Bolt, 3/8-16 x 3.5 Long

$5.49

$

In Stock, Qty 11

0

24

MTD 01004752

V-Belt Deck, "A" Sec. x 122" Long
(Superseded to 01004752P)

$93.99

$

In Stock, only 4 left!

0

25

MTD 01005733P

Arm Assembly, Bearing Top Idler

$

$

Not available

25

MTD 01000308

Bearings
(Superseded to 741-04555)

$16.99

$

In Stock, Qty 18

0

26

MTD 01003245

Spacer,.39 ID x .625 OD x 2.7

$18.99

$

In Stock, Qty 11

0

27

MTD 01004720

Blade, 18.5, High Lift
(Superseded to 01004720-0637)

Variations

MTD 01004720-0637

Mower Blade, 18.50" Lg Hi-Lift - POWDER BLACK (0637)

$52.99

$

Usually ships in 3-6 days

0

$52.99

$

Usually ships in 3-6 days

0

28

MTD 01003408

Arm Assembly, Idler, Bearing Mower Deck

Note: NLA

$

$

Not available

28

MTD 01000308

Bearings
(Superseded to 741-04555)

$16.99

$

In Stock, Qty 18

0

29

MTD 912-3066

Hex Nut, 1/2-20

$6.99

$

In Stock, only 1 left!

0

30

MTD 01005011

V-Belt PTO, B Section, x 83.2 Lg.
(Superseded to 01005011P)

$96.99

$

In Stock, only 1 left!

0

31

MTD 01004112

Rod Assembly, Mount, Idler Spring

$

$

Not available

32

MTD 01004114

Bracket Mount, 54 Idler Arm

$

$

Not available

33

MTD 01004065

Spacer, .405 x .75 x 3.875

$

$

Not available

34

MTD 02005077

Idler Pulley, 4.06"

$35.99

$

In Stock, Qty 20+

0

35

MTD 01004117

Carriage Bolt, 3/8-16, 5.00

$

$

Not available

36

MTD 01004118

Shoulder Screw, .50 x .27 Long, 3/8-16
(Superseded to 938-0380)

$7.99

$

In Stock, only 1 left!

0

37

MTD 01004129

Spacer, .385 ID x .75 OD x 1.063

$28.99

$

In Stock, only 1 left!

0

38

MTD 01001928

Carriage Bolt, 3/8-16, 2.50

$

$

Not available

39

MTD 00021925

Spacer, Caster

$16.99

$

In Stock, only 3 left!

0

40

MTD 00030635

Decal, Warning Shield Missing
(Superseded to 777S33782)

$7.99

$

Usually ships in 3-6 days

0

41

MTD 01004990

Belt Retaining Stud, 3/8"

Note: NLA

$

$

Not available

42

MTD 01002511

Nut, Jam, 3/8-16

$5.99

$

Usually ships in 3-6 days

0

43

MTD 936-0169

Lock Washer, SAE, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0
