MMZ-2554 - MTD Pro Zero-Turn Mower Engine Assembly Parts Diagram

Pro Zero-Turn Mower

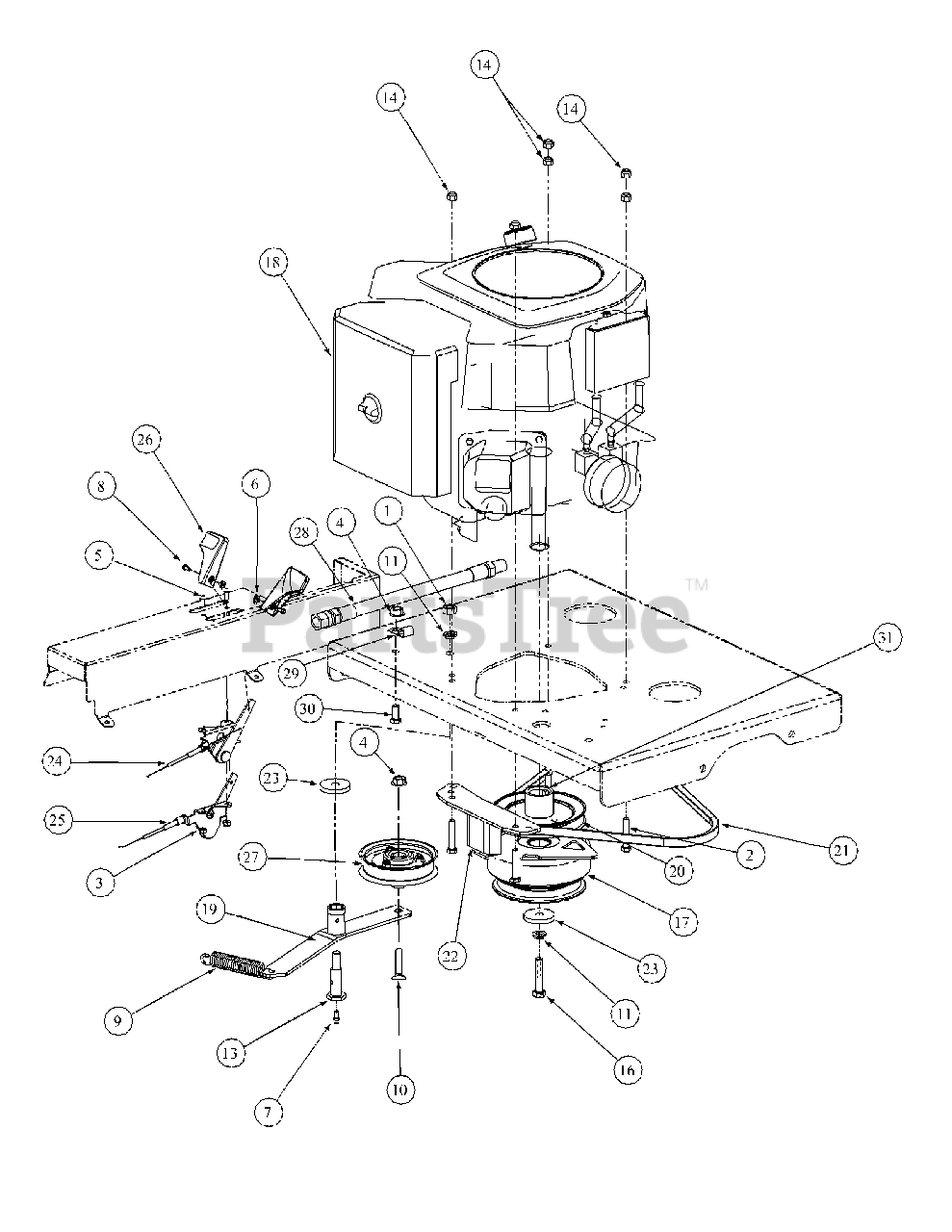

Engine Assembly Parts Diagram

  • Title

1

MTD 912-3019

Hex Nut, 7/16-14
(Superseded to 712-3019)

$6.99

$

In Stock, only 1 left!

0

2

MTD 00006129

HHCS, 5/16-18, 1-3/4

$6.99

$

Usually ships in 3-6 days

0

3

MTD 00014608

Nut, Lock, Nylon Insert, #10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

4

MTD 00022560

Hex Nut, 3/8-16, Range Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

5

MTD 00014602

Screw, Machine 10-32 x 3/4

$

$

Not available

6

MTD 00060056

Nut, Washer, 8-32

$6.99

$

In Stock, only 1 left!

0

7

MTD 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

8

MTD 710-3217

Machine Screw, 8-32, .375

$6.99

$

In Stock, Qty 7

0

9

MTD 01000199

Extension Spring, 1.0 OD x 5.125

$17.99

$

In Stock, only 4 left!

0

10

MTD 710-0560

Screw, 3/8-16, 1.75, Hex Carriage

$6.99

$

In Stock, Qty 11

0

11

MTD 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 5

0

13

MTD 01000302

Shoulder Bolt
(Superseded to 738-3102)

$21.99

$

In Stock, only 1 left!

0

14

MTD 712-3004A

Lock Nut, Hex Flange, 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

MTD 01001082

Capscrew, 7/16-20 x 2"

$6.99

$

Usually ships in 3-6 days

0

17

MTD 01001979P

Clutch, Brake, 1.125" ID

$988.99

$

Usually ships in 3-6 days

0

18

MTD 01002105

Engine 25 HP, Kohler

Note: NLA

$

$

Not available

19

MTD 01005006

Arm Assy Brg Idler Plated

$120.99

$

Usually ships in 3-6 days

0

19

MTD 01000308

Bearing
(Superseded to 741-04555)

$16.99

$

In Stock, Qty 18

0

20

MTD 01002880

Drive Pulley, 5.0 Trans

$101.99

$

In Stock, only 1 left!

0

21

MTD 01005010

V-Belt, A Section x 47.3
(Superseded to 01005010P)

$66.99

$

In Stock, only 2 left!

0

22

MTD 01001655

Retension Assembly, Ogura 1.125 ID Clutch

Note: NLA

$

$

Not available

23

MTD 01003269

Flat Washer, 7/16 ID x 1.75 OD
(Superseded to 736-3082A)

$9.99

$

In Stock, Qty 16

0

24

MTD 01003270

Control Cable, 33.0 Choke

$

$

Not available

25

MTD 01003273P

Control Cable, 45.0 Throttle

$

$

Not available

26

MTD 731-04914

Knob, Throttle Control

$13.99

$

Usually ships in 3-6 days

0

27

MTD 02005077

Pulley, Idler, 4.06"

$35.99

$

In Stock, Qty 20+

0

28

MTD 01003283

Hose, Kohler Oil Drain

$84.99

$

Usually ships in 3-6 days

0

29

MTD 726-3008

Clip, Cable/Hose

$4.99

$

Usually ships in 3-6 days

0

30

MTD 710-0216

HHCS, 3/8-16 x .750

$4.49

$

In Stock, Qty 14

0

31

MTD 00021533

Key, 1/4 x 1/4 x 2-1/2

$22.99

$

Usually ships in 3-6 days

0
