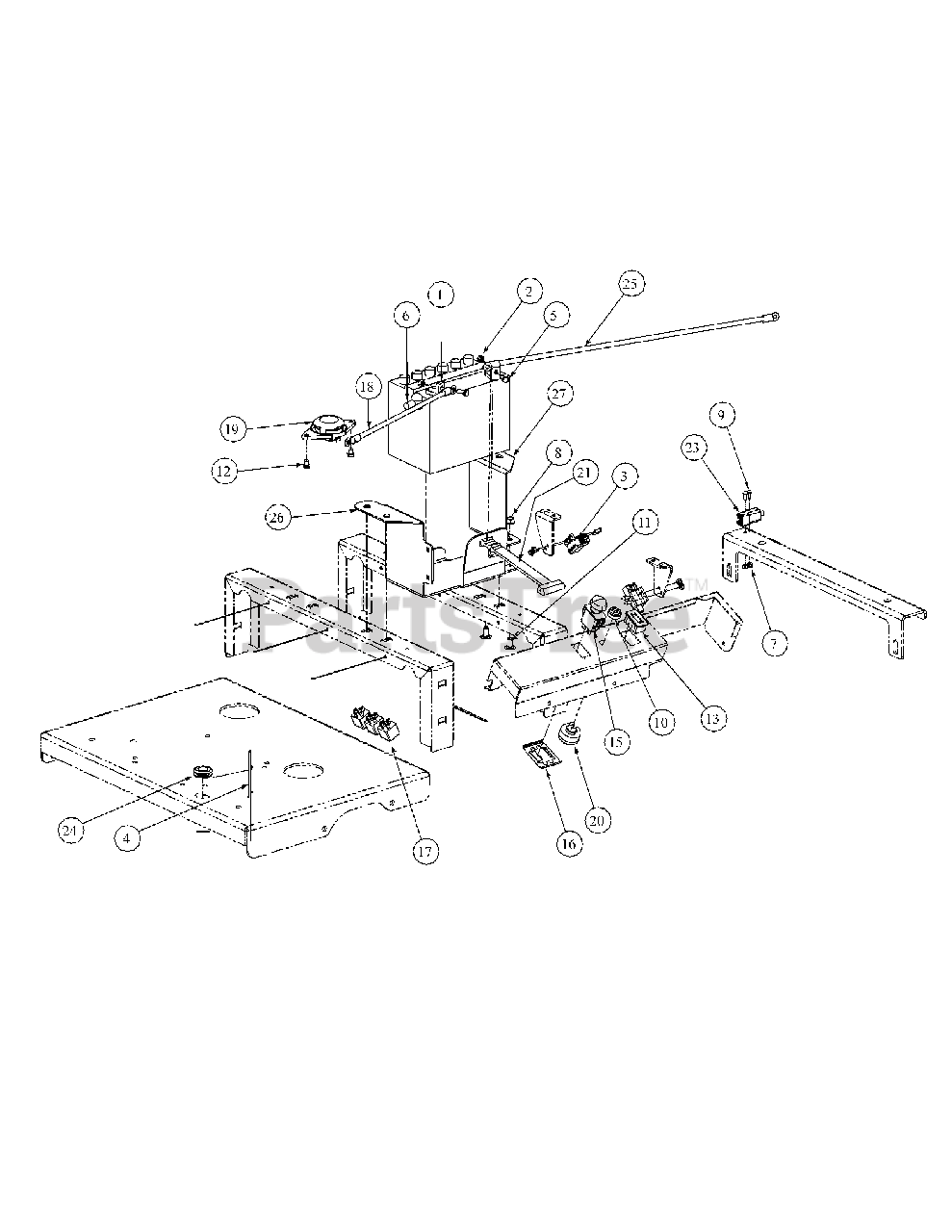

MMZ-2554 - MTD Pro Zero-Turn Mower Electrical Assembly Parts Diagram

Pro Zero-Turn Mower

Electrical Assembly Parts Diagram

  • Title
1

MTD 925-0453G

Battery, 12V 225CCA 30 Min

$

$

Not available

2

MTD 00012152

Lock Nut, Nylon Insert, 1/4-20

$4.49

$

In Stock, only 1 left!

0

3

MTD 00012242

Delta Switch
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 7

0

4

MTD 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

5

MTD 00013131

HHCS, 1/4-20, .75

$6.49

$

In Stock, only 1 left!

0

6

MTD 00013258

Boot, OD Rubber Battery-PST Red

$9.99

$

Usually ships in 3-6 days

0

7

MTD 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

8

MTD 00022560

Hex Nut, 3/8-16 Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

9

MTD 00030906

Phillips Head Screw, Machine, 10-32 x 5/8

$6.99

$

Usually ships in 3-6 days

0

10

MTD 00032097

Nut, W/Cap, 5/8-32 Ignition
(Superseded to 00032097P)

$

$

Not available

11

MTD 710-3178

Carriage Bolt, 3/8-16 x .75 Long

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-0599

Screw, TT, 1/4-20, 0.500, Hex Index Washer

$4.49

$

In Stock, Qty 20+

0

13

MTD 925-04893

Hour Meter
(Superseded to 925-04893A)

$165.99

$

Usually ships in 3-6 days

0

14

MTD 01001811

Harness, Hourmeter
(Superseded to 929-04195)

$8.49

$

Usually ships in 3-6 days

0

15

MTD 01002111

Electric PTO Switch
(Superseded to 925-1716A)

$73.99

$

In Stock, Qty 13

0

16

MTD 783-0462

Bracket, PTO Retainer Switch

$

$

Not available

17

MTD 01002251

Relay, 12V 40A

$57.99

$

In Stock, only 2 left!

0

18

MTD 01002252

Battery Cable Red, 24"

$38.99

$

Usually ships in 3-6 days

0

19

MTD 01003277

Seat Switch

$39.99

$

In Stock, only 1 left!

0

20

MTD 01003581P

Ignition Switch, Pin

$69.99

$

In Stock, Qty 7

0

21

MTD 723-0444

Battery Strap, 400

$22.99

$

Usually ships in 3-6 days

0

21

MTD 01003678P

Harness Assembly

$296.99

$

Usually ships in 3-6 days

0

23

MTD 01003712

Plunger Switch
(Superseded to 725-3223)

$18.99

$

In Stock, only 1 left!

0

24

MTD 01004040

Grommet, .75 ID
(Superseded to 735-04285)

$3.99

$

Usually ships in 3-6 days

0

25

MTD 01004078

Cable Battery Red, 24"

$38.99

$

Usually ships in 3-6 days

0

26

MTD 01004514

Bracket Mount, Battery

$

$

Not available

27

MTD 01004559

Bracket Mount, Battery

$

$

Not available
