MMZ-1848 (53AB555M195) - MTD Pro Zero-Turn Mower Stamped Deck Spindle Assembly Parts Diagram

Pro Zero-Turn Mower

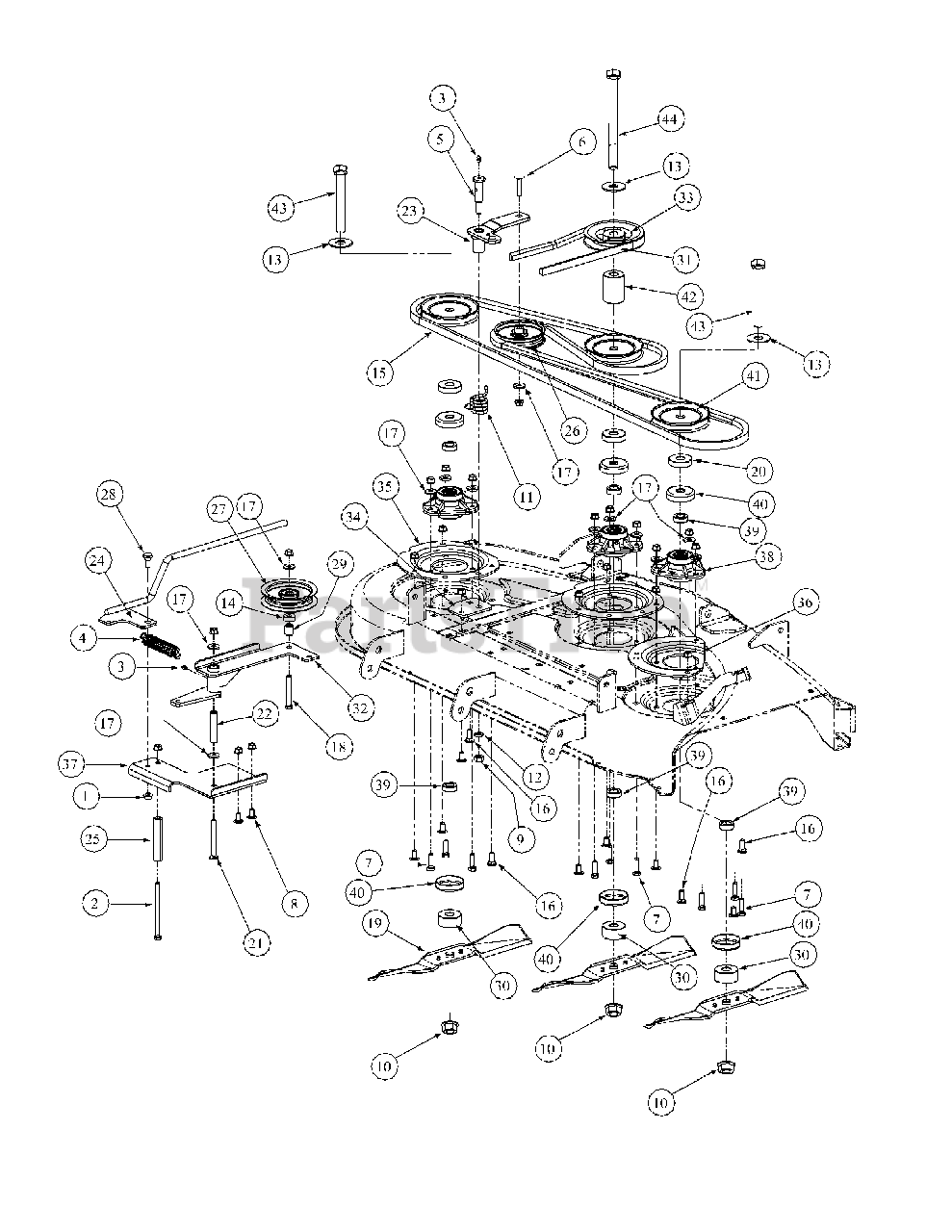

Stamped Deck Spindle Assembly Parts Diagram

  • Title

1

MTD 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

2

MTD 00034167

Hex Capscrew, 3/8-16, 3.75

$

$

Not available

3

MTD 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

4

MTD 01000199

Extension Spring, 1.0 OD x 5.125

$17.99

$

In Stock, only 4 left!

0

5

MTD 01000302

Shoulder Screw, 7/16-14
(Superseded to 738-3102)

$21.99

$

In Stock, only 1 left!

0

6

MTD 710-0560

Hex Carriage Screw, 3/8-16, 1.75

$6.99

$

In Stock, Qty 11

0

7

MTD 710-3005

Hex Cap Screw, 3/8-16, 1.25

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-3178

Carriage Bolt, 3/8-16 x .75 Lg

$4.49

$

In Stock, Qty 20+

0

9

MTD 912-3019

Hex Nut, 7/16-14
(Superseded to 712-3019)

$6.99

$

In Stock, only 1 left!

0

10

MTD 712-3078

Flange Hex Nut, 3/4-16

$9.99

$

In Stock, Qty 20+

0

11

MTD 932-3009

Torsion Idler Spring

$24.99

$

In Stock, only 4 left!

0

12

MTD 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 5

0

13

MTD 736-3014

Flat Washer, .781 ID, 2.00 OD. 105

$4.49

$

In Stock, only 4 left!

0

14

MTD 750-3119

Spacer, .406 ID x 1.00 OD x .38

$11.99

$

In Stock, only 4 left!

0

15

MTD 01000399

Belt, A Section x 107.3

$62.99

$

Usually ships in 3-6 days

0

16

MTD 01000643

Carriage Bolt, 3/8-16 x 1

$5.49

$

In Stock, Qty 7

0

17

MTD 736-3052

Flat Washer, .406 ID, 1.0 OD, .105

$4.49

$

In Stock, Qty 20+

0

18

MTD 710-3022

Hex Capscrew, 3/8-16, 2.75

$4.99

$

In Stock, Qty 7

0

19

MTD 01002072

Mower Blade, 16.5 Lg

$

$

Not available

20

MTD 01002564

Spacer, .76ID x 2.0OD x .477

$20.99

$

In Stock, only 2 left!

0

21

MTD 710-0521

Carriage Bolt, 3/8-16 x 3.5 Lg

$5.49

$

In Stock, Qty 11

0

22

MTD 01003245

Spacer, .39 ID x .625 OD x 2.75

$18.99

$

In Stock, Qty 11

0

23

MTD 01002051

Idler Arm Assembly, Bearing

$

$

Not available

24

MTD 01004112

Idler Spring Rod Assembly

$

$

Not available

25

MTD 01004065

Spacer, .405 x .75 x 3.875

$

$

Not available

26

MTD 02005077

Flat Pulley with Flanges

$35.99

$

In Stock, Qty 20+

0

27

MTD 02004447

Idler Pulley, 4.06 OD with Deep Flange

$57.99

$

In Stock, Qty 20+

0

28

MTD 01004118

Shoulder Screw, .50 x .27 Lg; 3/8-16
(Superseded to 938-0380)

$7.99

$

In Stock, only 1 left!

0

29

MTD 01004129

Spacer, .385 ID x .75 OD x .875

$28.99

$

In Stock, only 1 left!

0

30

MTD 01004415

Spacer, .760 ID x 2.000 OD x 0.9

$40.99

$

Usually ships in 3-6 days

0

31

MTD 01005011

Belt, B Section x 83.2
(Superseded to 01005011P)

$96.99

$

In Stock, only 1 left!

0

32

MTD 01005101

Idler Arm Assembly, Flat Top Bearing

$

$

Not available

33

MTD 01005201

Cast Pulley, 5.25 OD

$130.99

$

Usually ships in 3-6 days

0

34

MTD 01006358

48" Idler Arm Mounting Plate

$

$

Not available

35

MTD 01006439

Disk Reinforcement

Note: NLA

$

$

Not available

36

MTD 01006441

Disk Reinforcement, Right Hand

Note: NLA

$

$

Not available

37

MTD 01006467

48" Idler Arm Mounting Bracket

Note: NLA

$

$

Not available

38

MTD 903-0691P

Bearing Housing Assembly

$183.99

$

In Stock, only 3 left!

0

39

MTD 01006533

Spacer, .76ID x 1.25 OD x .44 Lg

$11.99

$

In Stock, Qty 7

0

40

MTD 01006534

Spindle Cup
(Superseded to 903-1387)

$24.99

$

In Stock, Qty 11

0

41

MTD 956-1209

Pulley, A Sect x 4.90

$60.99

$

In Stock, only 3 left!

0

42

MTD 01006584

Spacer, .765 ID x 1.75 OD x 2.42

$

$

Not available

43

MTD 01006590

Hex Capscrew, 3/4-16, 5.50

$

$

Not available

44

MTD 01006679

Hex Capscrew, 3/4-16, 8.50

$40.99

$

In Stock, only 1 left!

0
