MMZ-1848 (53AB555M195) - MTD Pro Zero-Turn Mower Stamped Deck Parts Diagram

Pro Zero-Turn Mower

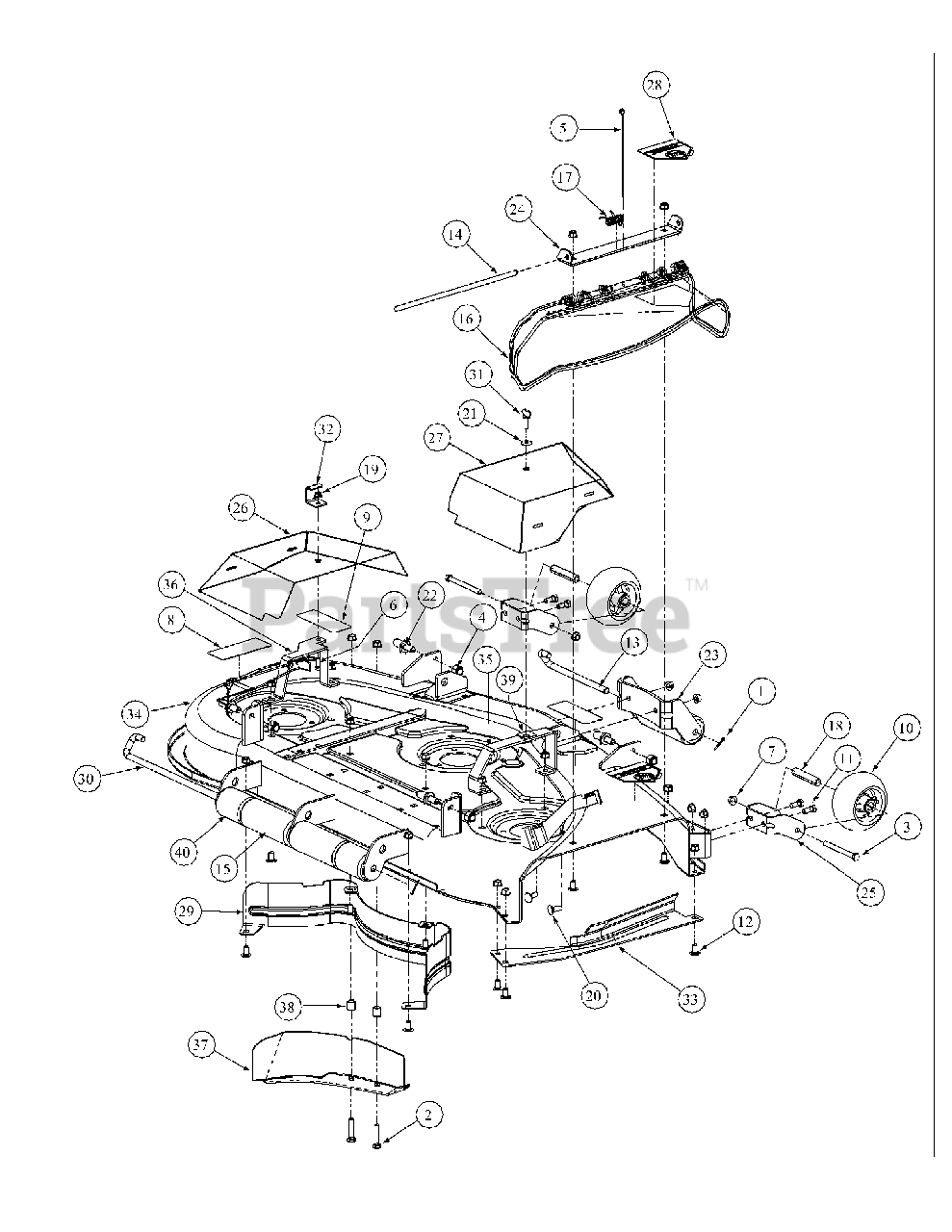

Stamped Deck Parts Diagram

  • Title

1

MTD 00003107

Cotter Pin, .125 Dia x 1.0
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

2

MTD 00008495

Capscrew, 3/8-16 x 1-3/4

$6.99

$

In Stock, Qty 8

0

3

MTD 00011925

Hex Cap Screw, 3/8-16, 3.75
(Superseded to 710-0411)

$8.49

$

In Stock, Qty 17

0

4

MTD 00012428

Lock Nut, Nylon Insert, 1/2-13

$6.99

$

In Stock, only 2 left!

0

5

MTD 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

6

MTD 00013406

Hex Cap Screw, 5/16 -18 x 3/4
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

7

MTD 00022560

Hex Nut Flange Lock, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

8

MTD 00030633

Decal, Rotating Blade

$

$

Not available

9

MTD 00030635

Decal, Warning Shield Missing
(Superseded to 777S33782)

$7.99

$

Usually ships in 3-6 days

0

10

MTD 634-3159

Wheel, 5.00 Dia

$34.99

$

In Stock, Qty 20+

0

11

MTD 710-3001

Hex Cap Screw, 3/8-16 x .75 Lg

$7.49

$

In Stock, Qty 9

0

12

MTD 710-3178

Carriage Bolt, 3/8-16 x .75 Lg

$4.49

$

In Stock, Qty 20+

0

13

MTD 911-3314

Roller Pin, 1/2 Dia x 7.31 Lg
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

14

MTD 711-3318

Hinge Pin, .375 x 12.93

$

$

Not available

15

MTD 731-3005

Front Roller

$28.99

$

In Stock, Qty 20+

0

16

MTD 931-3131A

Deflector Chute

$108.99

$

In Stock, only 4 left!

0

17

MTD 732-3070A

Torsion Spring

$11.99

$

In Stock, only 4 left!

0

18

MTD 750-3193

Spacer Wheel

$18.99

$

In Stock, Qty 20+

0

19

MTD 712-3004A

Hex Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

20

MTD 01000643

Carriage Bolt, 3/8-16 x 1

$5.49

$

In Stock, Qty 7

0

21

MTD 936-0425

Belle Washer, .325 x .930 x .045
(Superseded to 736-0425)

$

$

Not available

22

MTD 01001745

Pin, 5/8 Dia x 1.2 Lg
(Superseded to 711-05604)

$11.99

$

In Stock, Qty 14

0

23

MTD 703-2091A-0637

Front Roller Bracket

$76.99

$

Usually ships in 3-6 days

0

24

MTD 01007393

Chute Mounting Bracket

$

$

Not available

25

MTD 703-2410-0637

Castor Bracket

$

$

Not available

26

MTD 01006579

48" Left Hand Belt Cover

$

$

Not available

27

MTD 01006580

48" Right Hand Belt Cover

Note: NLA

$

$

Not available

28

MTD 01002166

Decal, Danger Hands and Feet

$12.99

$

Usually ships in 3-6 days

0

29

MTD 01007397

48" Right Rear Inner Baffle
(Superseded to 703-2161-0637)

$

$

Not available

30

MTD 02002798

Roller Pin Rod

$79.99

$

In Stock, only 4 left!

0

31

MTD 01003560

Thumb Screw, 5/16-18 x 1.0 Lg
(Superseded to 710-3232)

$9.99

$

In Stock, only 2 left!

0

32

MTD 01004110

Tension Rod Stop Bracket

$

$

Not available

33

MTD 01007398

Finger Guard
(Superseded to 703-3511B-0637)

$69.99

$

In Stock, Qty 20+

0

34

MTD 01006521

48" Stamped Deck

Note: NLA

$

$

Not available

35

MTD 01006489

48" Right Hand Belt Cover Support Bracket

Note: NLA

$

$

Not available

36

MTD 01006491

48" Left Hand Belt Cover Support Bracket

Note: NLA

$

$

Not available

37

MTD 01006529

48" Deck Baffle

$

$

Not available

38

MTD 750-0639

Spacer, .385 ID x .75 OD x .875

$3.49

$

Usually ships in 3-6 days

0

39

MTD 01003563

U-Nut, 5/16-18
(Superseded to 926-0211)

$4.49

$

In Stock, only 1 left!

0

40

MTD 01001169

Short Roller

$24.99

$

In Stock, only 3 left!

0
