MMZ-1848 (53AB555M195) - MTD Pro Zero-Turn Mower Seat Assembly Parts Diagram

Pro Zero-Turn Mower

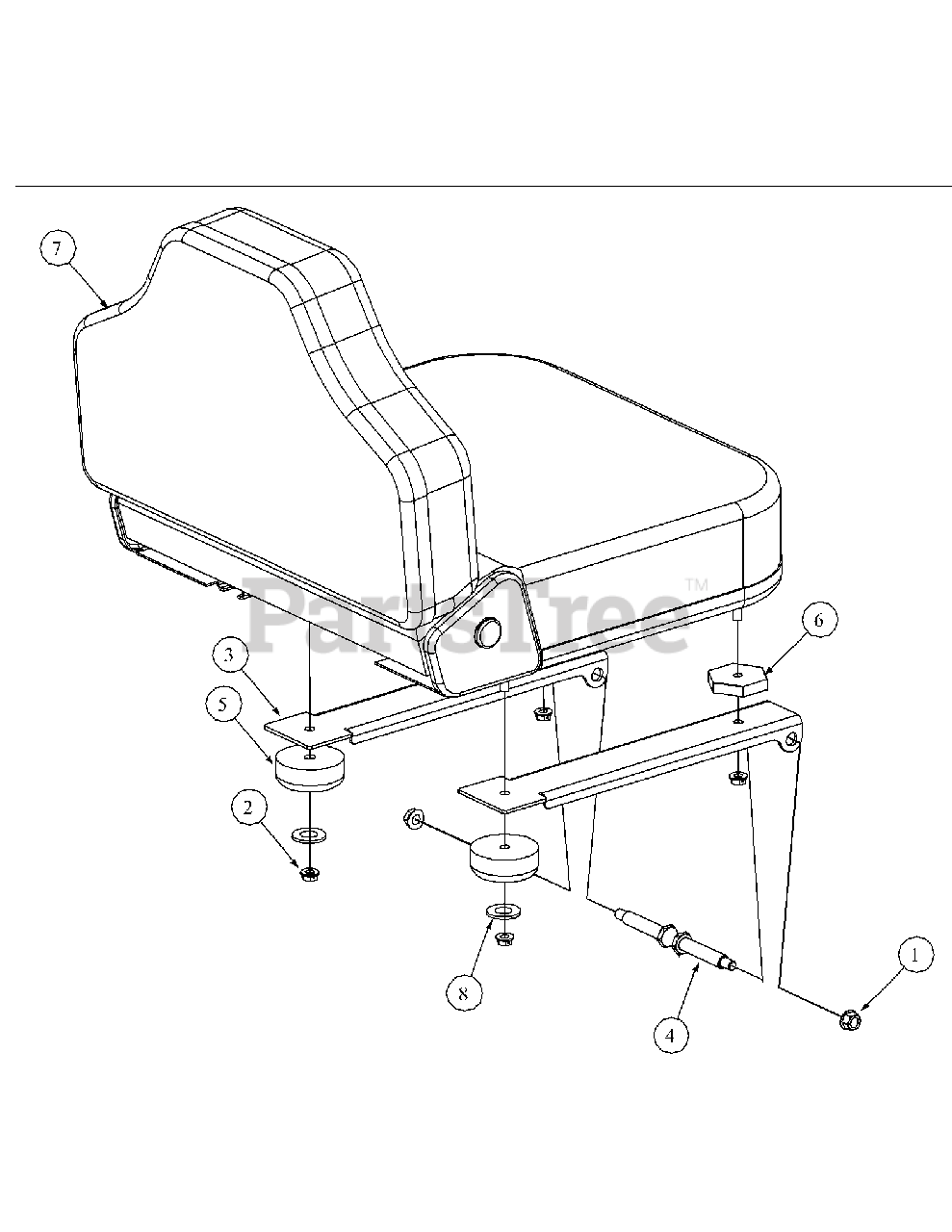

Seat Assembly Parts Diagram

  • Title

1

MTD 00022560

Nut, Hex 3/8-16 Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

2

MTD 712-3004A

Lock Nut, Hex Flange, 5/16-18

$3.99

$

In Stock, Qty 20+

0

3

MTD 01001629

Mounting Bracket, Seat
(Superseded to 01002633-0637)

$48.99

$

Usually ships in 3-6 days

0

4

MTD 01002634

Shoulder Screw, .50 x 2.345, 3/8-16

$25.99

$

Usually ships in 3-6 days

0

5

MTD 01002753

Grommet, 2.5 OD x 1.0 Long
(Superseded to 735-04286)

$8.99

$

In Stock, Qty 14

0

6

MTD 01003820

Spacer, 2.0 Hex x .41 Lg

Note: NLA

$

$

Not available

7

MTD 01006203

Adjustable Seat, Grey

Note: NLA

$

$

Not available

8

MTD 736-3052

Flat Washer, .406 ID, 1.00 OD, .105

$4.49

$

In Stock, Qty 20+

0
