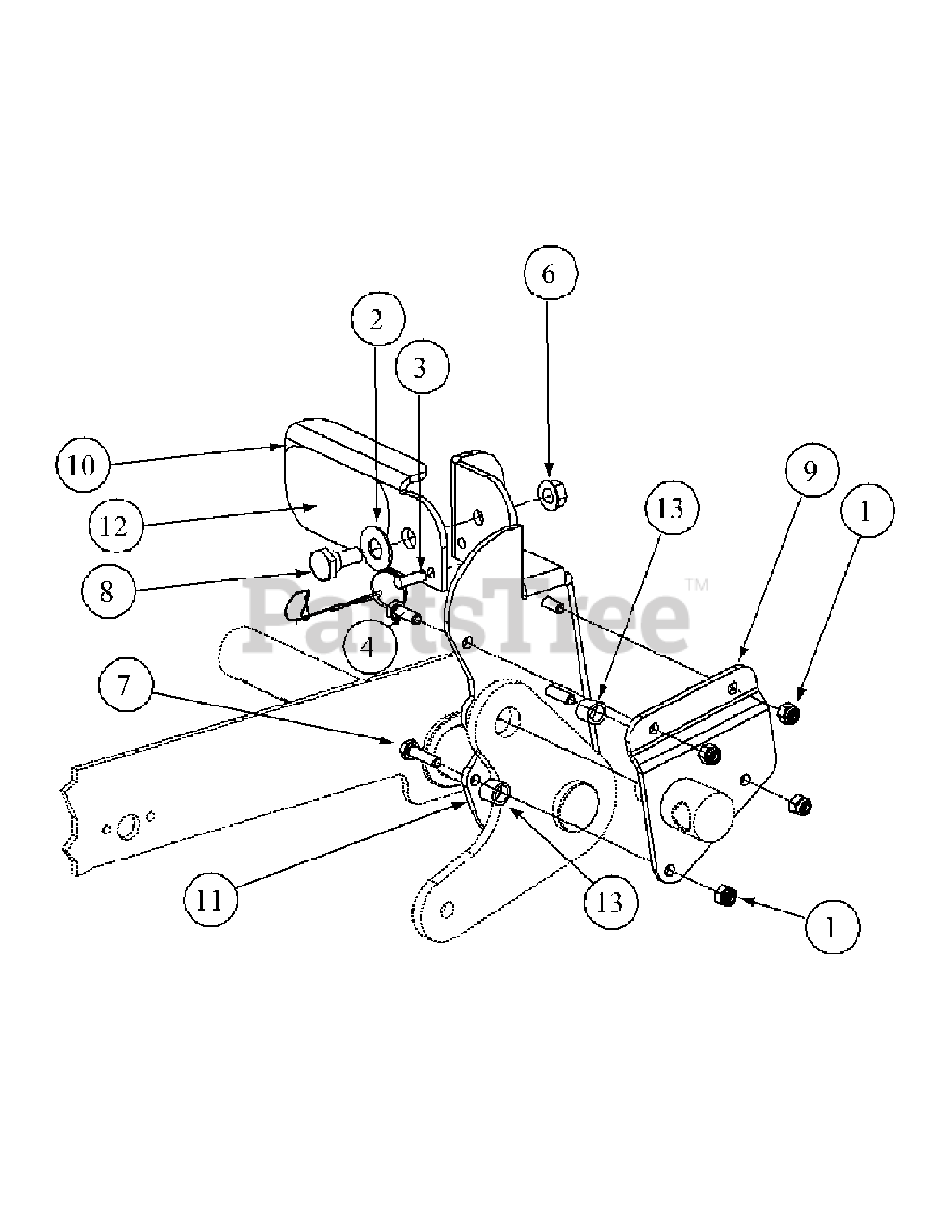

MMZ-1848 (53AB555M195) - MTD Pro Zero-Turn Mower Optional Foot Pedal Deck Lift Parts Diagram

Pro Zero-Turn Mower

Optional Foot Pedal Deck Lift Parts Diagram

  • Title
1

MTD 00012152

Lock Nut, Nylon Insert, 1/4-20

$4.49

$

In Stock, only 1 left!

0

2

MTD 00012577

Washer, 1/2 x 1 Shim

$5.49

$

In Stock, Qty 10

0

3

MTD 01006786

Detent Pin w/Lanyard, 1/4"

$

$

Not available

4

MTD 00013131

Hex Cap Screw, 1/4-20, .75

$6.49

$

In Stock, only 1 left!

0

6

MTD 00022560

Hex Nut, Flange Lock 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

7

MTD 01000944

Hex Cap Screw, 1/4-20, 1.00

$6.49

$

Usually ships in 3-6 days

0

8

MTD 01004118

Shoulder Screw, .50x.27 Lg., 3/8-16
(Superseded to 938-0380)

$7.99

$

In Stock, only 1 left!

0

9

MTD 01006409

Foot Lift Backup Pedal

$25.99

$

Usually ships in 3-6 days

0

10

MTD 01006352

Deck Foot Pedal Lift

$36.99

$

Usually ships in 3-6 days

0

11

MTD 01006411

Deck Foot Pedal Lift Holder

$

$

Not available

12

MTD 01006418

Deck Foot Lift Pad

$

$

Not available

13

MTD 00062715

Turnbuckle Sleeve

$18.99

$

In Stock, only 1 left!

0
