MMZ-1848 (53AB555M195) - MTD Pro Zero-Turn Mower Lift Assembly Parts Diagram

Pro Zero-Turn Mower

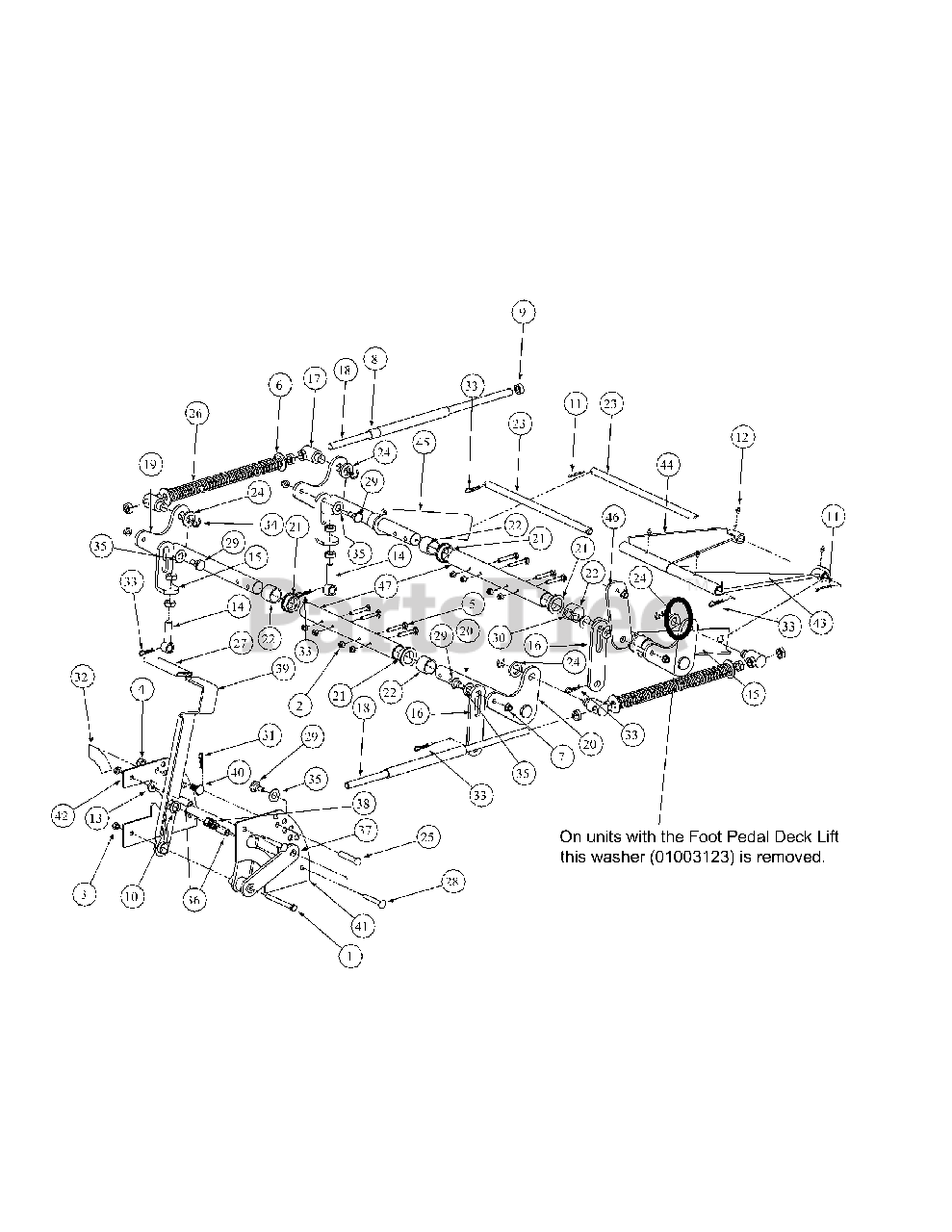

Lift Assembly Parts Diagram

  • Title

1

MTD 00011925

Hex Cap Screw, 3/8-16, 3.75
(Superseded to 710-0411)

$8.49

$

In Stock, Qty 17

0

2

MTD 00012165

Nut, 5/16-18, Nylock

$4.99

$

In Stock, only 1 left!

0

3

MTD 712-04065

Nylock Insert Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

4

MTD 00012428

Nylock Insert Lock Nut, 1/2-13

$6.99

$

In Stock, only 2 left!

0

5

MTD 00013198

Hex Cap Screw, 5/16-18 x 2
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0

6

MTD 00013432

Flat Washer, 5/8

$8.49

$

In Stock, Qty 7

0

7

MTD 00022560

Hex Nut, Flange Lock, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

8

MTD 00030918

PVC Hose, 5/8

$

$

Not available

9

MTD 912-3015

Jam Nut, 5/8-11
(Superseded to 712-3015)

$4.99

$

In Stock, Qty 20+

0

10

MTD 00060017

Flat Washer, .06, .776, 1.25
(Superseded to 736-05151)

$4.49

$

In Stock, only 2 left!

0

11

MTD 00060018

Cotter Pin, 3/16 x 1-1

$3.99

$

Usually ships in 3-6 days

0

12

MTD 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

13

MTD 00083192

Idler Washer
(Superseded to 736-0258)

$4.49

$

In Stock, only 2 left!

0

14

MTD 01001744

Eye Bolt, 5/8ID
(Superseded to 710-05355)

$17.99

$

In Stock, only 2 left!

0

15

MTD 01003541

Eye Bolt Mount Link, 5/8 ID

$

$

Not available

16

MTD 02000562

Deck Link

$

$

Not available

17

MTD 01001855

Ferule Lift

$62.99

$

In Stock, only 1 left!

0

18

MTD 01001857

Lift Connector Rod

$46.99

$

Usually ships in 3-6 days

0

19

MTD 01003545

Bellecrank Weldment Lift, Left Hand

Note: NLA

$

$

Not available

20

MTD 01003546

Bellecrank Weldment Lift, Right Hand

$

$

Not available

21

MTD 01001930

Hex Flange Bearing, 1.25 ID

$19.99

$

Usually ships in 3-6 days

0

22

MTD 01001973

Frame Lift Spacer

$

$

Not available

23

MTD 01002586

Front Lift Link, Rod Mount

$46.99

$

In Stock, only 3 left!

0

24

MTD 01003123

Spacer, .812 ID x .268 Lg.
(Superseded to 750-05553)

$9.99

$

In Stock, Qty 20+

0

25

MTD 01003284

Clevis Pin, .500 Dia. x 2.625 Lg.

$

$

Not available

26

MTD 01003318

Lift Compression Spring

$

$

Not available

27

MTD 01003477

Lift Handle Grip

$

$

Not available

28

MTD 01003534

Carriage Bolt, 3/8-16, 2.75

$

$

Not available

29

MTD 01003535

Shoulder Screw, 0.625 OD x .437 Lg.

$28.99

$

In Stock, only 2 left!

0

30

MTD 01003536

Shoulder Screw, 0.625 OD x .830 Lg.
(Superseded to 738-05007)

$8.99

$

In Stock, only 4 left!

0

31

MTD 01003537

Cotter Pin, .148 x 3.00

$

$

Not available

32

MTD 01006536

Decal Height Indicator

$

$

Not available

33

MTD 01003993

Cotter Pin
(Superseded to 753-04070)

$9.99

$

In Stock, Qty 20+

0

34

MTD 01003994

E Clip, 3/4 Dia.

$6.99

$

Usually ships in 3-6 days

0

35

MTD 01004003

Nylon Flat Washer, 5/8
(Superseded to 736-04602)

$3.99

$

In Stock, Qty 20+

0

36

MTD 01004080

Spacer, .39 ID x .63 OD x 1.442

$18.99

$

In Stock, only 1 left!

0

37

MTD 01004969

Lift Pivot Assembly

$166.99

$

Usually ships in 3-6 days

0

38

MTD 01004971

Lift Handle Spring

$13.99

$

Usually ships in 3-6 days

0

39

MTD 01004973

Lift Handle Assembly

Note: NLA

$

$

Not available

40

MTD 01004984

Shoulder Screw, 5/8 OD x 0.264

$

$

Not available

41

MTD 01006512

Outer Lift Index Plate

$

$

Not available

42

MTD 01006515

Inner Lift Index Plate

Note: NLA

$

$

Not available

43

MTD 01001738

Bearing Lift Brace Assembly, Right Hand

$180.99

$

Usually ships in 3-6 days

0

44

MTD 01003991

Bearing Lift Brace Assembly, Left Hand

$173.99

$

Usually ships in 3-6 days

0

45

MTD 02005223-0637

Front Frame Strut Assembly

$51.99

$

Usually ships in 3-6 days

0

46

MTD 01003551

Lift Link Adjustment

Note: NLA

$

$

Not available

47

MTD 01004638

Lift Shaft Holder

$

$

Not available
